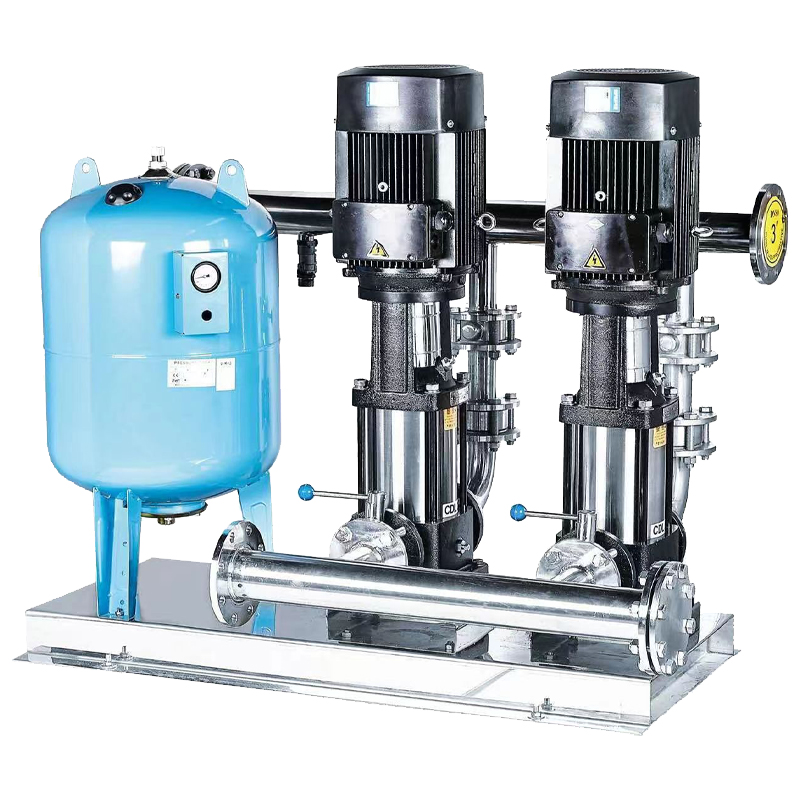

Stainless steel Water Supply System with pressure tank
Add to My Favorite List
- DN Range of Suction Pipe: 25-100 mm (1"-4")
- DN Range of Discharing Pipe: 25-100 mm (1"-4")
- Flow Capacity Range: 0-4750 GPM
- Head/Pressure Range: 1-33 Bar
- Power Range: 0.75-100 kW

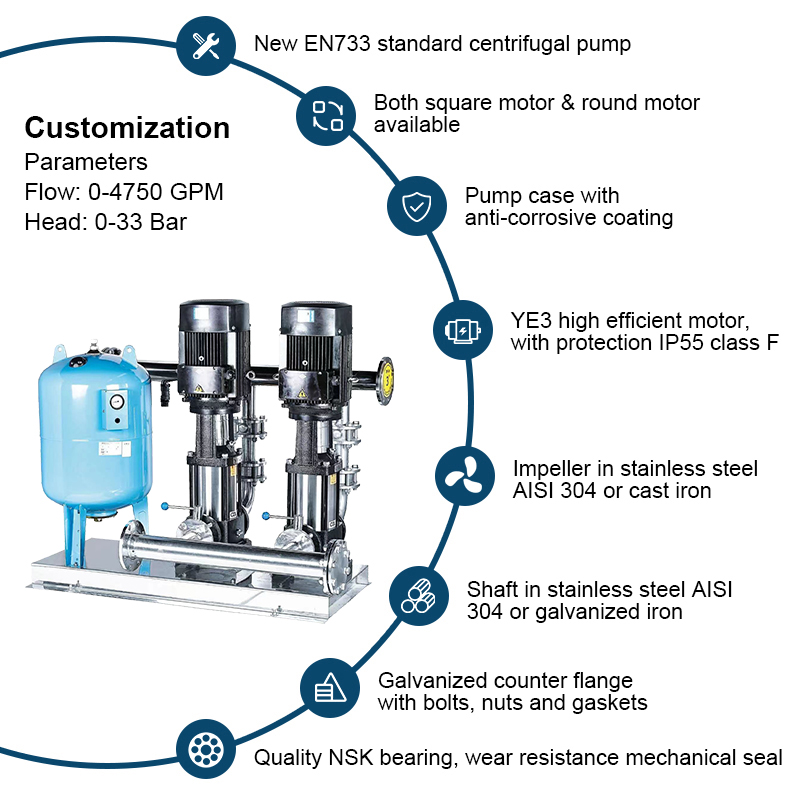

- The main pump can be vertical multi-stage pump or a horizontal booster pump with stainless steel, cast iron and bronze material in standard configurations.
- Each component is mounted on a stainless steel base. Butterfly valves, check valves, flexible joints, pressure switches and pressure gauges are installed on their respective pipelines. If necessary, additional pipes, pressure tanks, valves and sensing lines can be used.
- The electric pump is coupled with YE3 high efficient motor with protection IP55 class F,and both square motor & round motor available, anti-corrosive coating pump case, quality NSK bearings, and wear resistance mechanical seal. Cast iron, brass and stainless steel impellers are all available.
- The pump could delivery water or liquid that physical and chemical similar to water.Liquid temperature shall not higher than 120 ºC.Ambient temperature is between-10°C and +50°C.The max. working pressure is 16 bar.
- The water supply system has many advantages such as energy saving, pollution-free, small area, quick installation, reliable operation, and convenient maintenance. It is widely used in high-level and high-pressure water supply, fire water supply, domestic water, municipal water supply, urban environmental protection, etc.
- Product Details
- 50Hz product parameter
- 60Hz product parameter
Question ：What is your payment terms?
Answer ：30%T/T, L/C,West Union, .etc.
Question：Do u have your own designers and engineers?
Answer：We are professional water supply system manufacturer.
Question：How long is your warranty?
Answer：1 years after buying our pump.
Question: Is OEM acceptable?
Answer：Yes, please contact us for design details.we will offer you a reasonable price and make samples for you ASAP.
Question: Which materials of this product are stainless steel
Answer：Impeller/shaft/cylinder/coupling/mechanical seal /seal base/top diffuser/diffuser/support diffuser/inducer are stainless steel.Inlet and outlet chamber can be cast iron or SS304
Question:How can I get the price ?
Answer：Pls let us know power,flow capacity ,head and quantity,we can give u price according to your requiremnt
