PC series thread port Booster Clean Water Close Coupling centrifugal Pump
Add to My Favorite List
- DN Range of Suction Pipe: 50-100 mm (2"-4")
- DN Range of Discharing Pipe: 50-100 mm (2"-4")
- Flow Capacity Range: 0-450 GPM
- Head/Pressure Range: 1-6 Bar
- Power Range:0.75-18.5kw
- The electric pump is composed of three parts: motor, connection and water pump. The pump case with high-strength alloy steel HT500 enhances the service life of the water pump.
- The centrifugal monoblock pump can be installed on a steel base or connected with the controller according to the customer's requirements. Additional piping, pressure tanks, valves and sensing lines can also be provided.

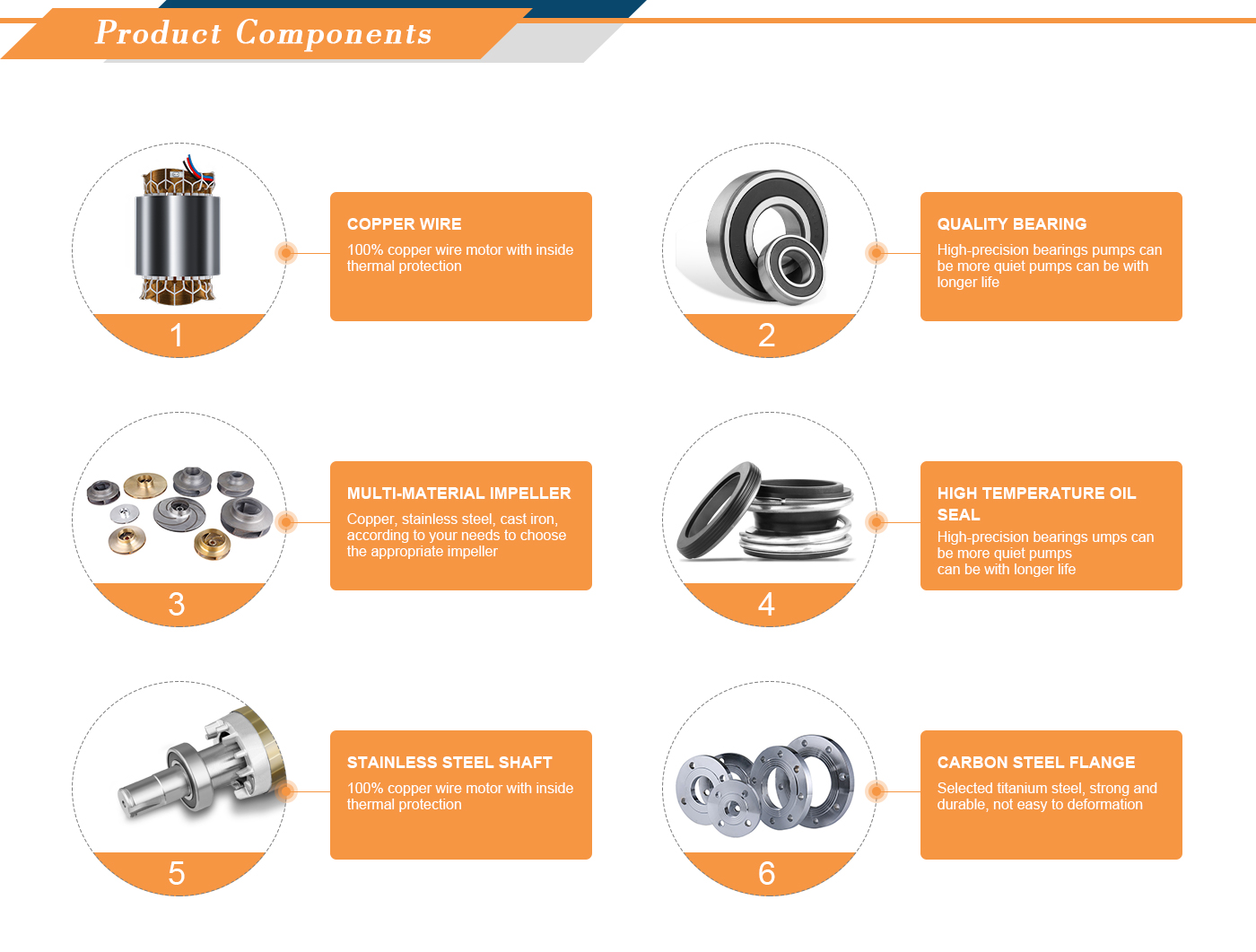

- The electric pump is coupled with YE3 high efficient motor with protection IP55 class F,and both square motor & round motor available, anti-corrosive coating pump case, quality NSK bearings, and wear resistance mechanical seal. Cast iron, brass and stainless steel impellers are all available.
- The pump could delivery water or liquid that physical and chemical similar to water.Liquid temperature shall not higher than 120 ºC.Ambient temperature is between-10°C and +50°C
- The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation,drawing water from lakes, rivers and well, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required. Suitable for use in civil and agricultural applications.
- Product Details
- 50Hz product parameter
- 60Hz product parameter
Question ：What is your payment terms?
Answer ：30%T/T, L/C,West Union, .etc.
Question：Do u have your own designers and engineers?
Answer：We are professionalthread port centrifugal pump manufacturer.
Question：How long is your warranty?
Answer：3 years after buying our pump.
Question: What are the impeller materials of close coupled centrifugal pumps
Answer：Cast iron, Brass or AISI 304
Question: What is the shaft material?
Answer： 45#steel or AISI 304,according to customer requirements
Question:How can I get the price ?
Answer：Pls let us know power,flow capacity ,head and quantity,we can give u price according to your requiremnt
