WQV series vortex cutting submersible pump

DN Range of Discharing Pipe: 40-250 mm (1.6"-10")
Flow Capacity Range: 0-1000 m3/h
Head/Pressure Range: 1-38M
Power Range: 0.75-30kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

submersible sewage cutter pump is equipped with vortex alloy impeller with 48HR(hardness),which have better hydraulic characteristics.
The electric pump is coupled with YE3 high efficient motor with protection IP68 class F,anti-corrosive coating pump case, quality NSK bearings, impeller in two vanes,non-clogging,close but big fluid channels and discharge port with bolts,nuts and gastkets.
The pump could delivery water with temperature not higher than 40 ºC. 10 meter is the maximum immersion depth.The solids passage is from 25mm to 75mm.
This submersible sewage cutter pump can be used for evacuation of civil and industrial waste waters,generally moving foul waste liquids also containing solid substances and suspended filamentary substances.

Product Details

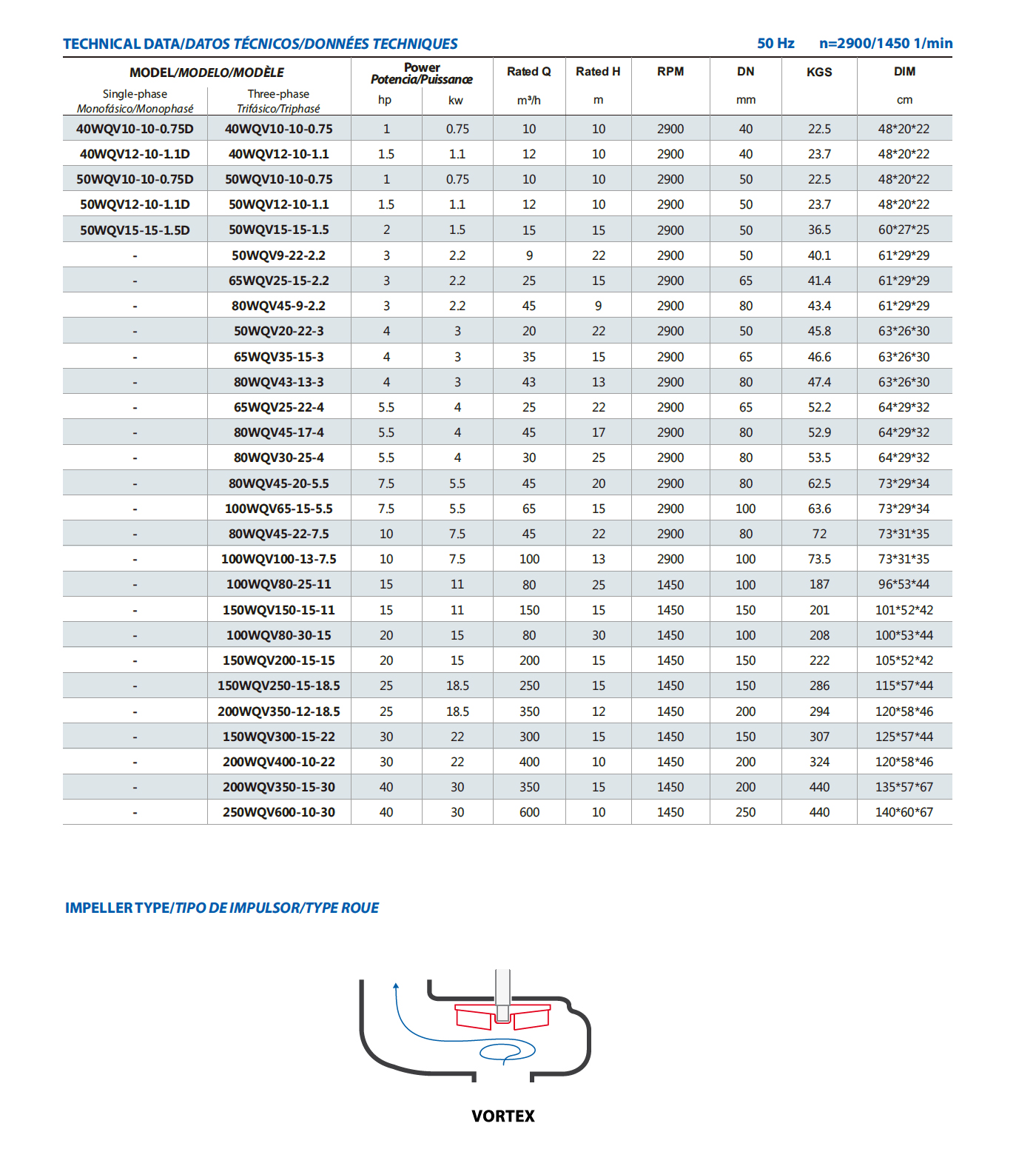

50Hz product parameter
60Hz product parameter
Videos
Q&A

WQV series of submersible sewage cutter pump is a new generation of products equipped with vortex alloy impeller with 48HR(hardness).The pump is better hydraulic characteristics and casing resistant to abrasion and long-lasting.Especially suitable for transmission the liquids that contain solid and fiber matters, and dirty, stick slippery liquid. With the cutting device installed inside in advance, it can run more smoothly and reliable in waste water, without being blocked.

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced WQV series vortex cutting submersible pump suppliers and wholesale WQV series vortex cutting submersible pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
