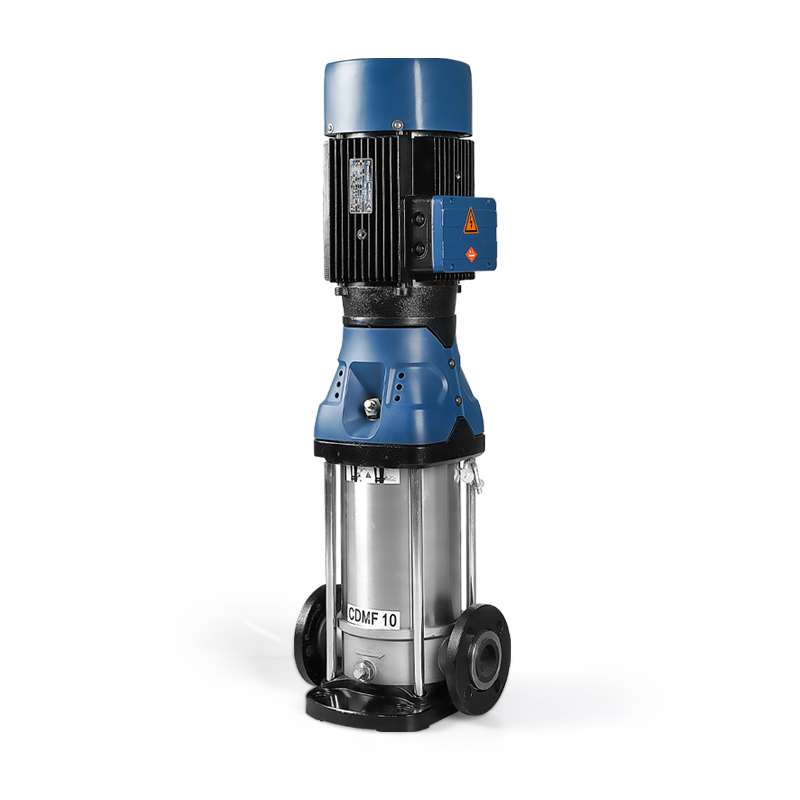

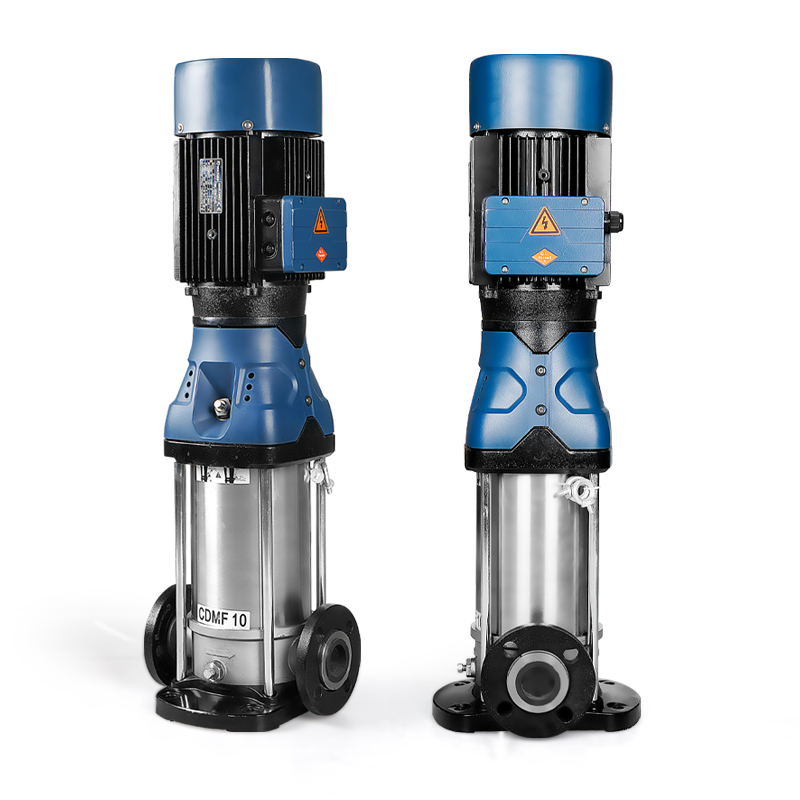

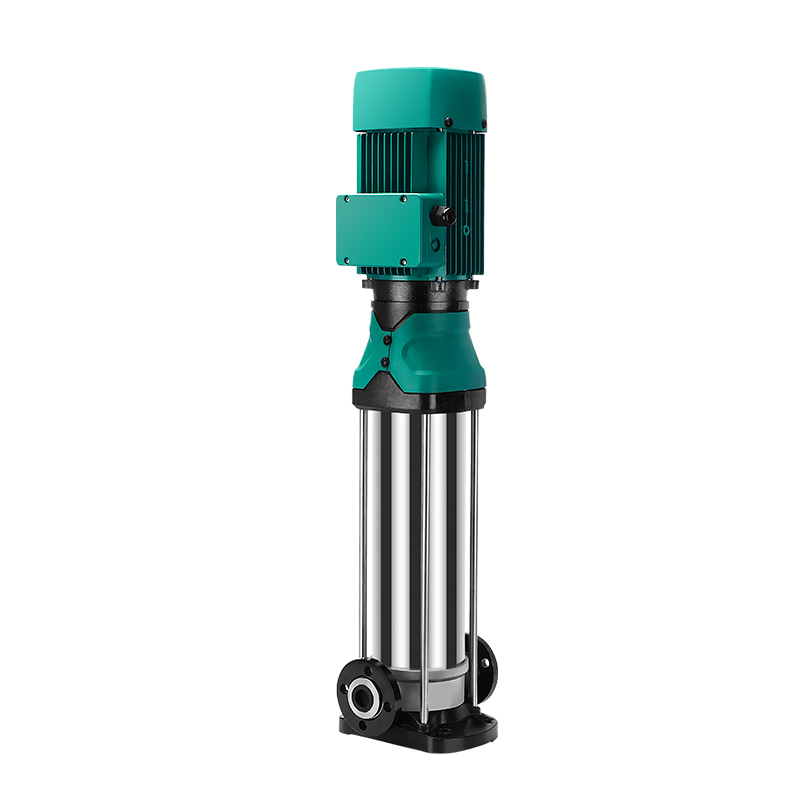

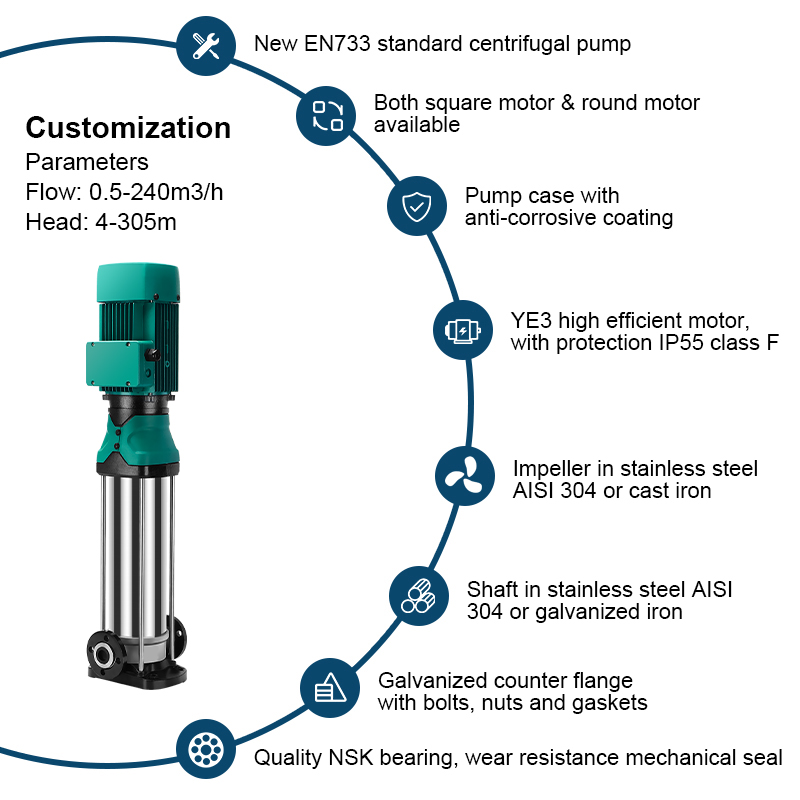

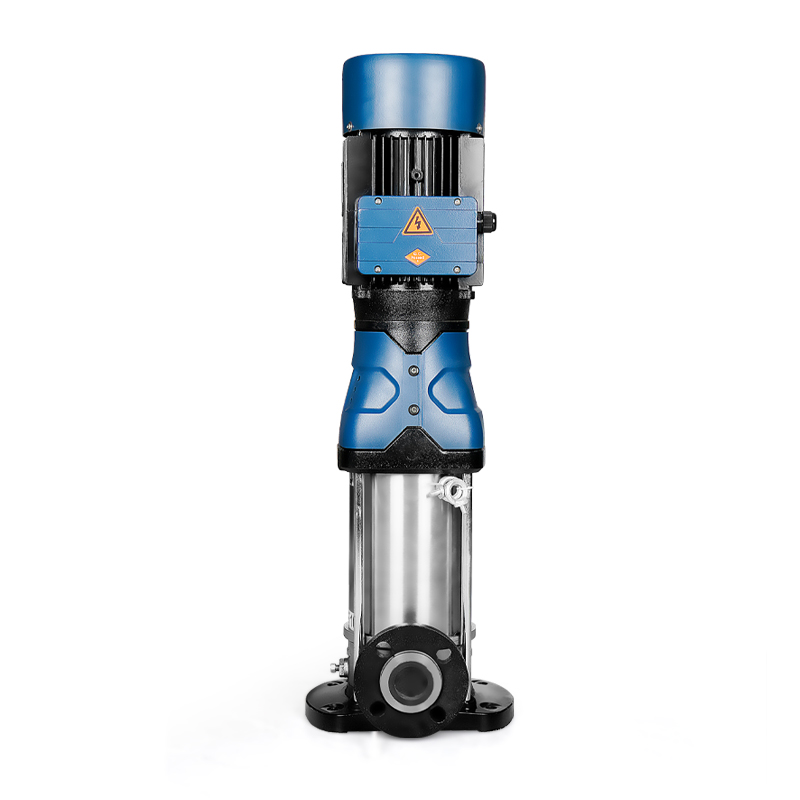

CDM High efficient Light Vertical Multistage Centrifugal Pump

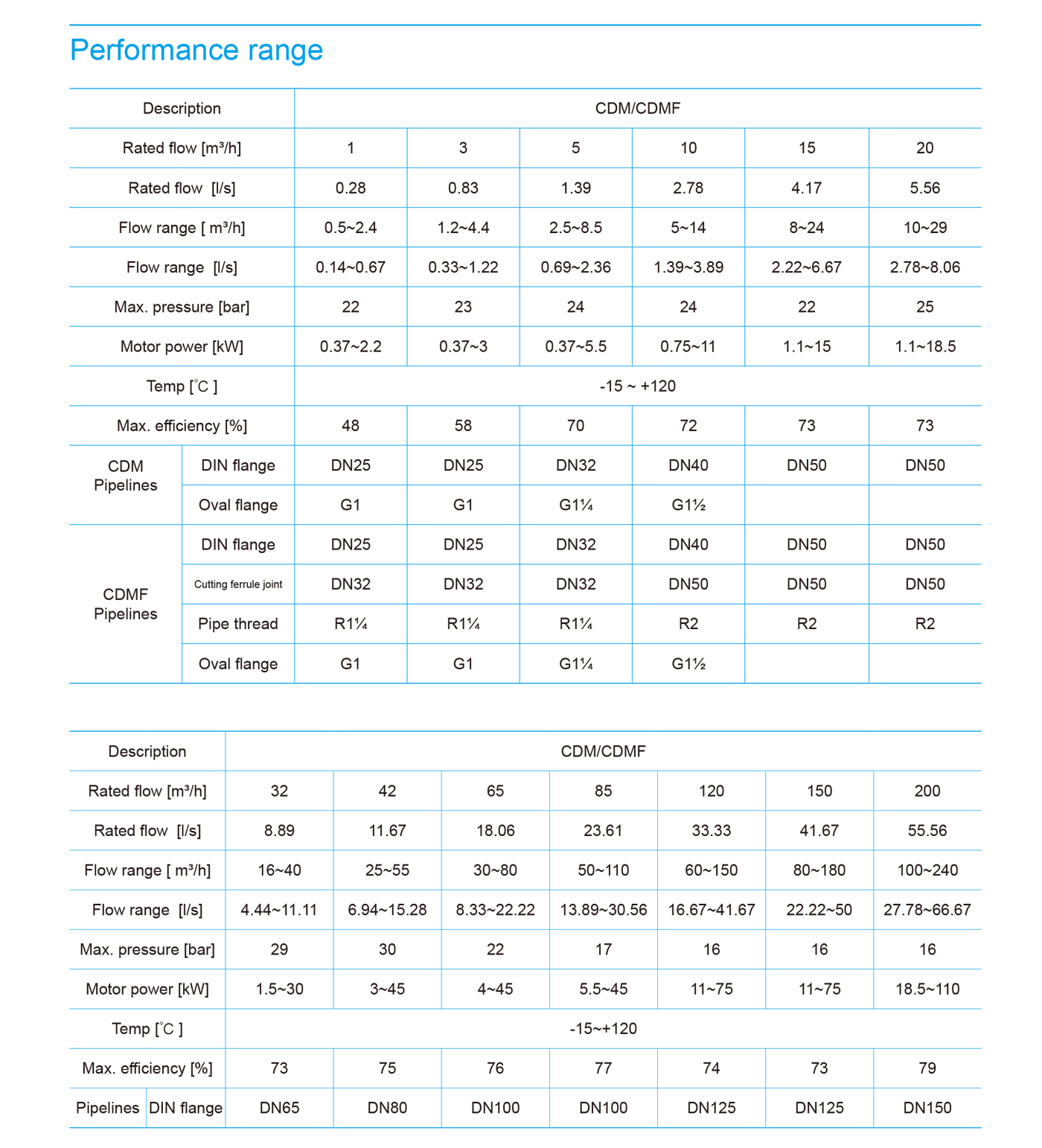

• DN Suction size: 25-150 mm (1"-6")
• DN Discharge size: 25-150 mm (1"-6")
• Flow Capacity Range: 0.5-240m3/h

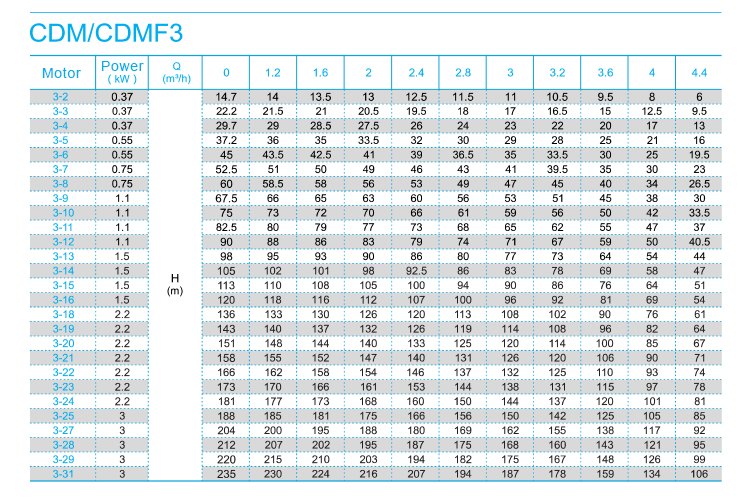

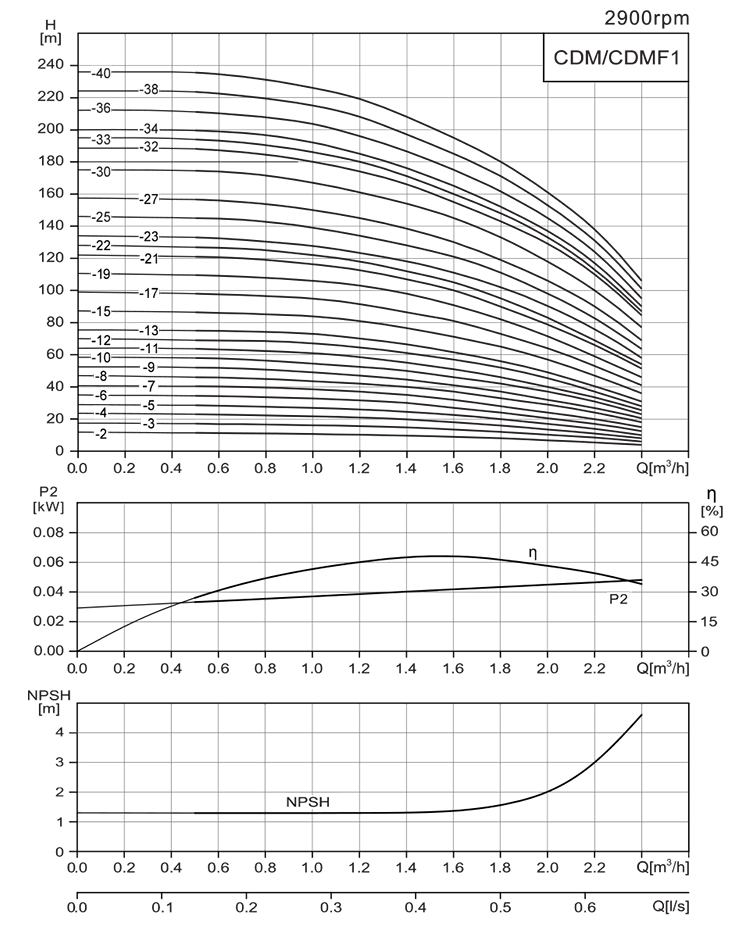

• Head/Pressure Range: 4-305m
• Power Range: 0.37-110kw

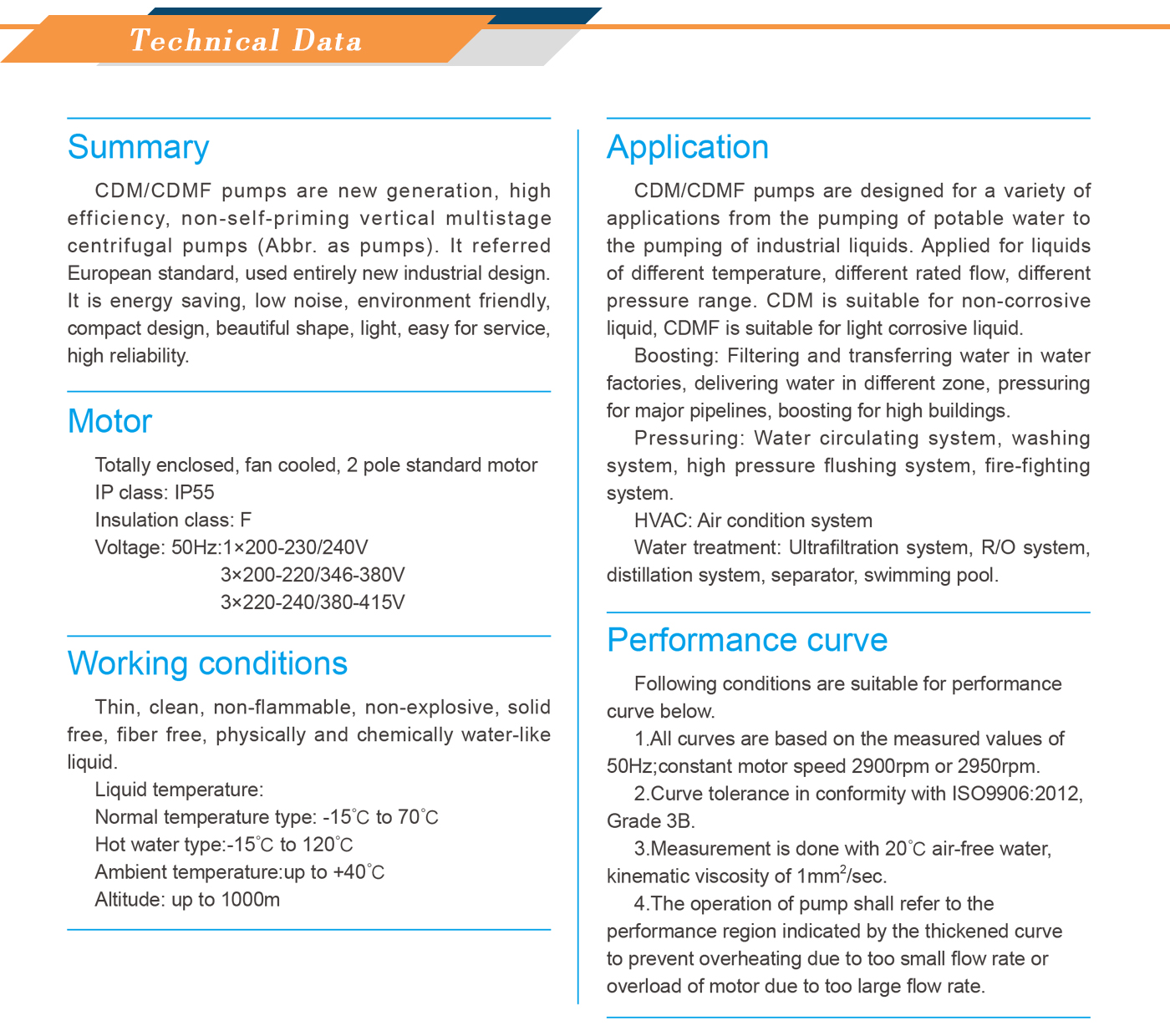

CDM pumps are new generation, high efficiency, non-self-priming vertical multistage centrifugal pumps. It referred European standard and used entirely new industrial design. Also it has advantages of energy saving, low noise, environment friendly, compact design, beautiful shape, light, easy for service, high reliability.

• CDM pumps are designed for a variety of applications from the pumping of potable water to the pumping of industrial liquids. Applied for liquids of different temperature, different rated flow, different pressure range

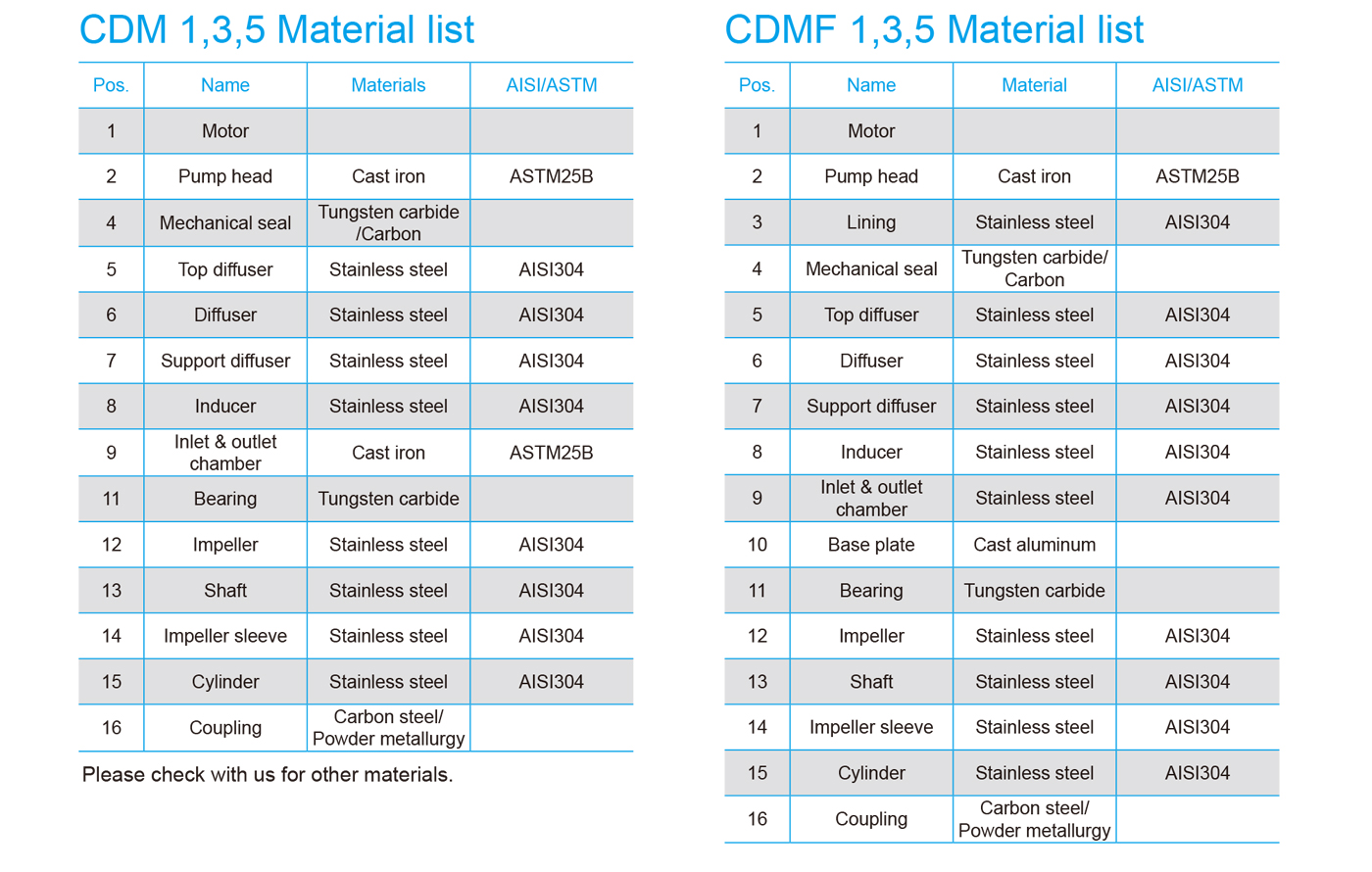

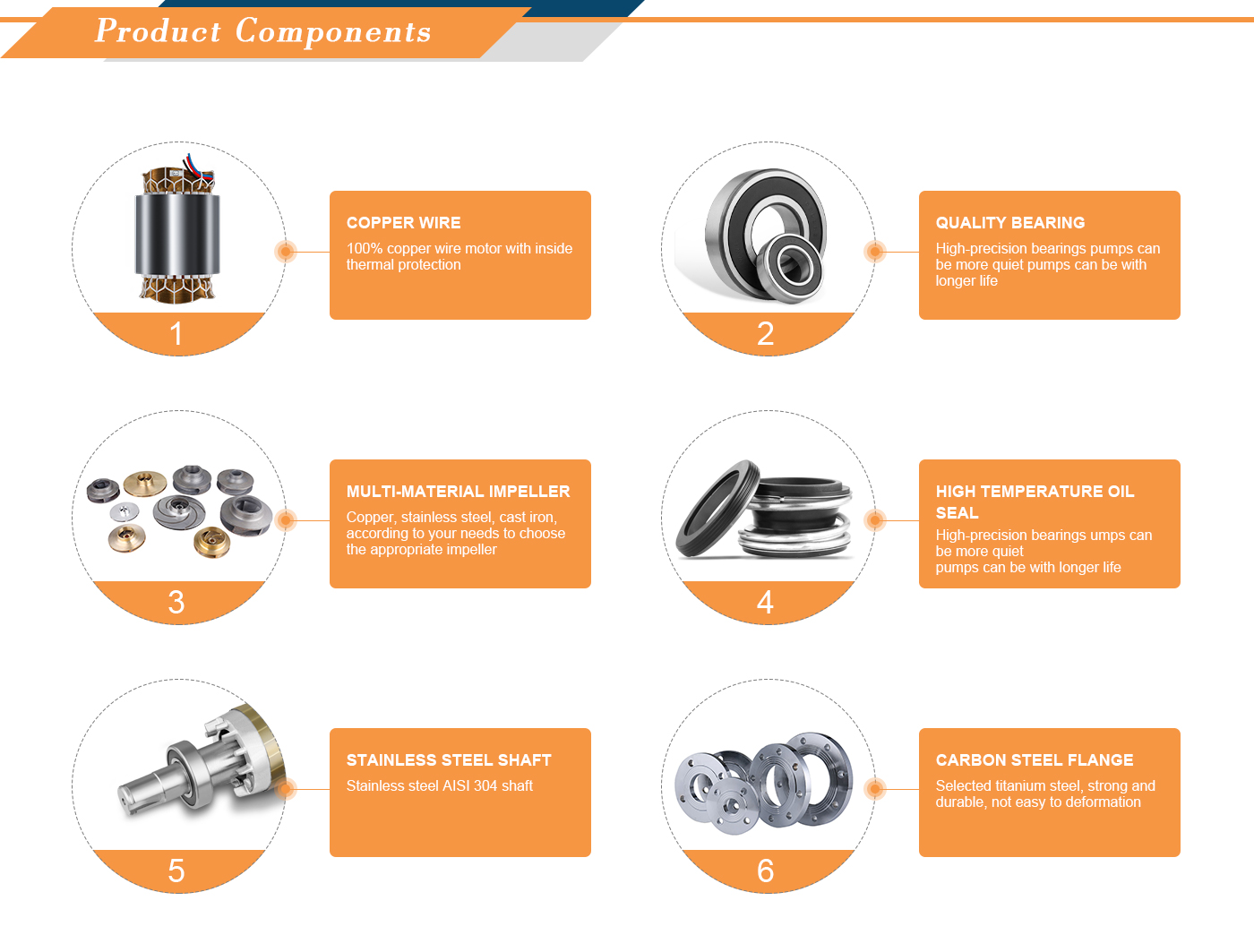

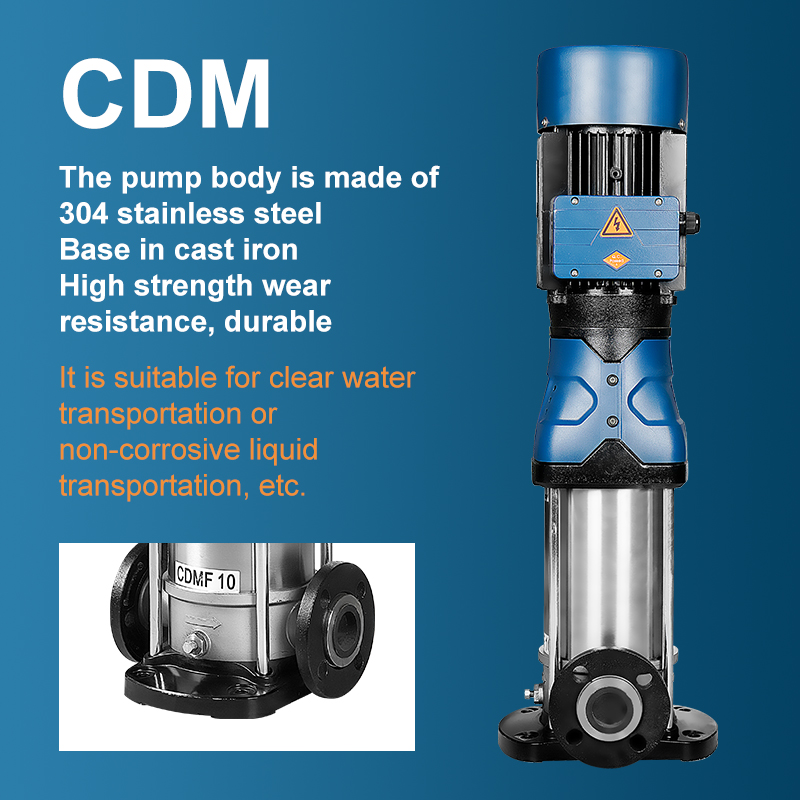

• The inside impeller, casing and other main components are all stainless stee.

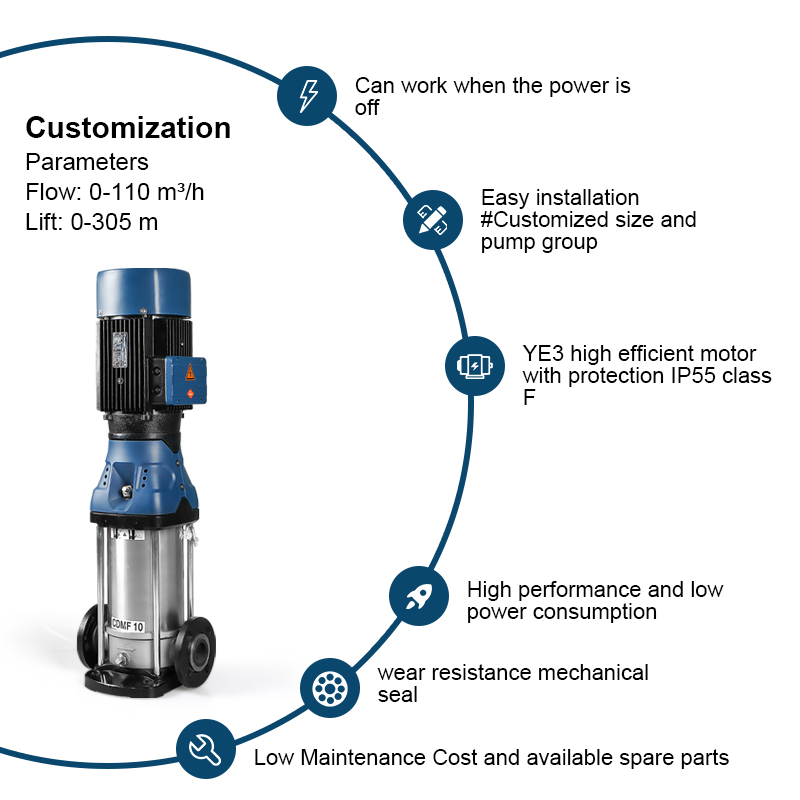

• The pump body has the advantages of stamping pump, standard impeller, small flow and high head. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.
• This simple pump structure, simple installation and convenient maintenance.

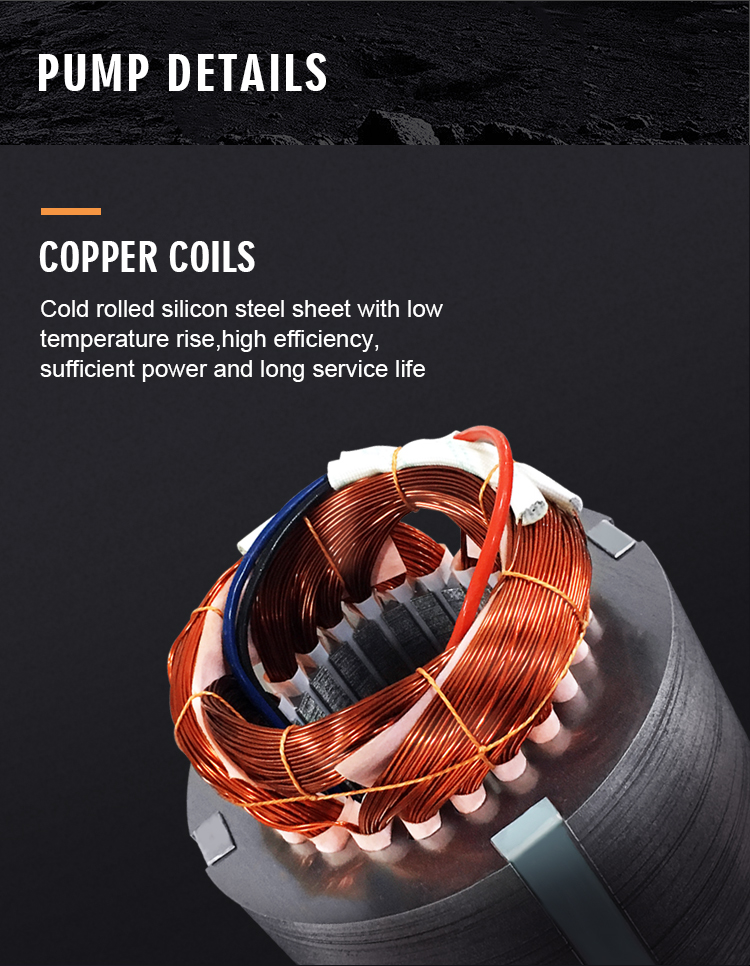

• And 100% copper coil is used to ensure the service life of the motor.For extensive application, which can be widely used in life, industry, agriculture and other fields.
• The use medium is clear water, clean, non-corrosive, non-explosive water and physical and chemical liquids.
