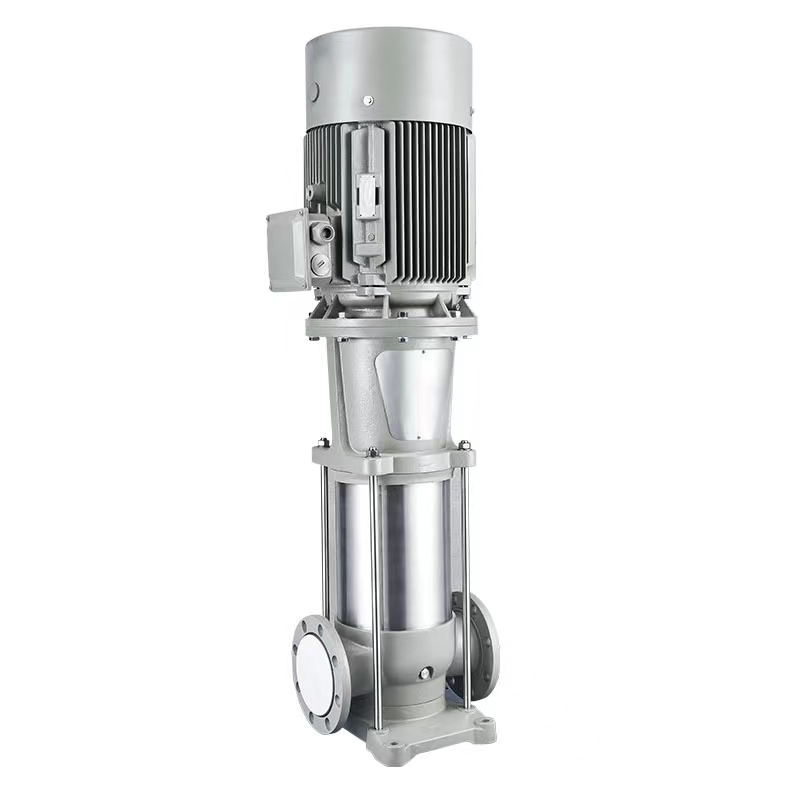

AC/AS Vertical Stainless Steel Multistage Centrifugal Pump

• DN Suction size: 25-200 mm (1"-8")
• DN Discharge size: 25-200 mm (1"-8")
• Flow Capacity Range: 0.6-330m3/h
• Head/Pressure Range: 15-335m
• Power Range: 0.37-200kw

AS series can be used alone as booster pump, or can be used with booster equipment for booster systems in construction and industry. Its pipeline structure can ensure that the pump is directly installed on the horizontal pipe with the same diameter and the same horizontal line in and out. In the pipeline system, this design makes the structure and pipeline of the pump more compact.

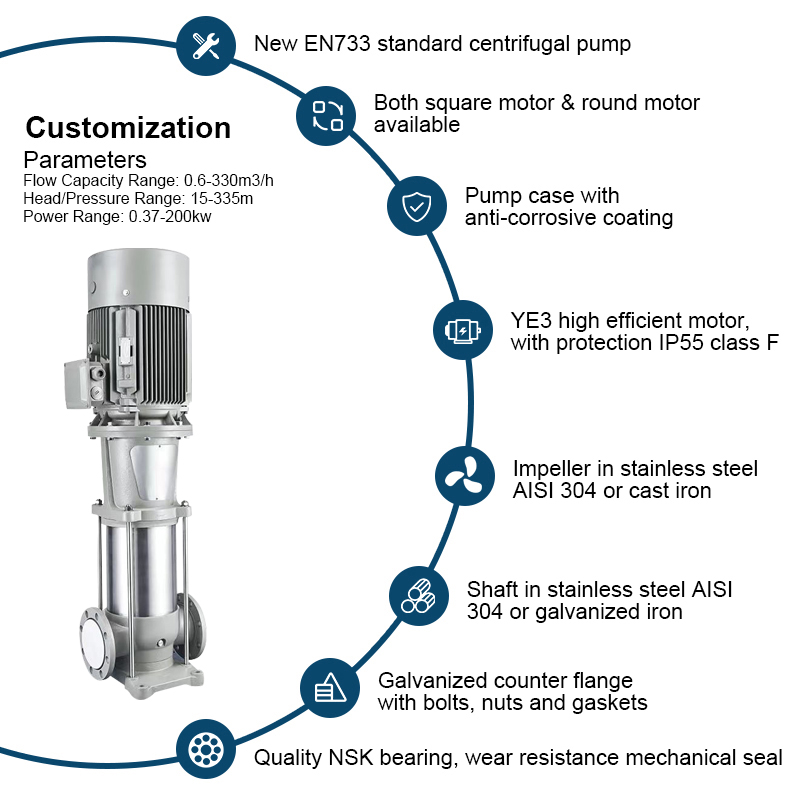

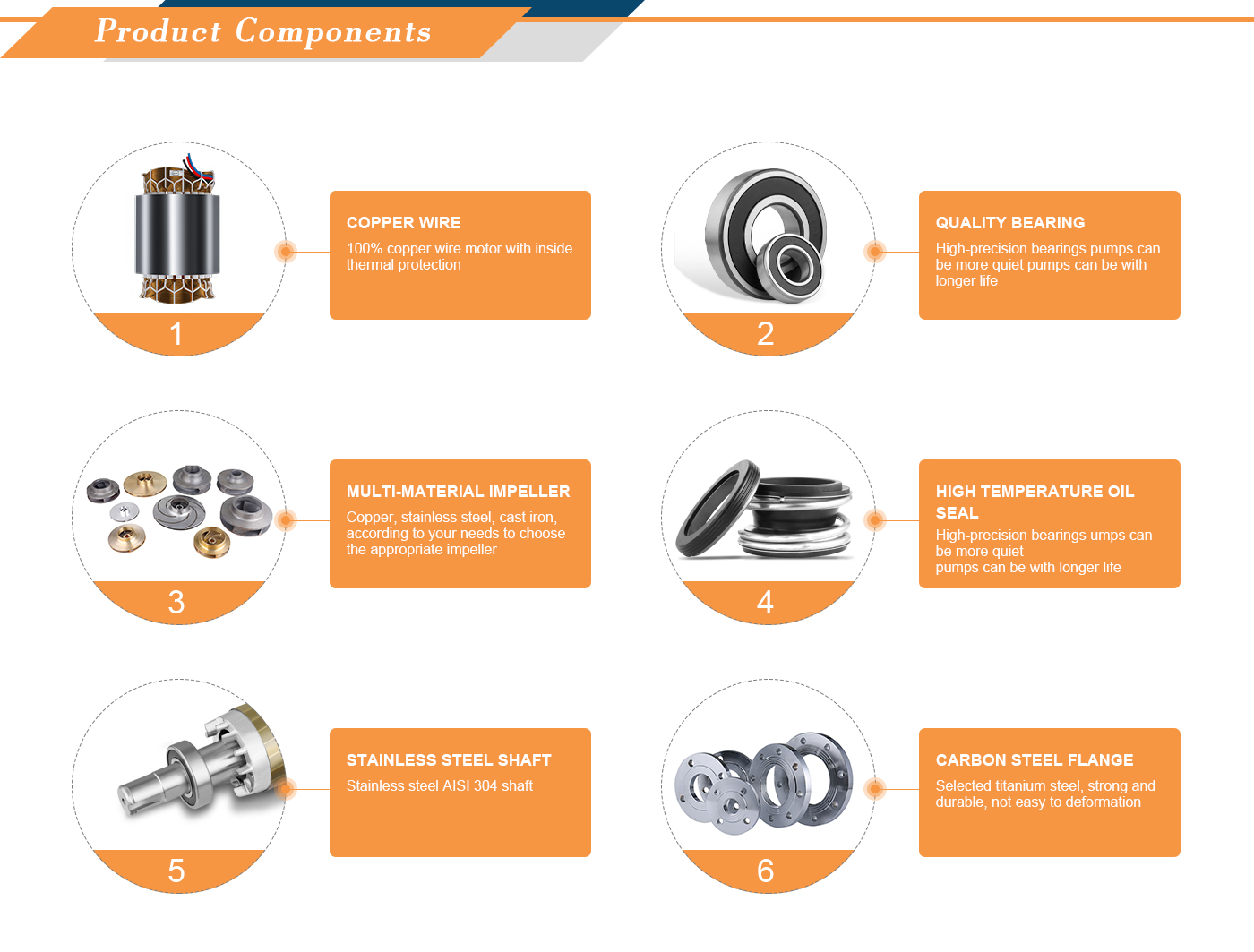

• The inside impeller, casing and other main components are all stainless steel.
• The pump body has the advantages of stamping pump, standard impeller, small flow and high head. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.
• This simple pump structure, simple installation and convenient maintenance.
• The use medium is clear water, clean, non-corrosive, non-explosive water and physical and chemical liquids.
