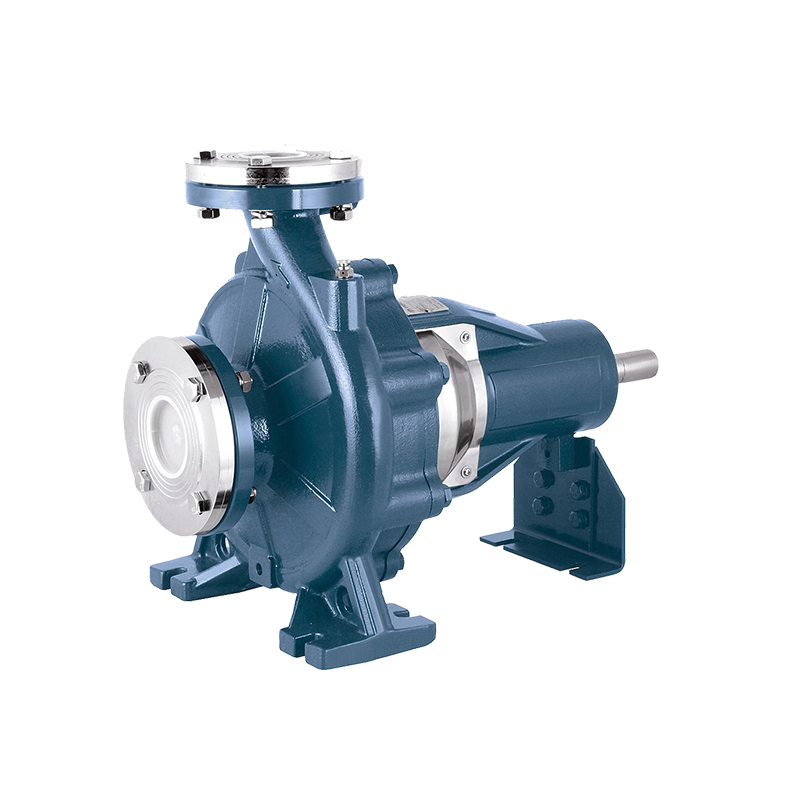

End Suction Horizontal EN 733 Centrifugal Pump
Add to My Favorite List
- DN Range of Suction Pipe: 50-300 mm (2"-12")
- DN Range of Discharing Pipe: 32-250 mm (1.5"-10")
- Flow Capacity Range: 0-1500m3/h
- Head/Pressure Range: 0-164 m
- Power Range: 0.75-315 Kw

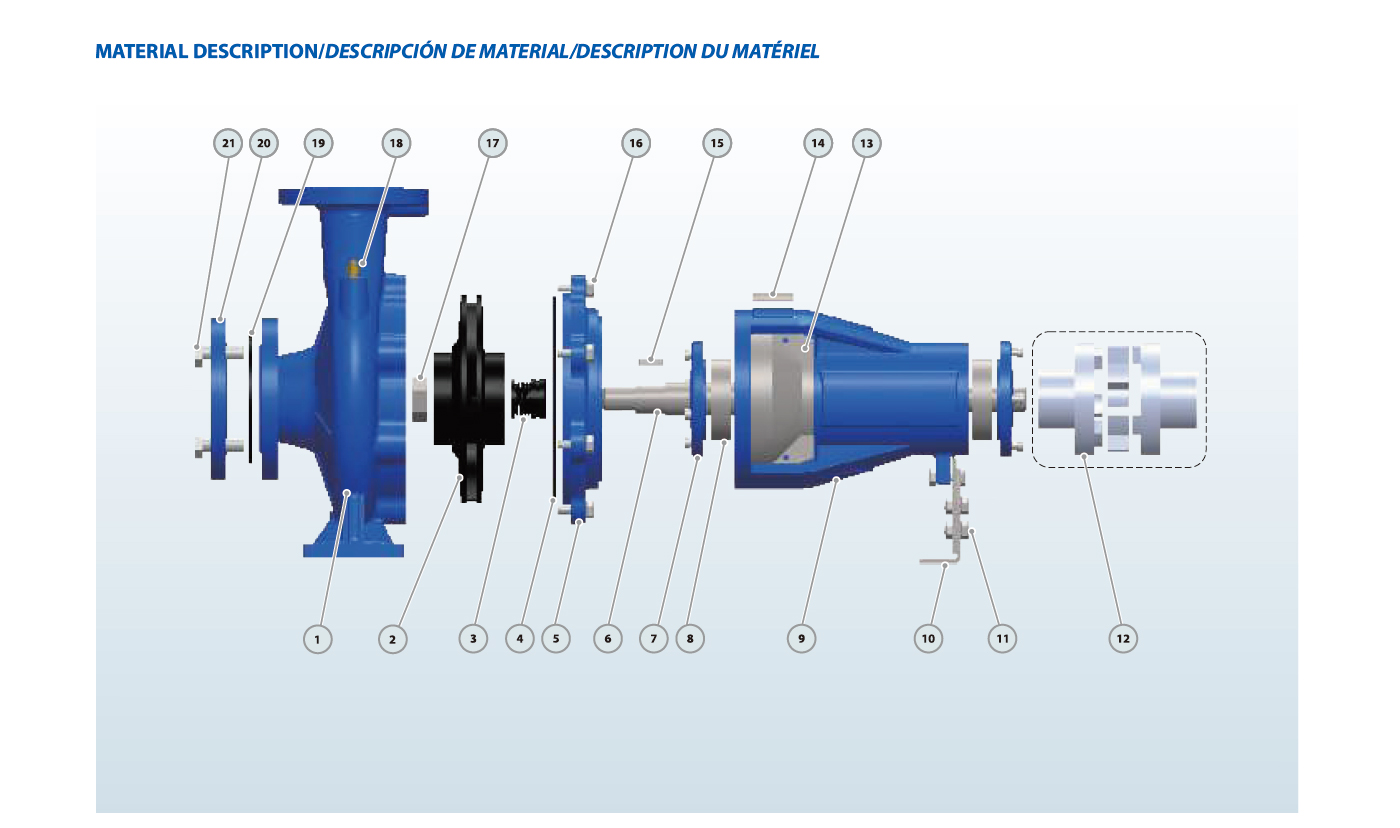

- The pumps impeller material can be cast iron, SS304, brass.
- Pumps of the same model have different performance levels basing on different diameter after impeller trimming .

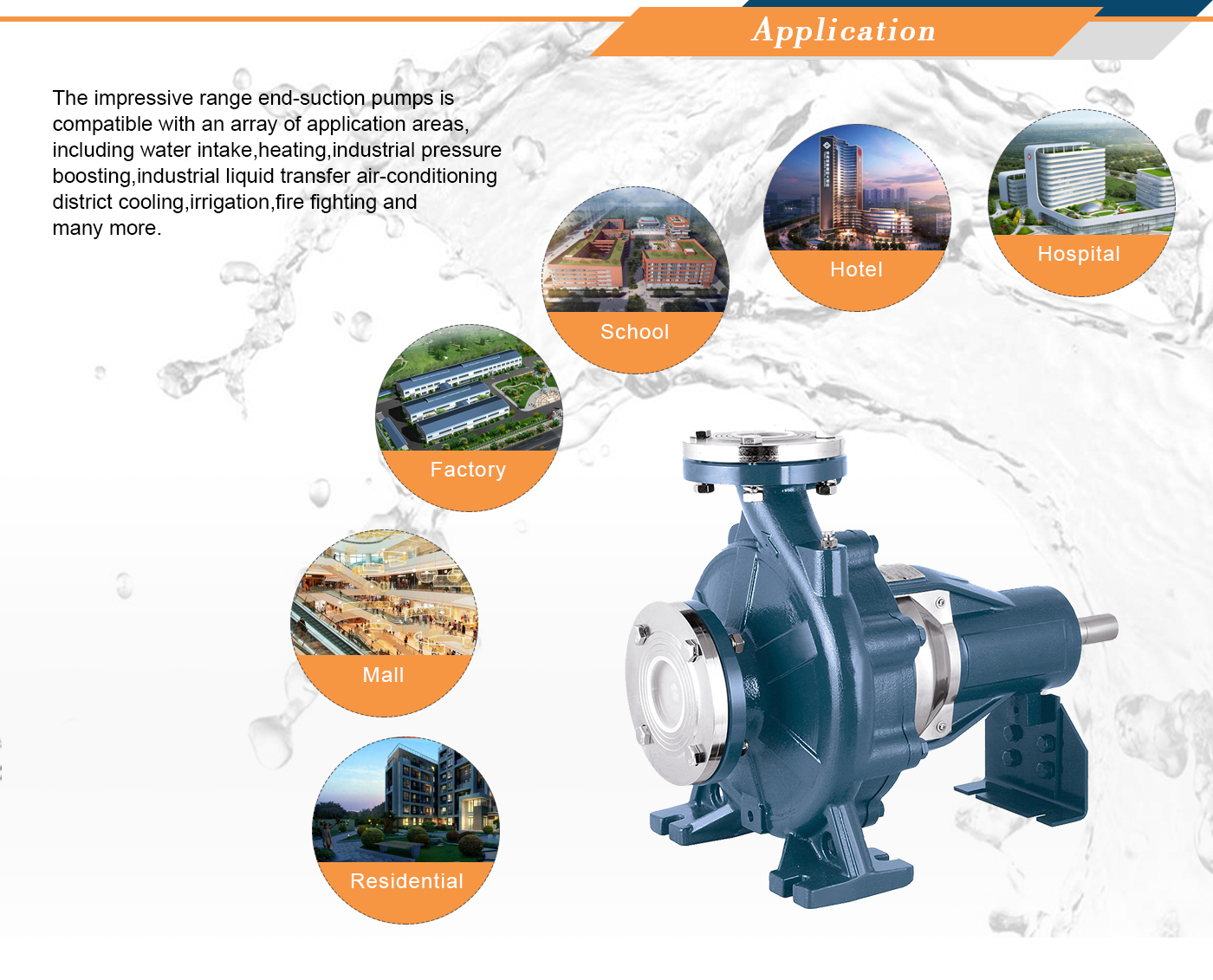

- Pumps are widely used in water supply and drainage for factory,mine,city and also fire-fighting and field irrigation system
- The pumps have simple structure,reliable performance,compact size,low weight,excellent anti-cavitation,low power consumption and convenient maintenance

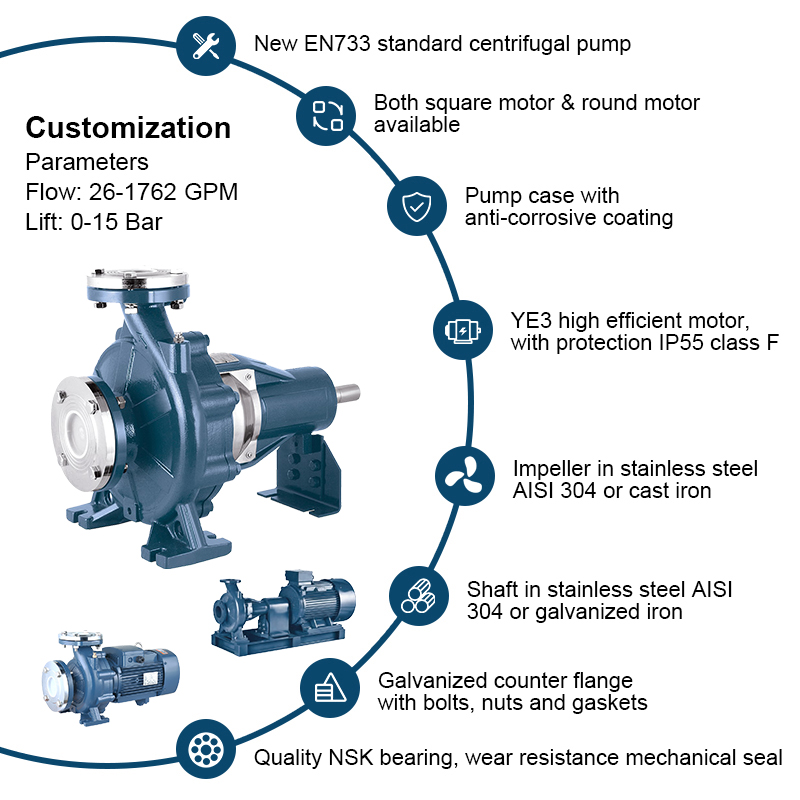

- Customized design is available, OEM and ODM are welcomed.

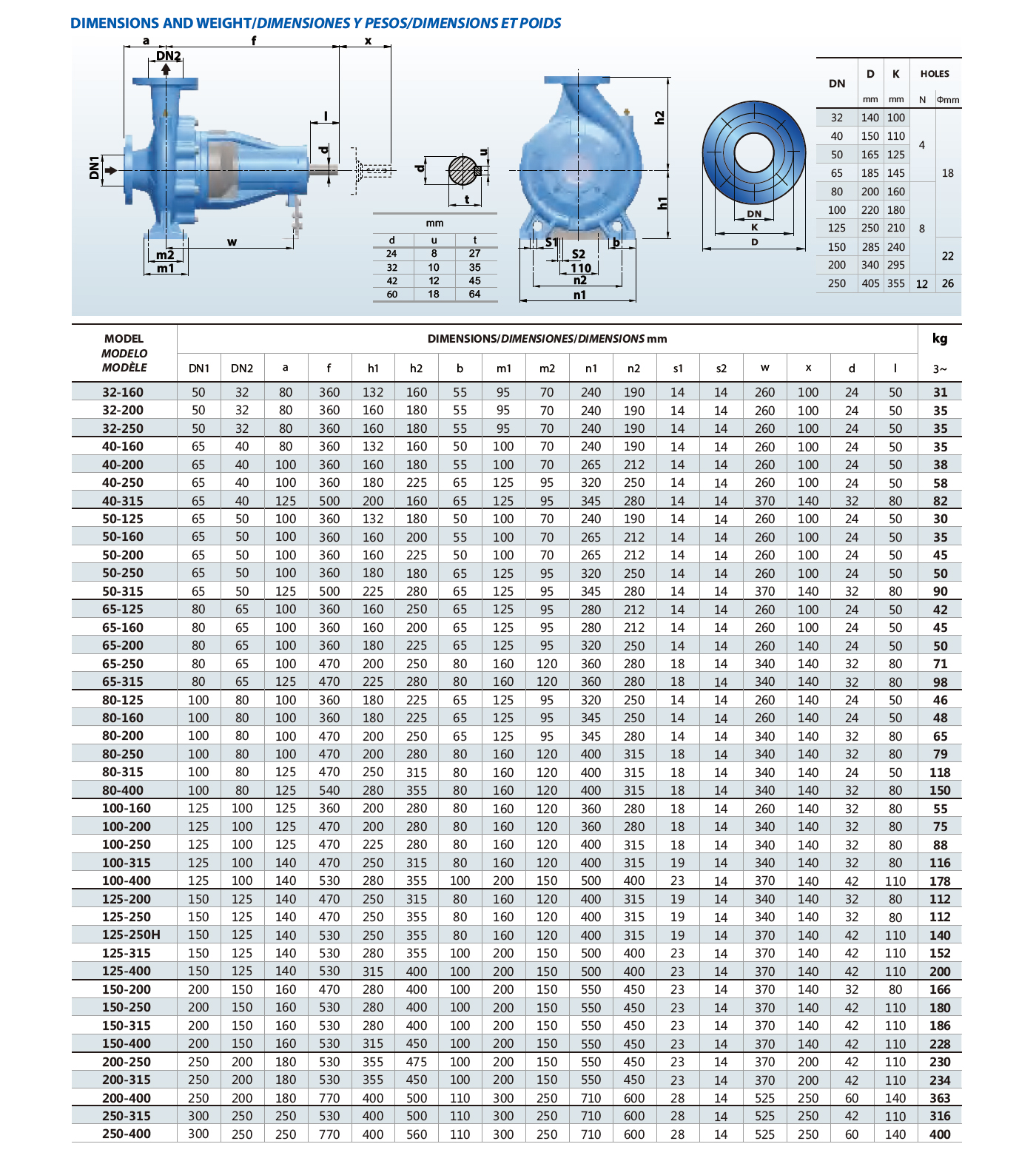

- Product Details

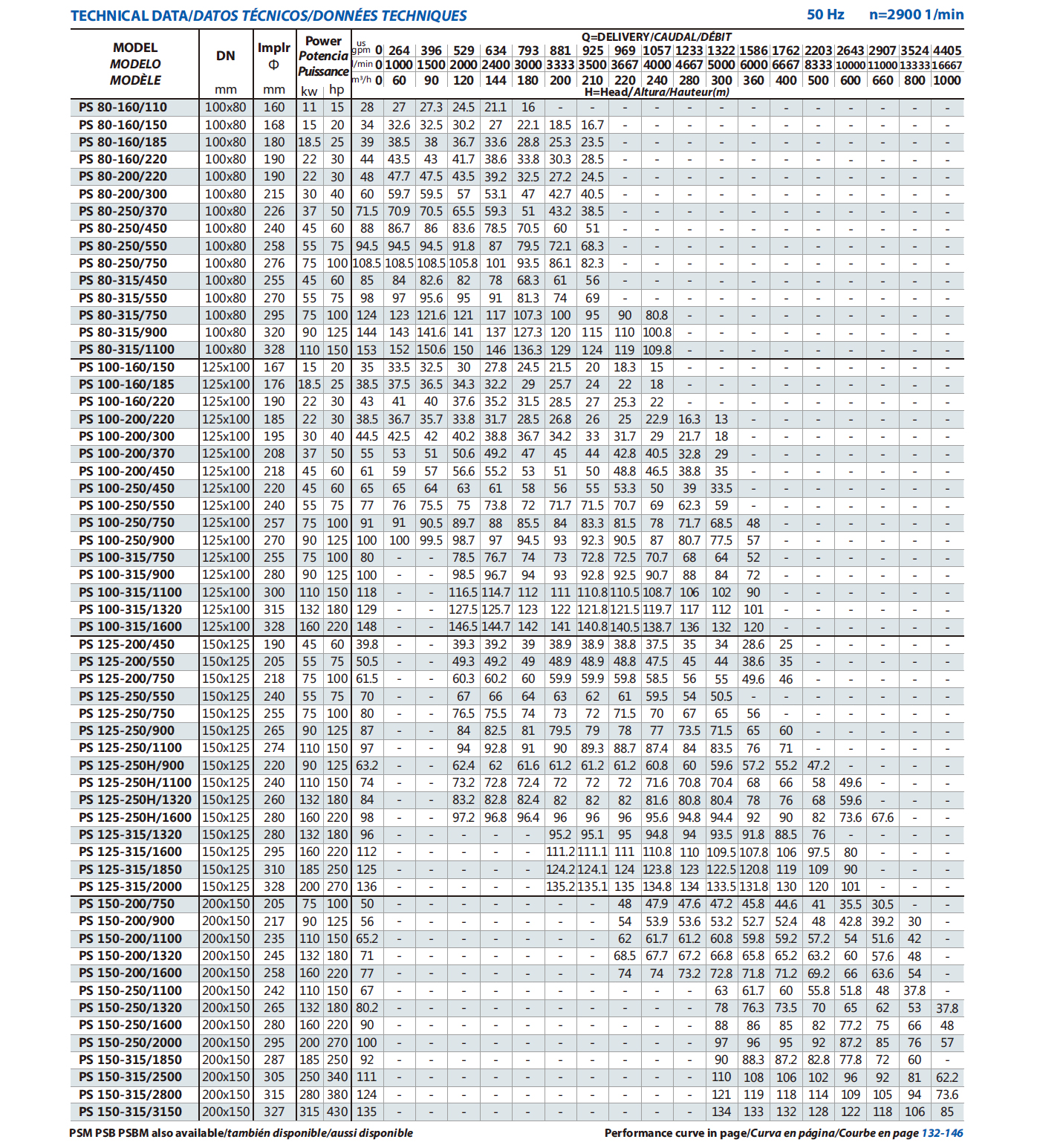

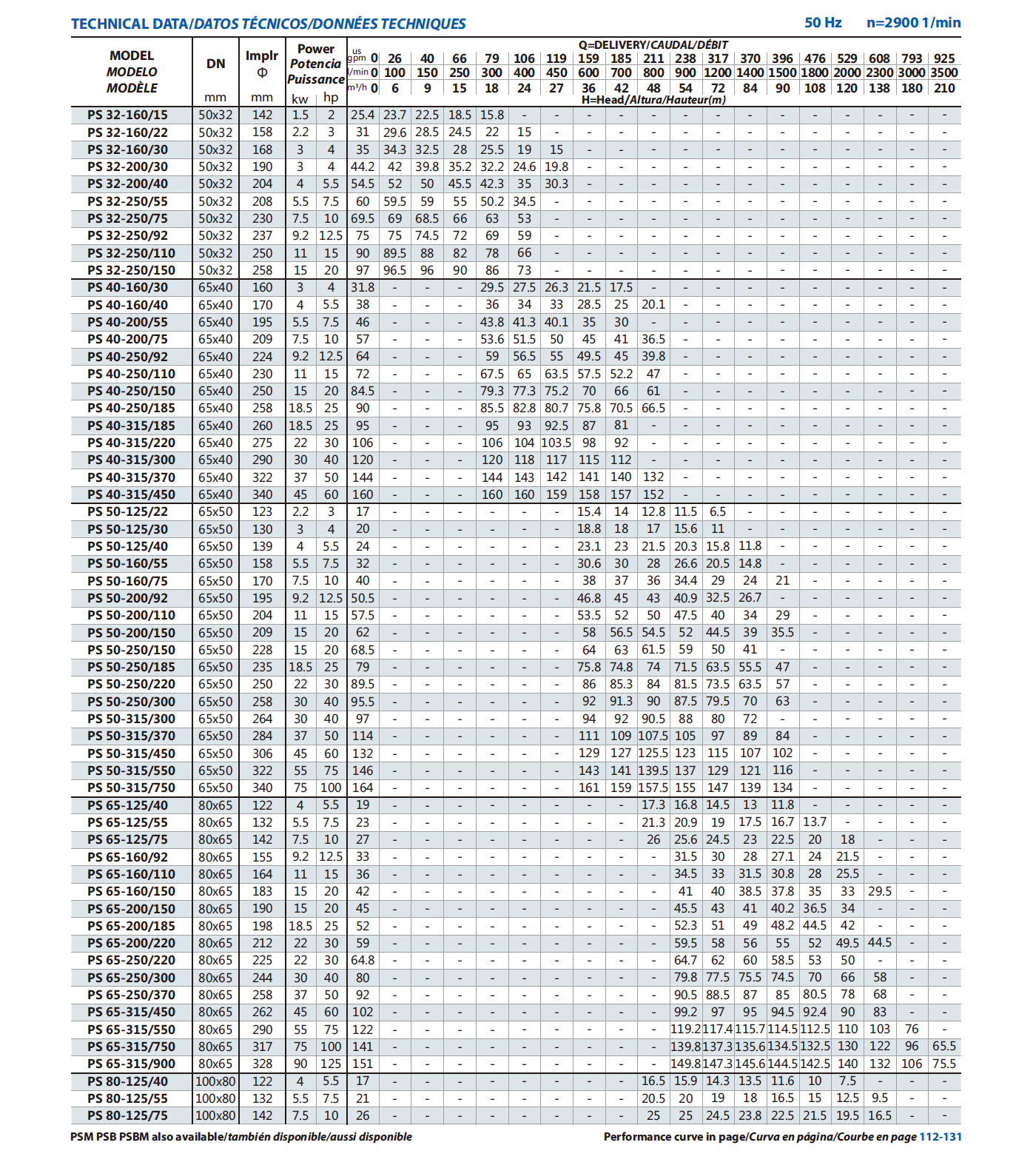

- 50Hz product parameter

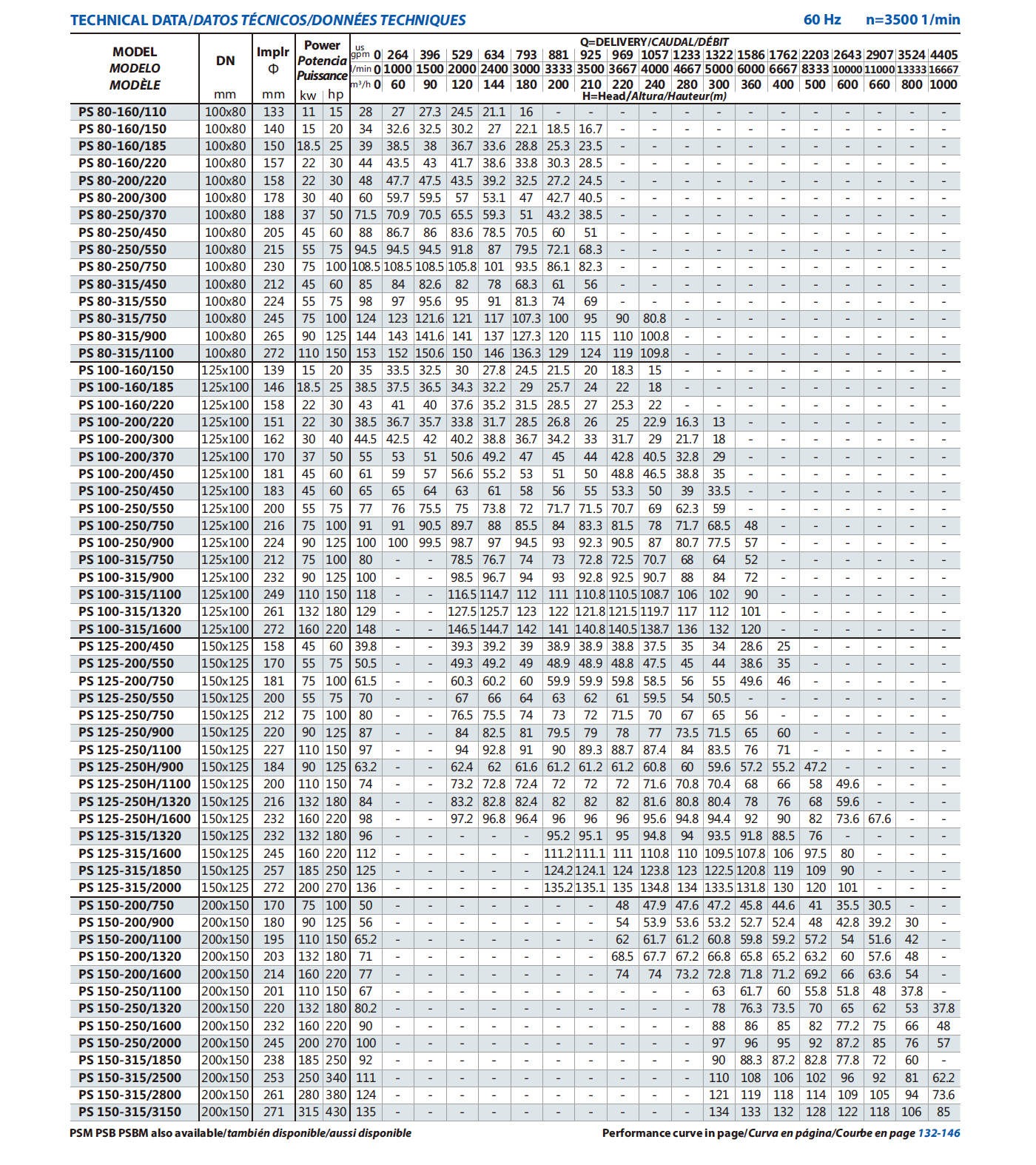

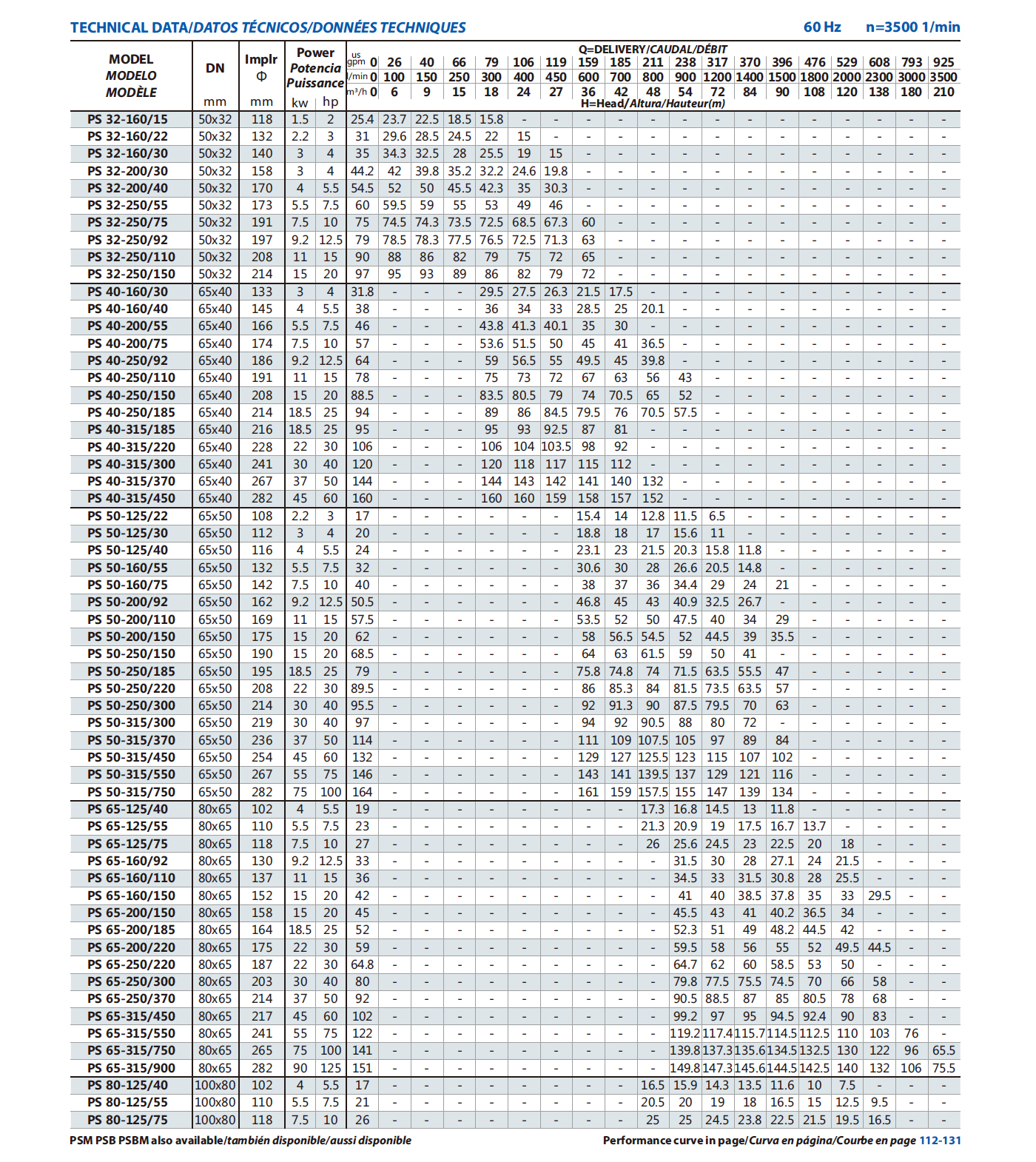

- 60Hz product parameter

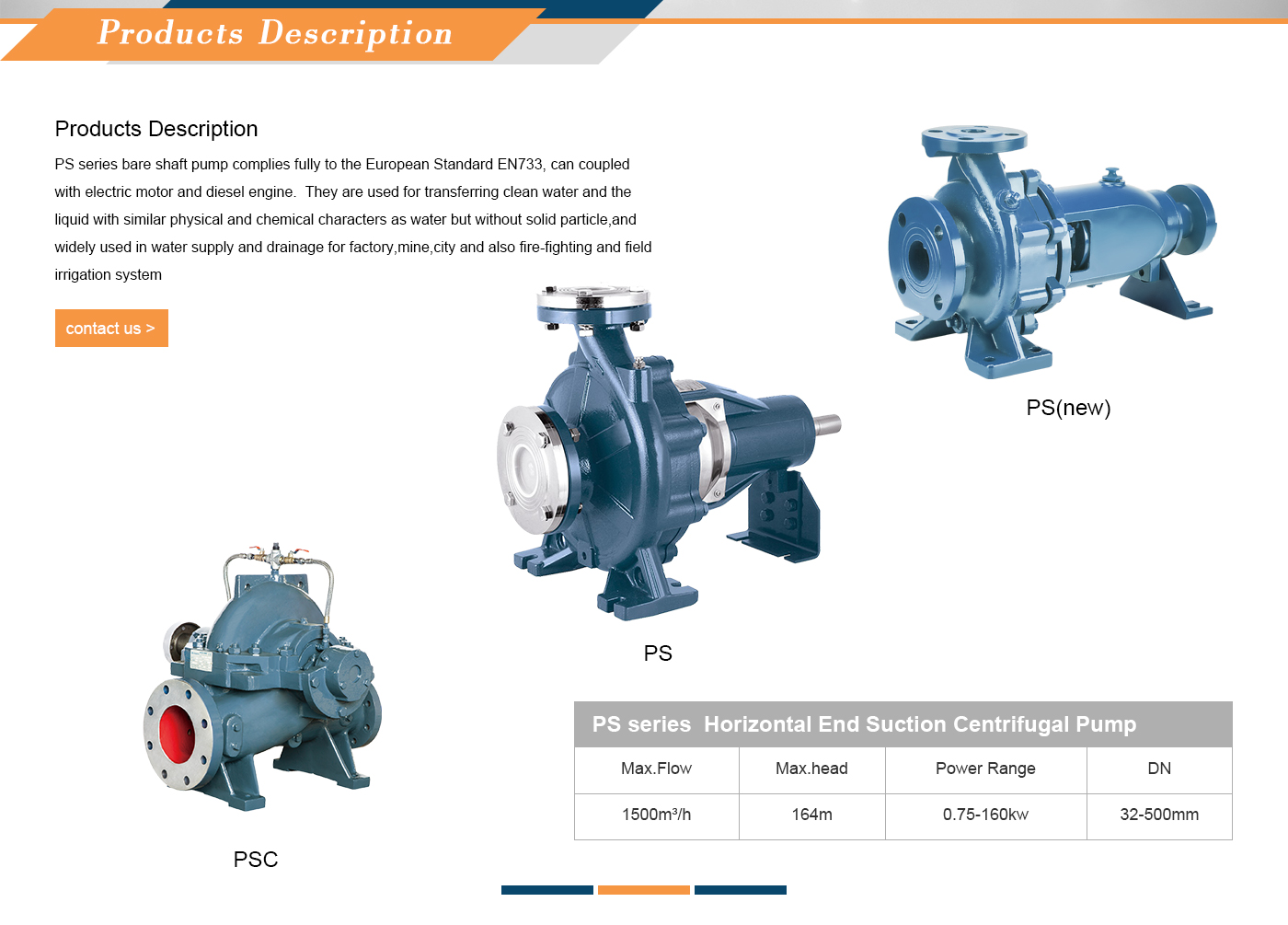

End Suction Horizontal EN 733 Centrifugal Pump can coupled with electric motor and diesel engine. They are used for transferring clean water and the liquid with similar physical and chemical characters as water but without solid particle,and widely used in water supply and drainage for factory,mine,city and also fire-fighting and field irrigation system
Question ：What is your payment terms?
Answer ：30%T/T, L/C,West Union, .etc.
Question：Do u have your own designers and engineers?

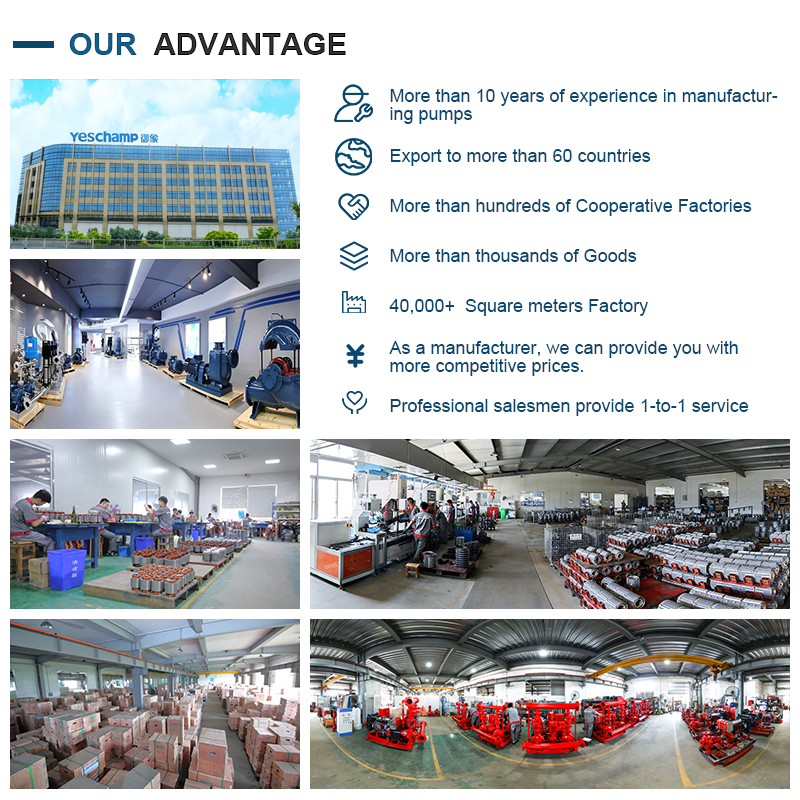

Answer：We are professional centrifugal pump manufacturer, we have engineers and we are the first enterprise to make high temperature submersible pump in Zhejiang Province.
Question：How long is your warranty?
Answer：3 years after buying our pump.

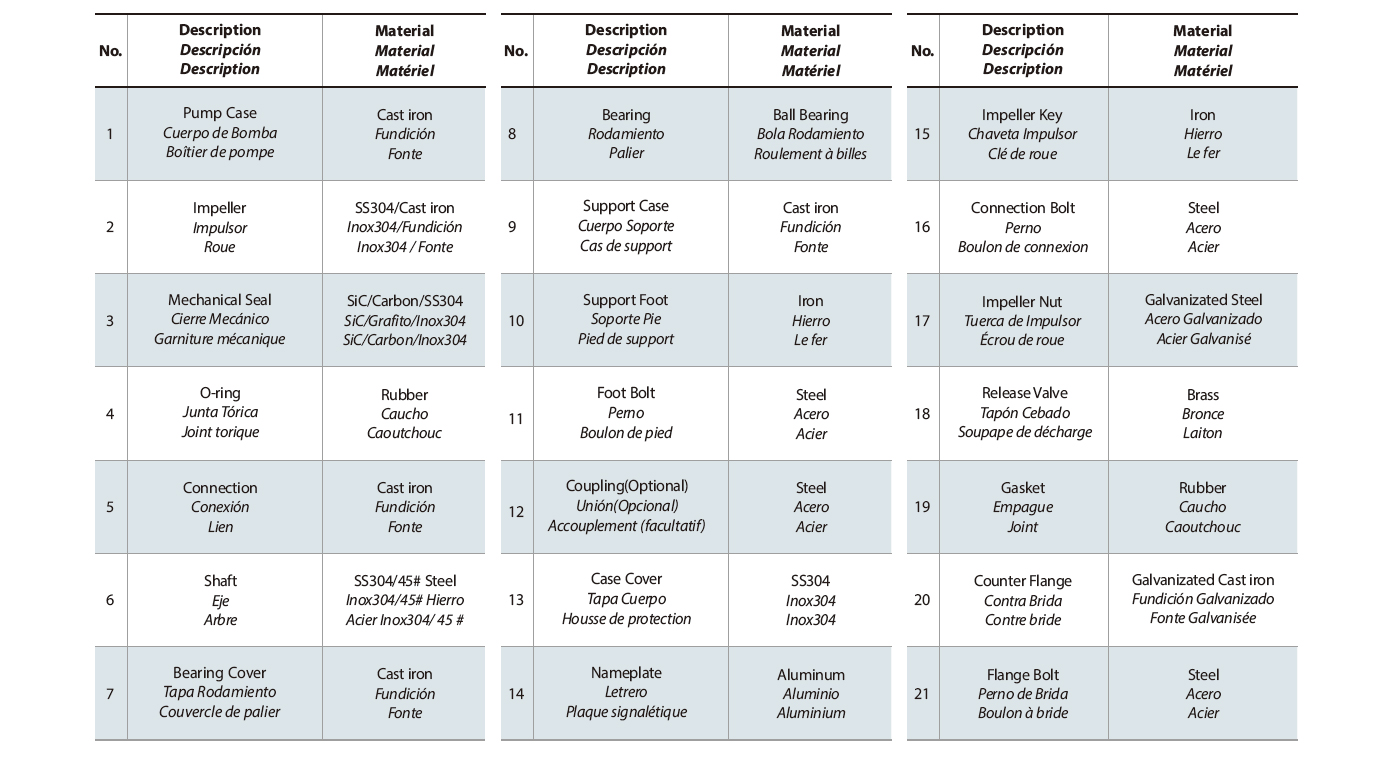

Question: What are the impeller materials of end suction centrifugal pumps
Answer：Cast iron, Brass or AISI 304
Question: What is the shaft material?
Answer： 45#steel or AISI 304,according to customer requirements
Question:How can I get the price ?
Answer：Pls let us know power,flow capacity ,head and quantity,we can give u price according to your requiremnt
