Monoblock Close Coupled Centrifugal Water Pump
Add to My Favorite List
- DN Range of Suction Pipe: 50-150 mm (2"-6")
- DN Range of Discharing Pipe: 32-125 mm (1.5"-5")
- Flow Capacity Range: 0-1750 GPM
- Head/Pressure Range: 1-15 Bar
- Power Range: 0.75-160Kw
- The industrial pump have two different pump head-smooth and rough, they are made of cast iron.The impeller is available in two materials-cast iron and stainless steel, for customers to choose.
- The centrifugal monoblock pump can be installed on a steel base or connected with the controller according to the customer's requirements. Additional piping, pressure tanks, valves and sensing lines can also be provided if required.
- The electric pump is coupled with YE3 high efficient motor with protection IP55 class F,and both square motor & round motor available, anti-corrosive coating pump case, quality NSK bearings, and wear resistance mechanical seal. Cast iron, brass and stainless steel impellers are all available.
- The pump could delivery water or liquid that physical and chemical similar to water.Liquid temperature shall not higher than 120 ºC.Ambient temperature is between-10°C and +50°C.The max. working pressure is 16 bar.
- The horizontal centrifugal pump is suitable for use with clean water and liquids that are not chemically aggressive towards the materials.The centrifugal pumps are recommended for use in water supply,cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatization sets, agricultural.
- Product Details
- 50Hz product parameter
- 60Hz product parameter

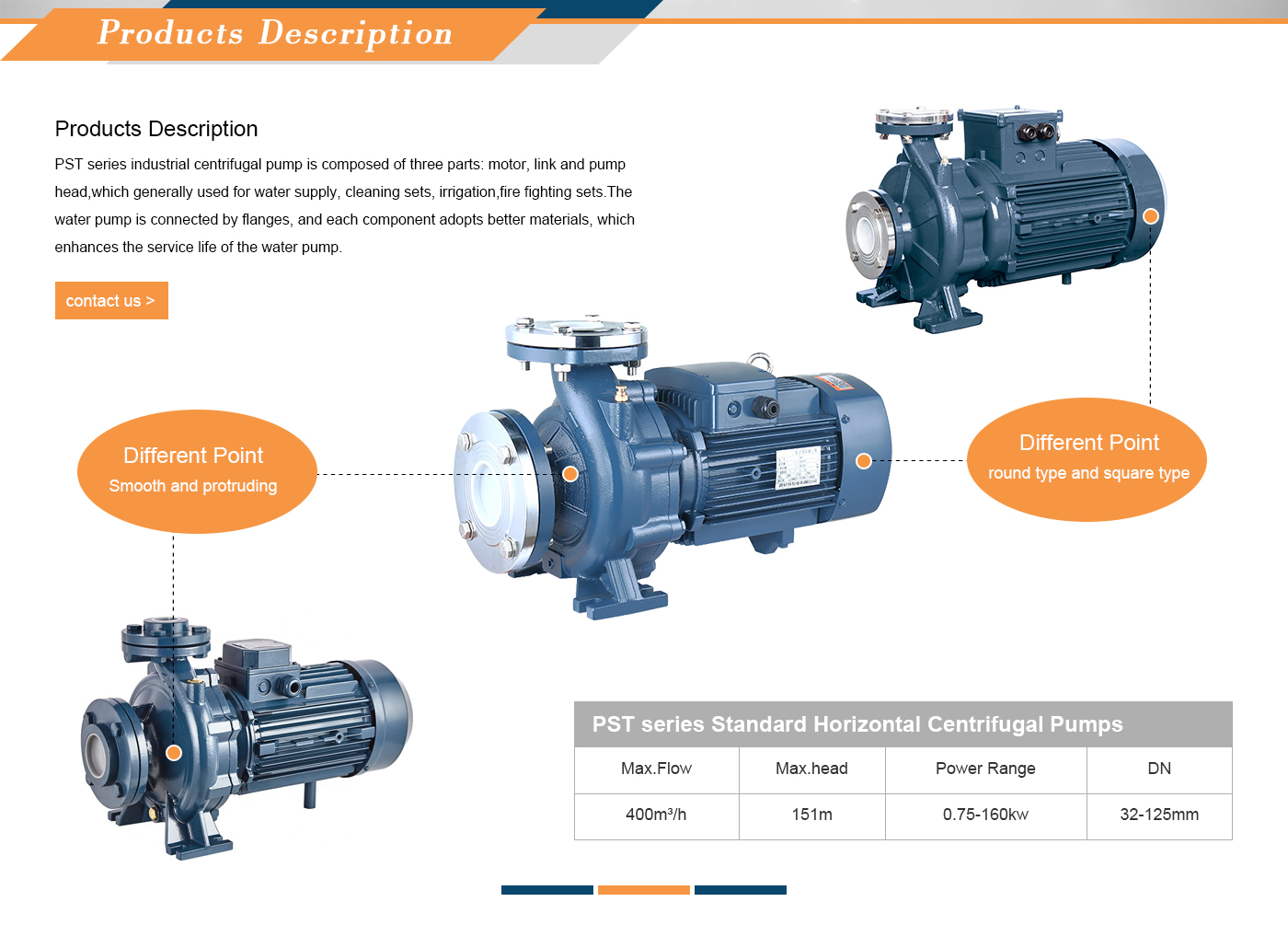

Monoblock Close Coupled Centrifugal Water Pump is composed of three parts: motor, link and pump head,which generally used for water supply, cleaning sets, irrigation,fire fighting sets.The water pump is connected by flanges, and each component adopts better materials, which enhances the service life of the water pump.
Question ：What is your payment terms?
Answer ：30%T/T, L/C,West Union, .etc.
Question：Do u have your own designers and engineers?
Answer：We are professional water pump manufacturer, we have engineers and we are the first enterprise to make high temperature submersible pump in Zhejiang Province.
Question：How long is your warranty?
Answer：3 years after buying our pump.
Question: What are the impeller materials of close coupled centrifugal pumps
Answer：Cast iron, Brass or AISI 304
Question: What is the shaft material?
Answer： 45#steel or AISI 304,according to customer requirements
Question:How can I get the price ?
Answer：Pls let us know power,flow capacity ,head and quantity,we can give u price according to your requiremnt
