PSF Series End Suction Bare Shaft Fire Pump
Fire Pump and System
Add to My Favorite List
- DN Range of Suction Pipe: 50-300 mm (2"-12")
- DN Range of Discharing Pipe: 32-250 mm (1.5"-10")
- Flow Capacity Range: 0-1500m3/h
- Head/Pressure Range: 0-164 m
- Power Range: 0.75-315 Kw
- The PSF pump according to EN733 standard
- The Impeller material can be cast iron/ stianless stell/ brass, as customer demand.
- PSF bare shaft pump can coupled with YE3 motor and diesel engine, used as individual pump and part of fire fighting system.
- Two appearance, circle type and square type, with same performance
- PSF widely used in fire fighting system, irrigation, water supply etc.

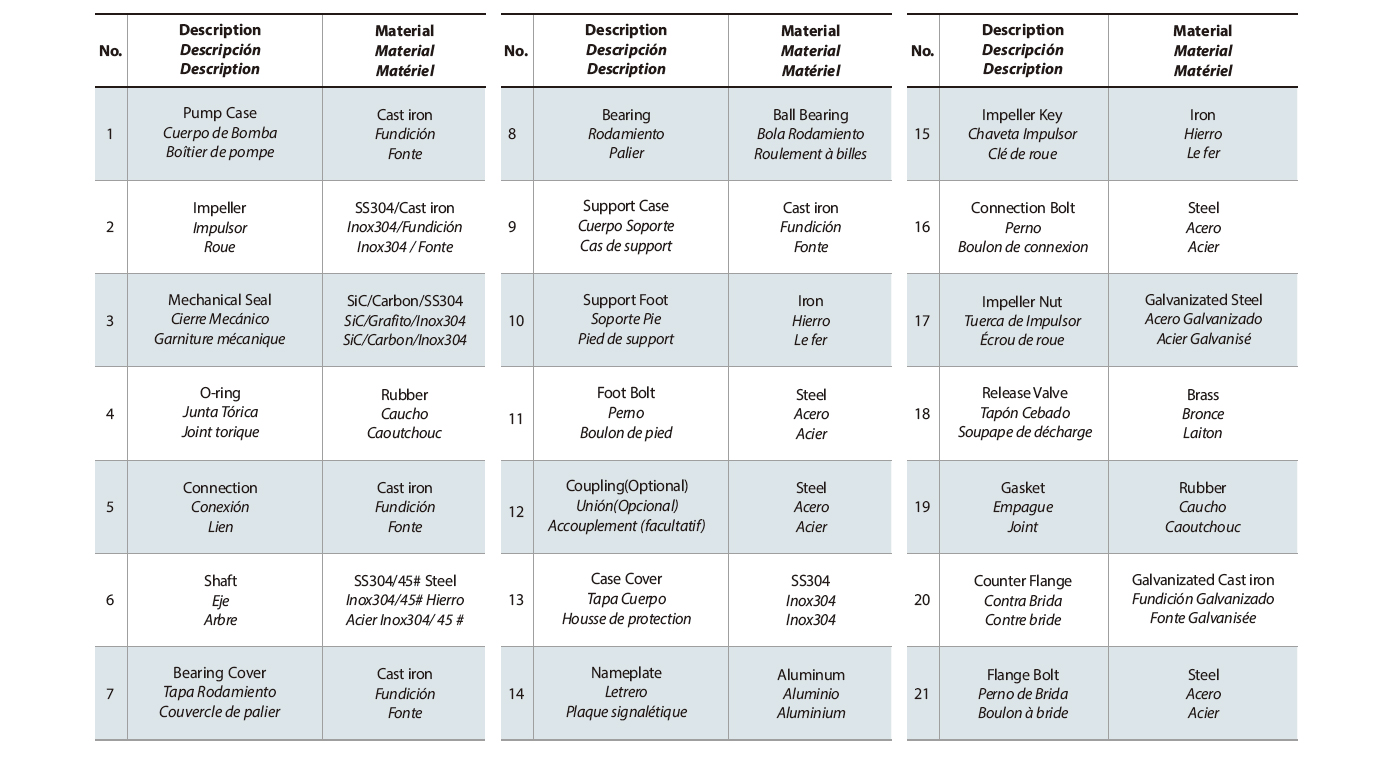

- Product Details
- 50Hz product parameter
- 60Hz product parameter
Question ：What is your payment terms?
Answer ：30%T/T, L/C,West Union, .etc.
Question：Do u have your own designers and engineers?
Answer：We are professional centrifugal pump manufacturer, we have engineers and we are the first enterprise to make high temperature submersible pump in Zhejiang Province.
Question：How long is your warranty?
Answer：3 years after buying our pump.
Question: What are the impeller materials of end suction centrifugal pumps
Answer：Cast iron, Brass or AISI 304
Question: What is the shaft material?
Answer： 45#steel or AISI 304,according to customer requirements
Question:How can I get the price ?
Answer：Pls let us know power,flow capacity ,head and quantity,we can give u price according to your requiremnt
