Bare Shaft Centrifugal Pump
Add to My Favorite List
- DN Range of Suction Pipe: 50-300 mm (2"-12")
- DN Range of Discharing Pipe: 32-250 mm (1.5"-10")
- Flow Capacity Range: 0-1500m3/h
- Head/Pressure Range: 0-164 m
- Power Range: 0.75-315 Kw
- The motor is YE3 high efficiency motor, IP55, Class F,copper wire
- The pumps impeller material can be cast iron, SS304, brass, as customer demand.
- The hydraulic performance can be adjusted by impeller cutting for different requests, same model with several performances.
- It is used for pumping clean water or liquids similar to water, achieving wide application on plants, mines, city water supplies, air-conditioning coolers, firefighting system and irrigation.
- The pump is easy to be installed and maintained. Customized design is available, OEM and ODM are welcomed.
- Product Details
- 50Hz product parameter
- 60Hz product parameter

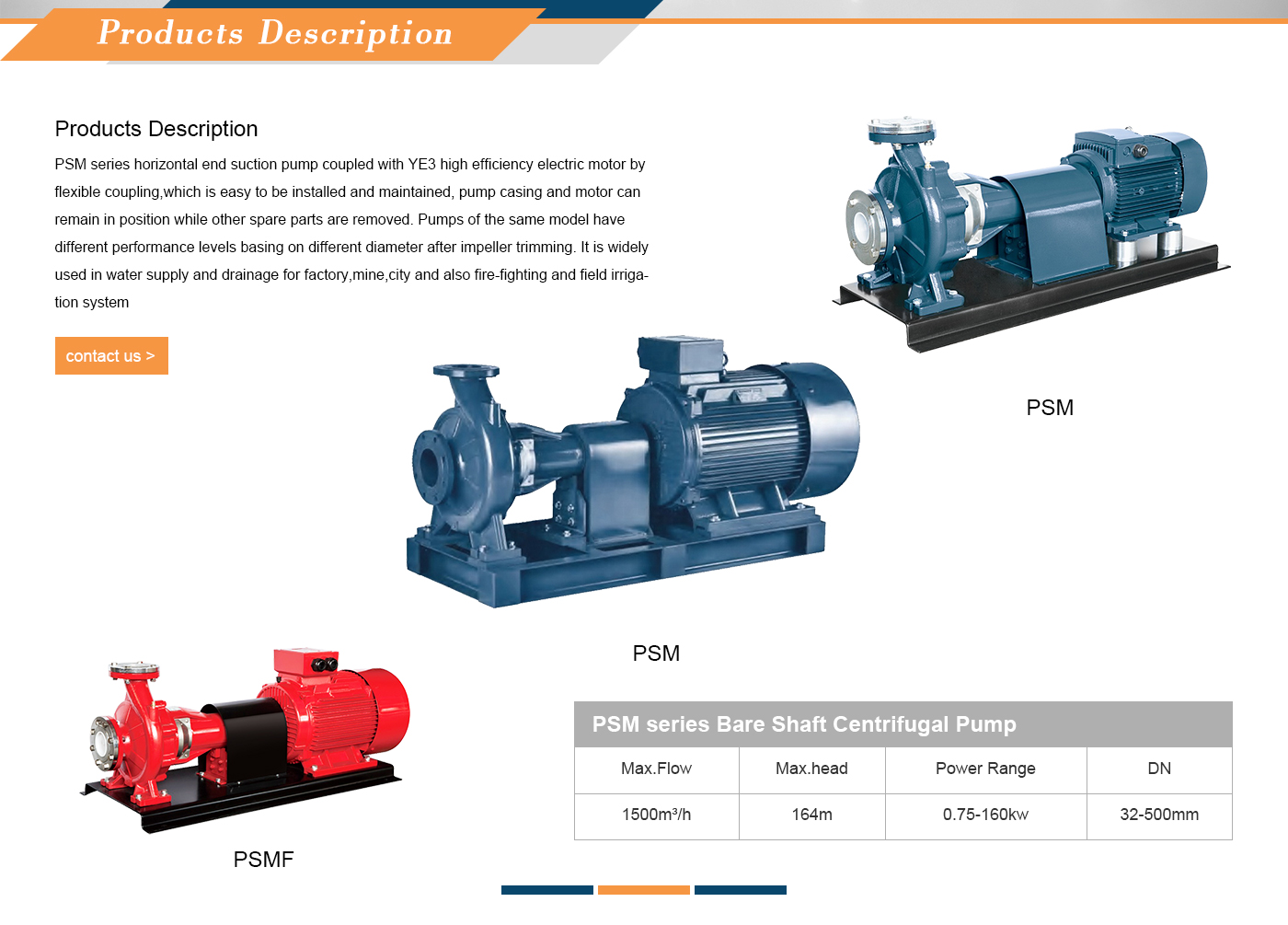

PSM series electric motor driven bare shaft centrifugal pump with YE3 high efficiency electric motor by flexible coupling,which is easy to be installed and maintained, pump casing and motor can remain in position while other spare parts are removed. Pumps of the same model have different performance levels basing on different diameter after impeller trimming. It is widely used in water supply and drainage for factory,mine,city and also fire-fighting and field irrigation system
Question ：What is your payment terms?
Answer ：30%T/T, L/C,West Union, .etc.
Question：Do u have your own designers and engineers?
Answer：We are professional centrifugal pump supplier, we have engineers and we are the first enterprise to make high temperature submersible pump in Zhejiang Province.
Question：How long is your warranty?
Answer：3 years after buying our pump.
Question: What are the impeller materials of end suction centrifugal pumps
Answer：Cast iron, Brass or AISI 304
Question: How is the quality of the motor
Answer： We use YE3 high efficient motor,with protection IP55 class F.
Question:How can I get the price ?
Answer：Pls let us know power,flow capacity ,head and quantity,we can give u price according to your requiremnt.
We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced Bare Shaft Centrifugal Pump suppliers
and wholesale Bare Shaft Centrifugal Pump manufacturers
, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
