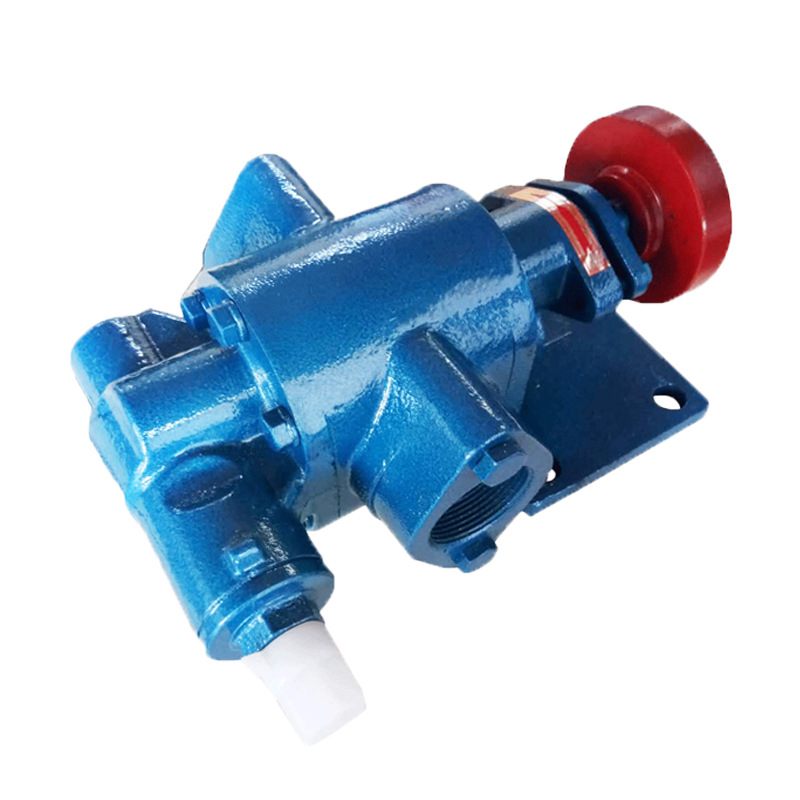

Electric Gear Transfer Oil Pump

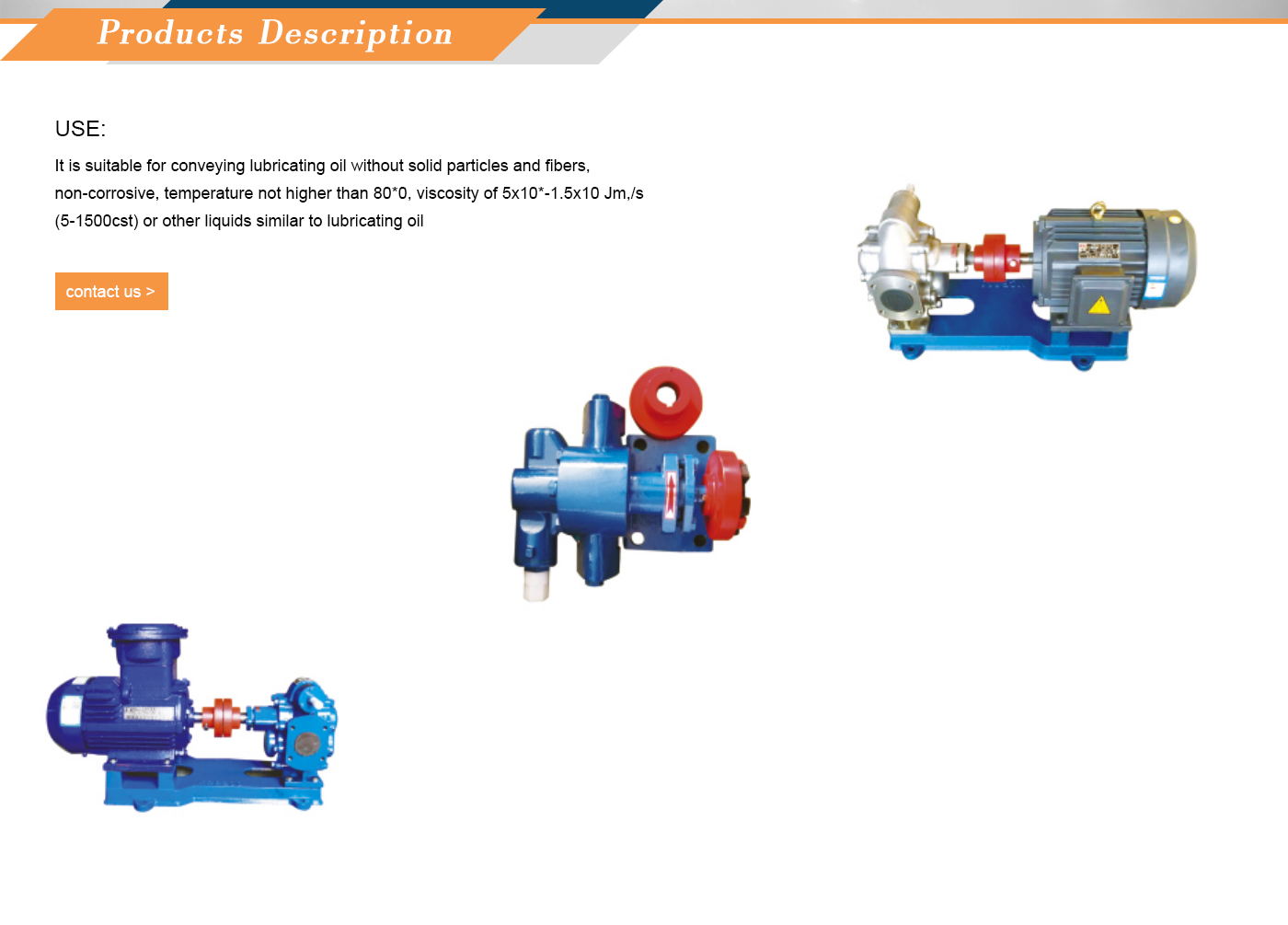

Application:

1-It can be used as a transmission and booster pump in the oil delivery system.

2-In the fuel system, it can be used as a fuel pump for delivery, pressurization and injection.

3-In all industrial fields, it can be used as lubricating oil.

Structure type：

This series of gear pumps is mainly composed of gears, shafts, pump bodies, safety valves, shaft end seals and other components. The gears have been heat-treated to have high hardness and strength, and are installed in replaceable shaft sleeves together with the pump to run. All in the pump The lubrication of the parts is automatically achieved by using the conveying medium when the pump is working.

There are well-designed oil drain and oil return grooves in the pump, so that the gear bears the minimum torque force during operation, so the bearing load is small, the wear is small, and the pump efficiency is high.

The pump is equipped with a safety valve as overrunning protection. The total return pressure of the safety valve is 1.5 times the rated discharge pressure of the system, and it can also be adjusted according to actual needs within the allowable discharge pressure range. But note that this safety valve cannot be used as a pressure reducing valve for long-term work, and it can be installed separately on the pipeline if necessary. Viewed from the extended end of the shaft to the pump, it rotates clockwise.
