EJ Electric Jockey Fire Pump With Pressure Tank and Control Panel

DN Range of Suction Pipe: 50-400 mm (2"-16")
DN Range of Discharing Pipe: 32-350 mm (1.5"-14")
Flow Capacity Range: 50-5000 GPM
Head/Pressure Range: 4-14 Bar
Power Range: 4-325 Kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

Electric pump: kinds of end suction pump, split case pump, multistage pump. made of cast iron, stainless steel.
This pump set refers to the electric motor pumps combinations, the control cabinet, control instrumentation and related accessories. Using pre-programmed way to the fire control network continued water supply of fire water supply equipment.
EJ series fire pump set is mainly installed in a fire truck, fire extinguishing system or other fire control facilities, used for conveying liquids such as water or foam solution agent special pump.Control panel for each pump, DOL starter with thermal over load protection for main electric pump, hand off auto selector switch for each pump, indication lamps for pump run and pump trip, pressure switch for the automatic operation.
Electric pump, closed coupled centrifugal horizontal pumps its casing is made from cast iron and the impeller can be cast iron,stainless steel, brass.The shaft from stainless steel, mechanical seal is carbon/ceramic.

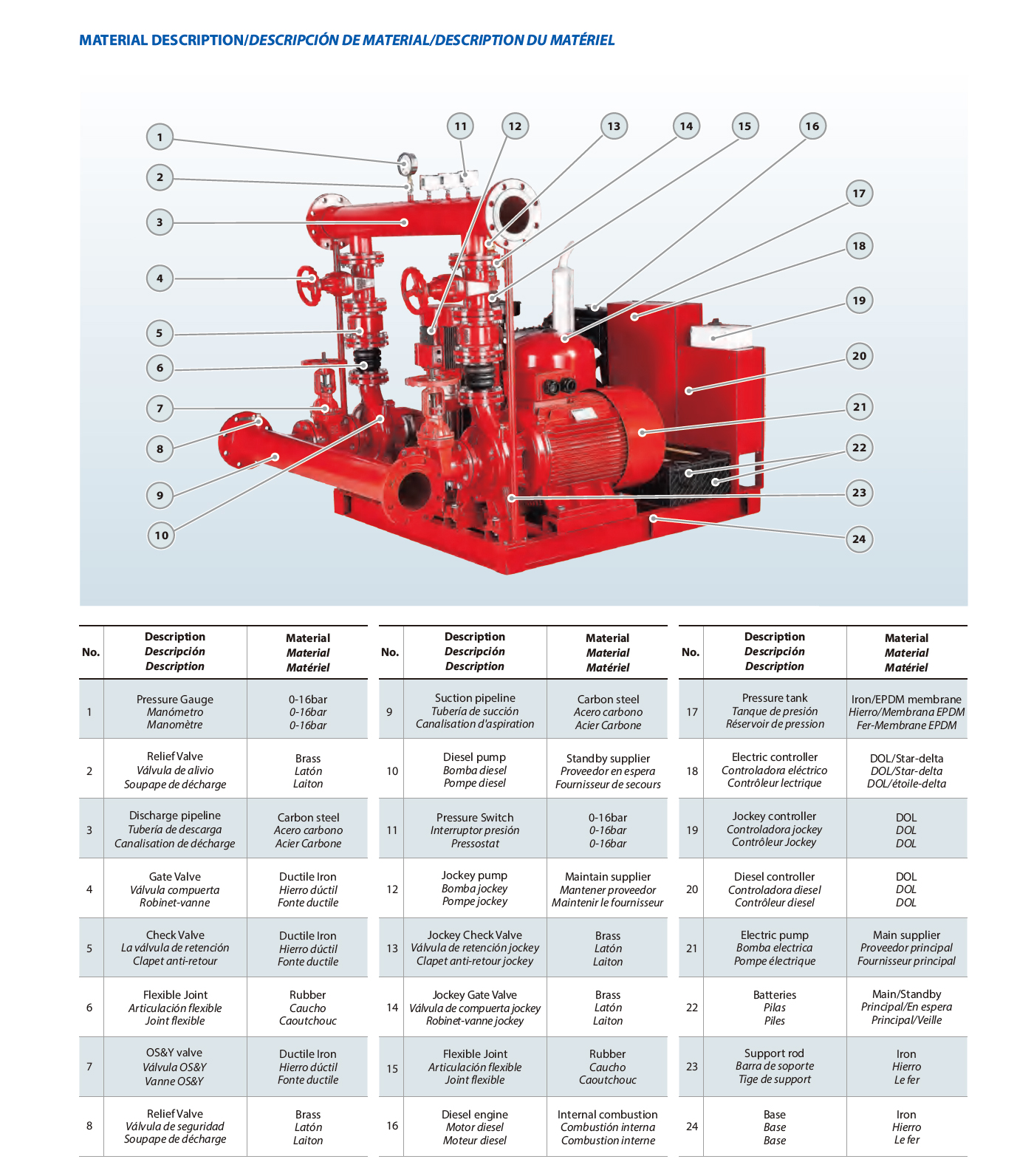

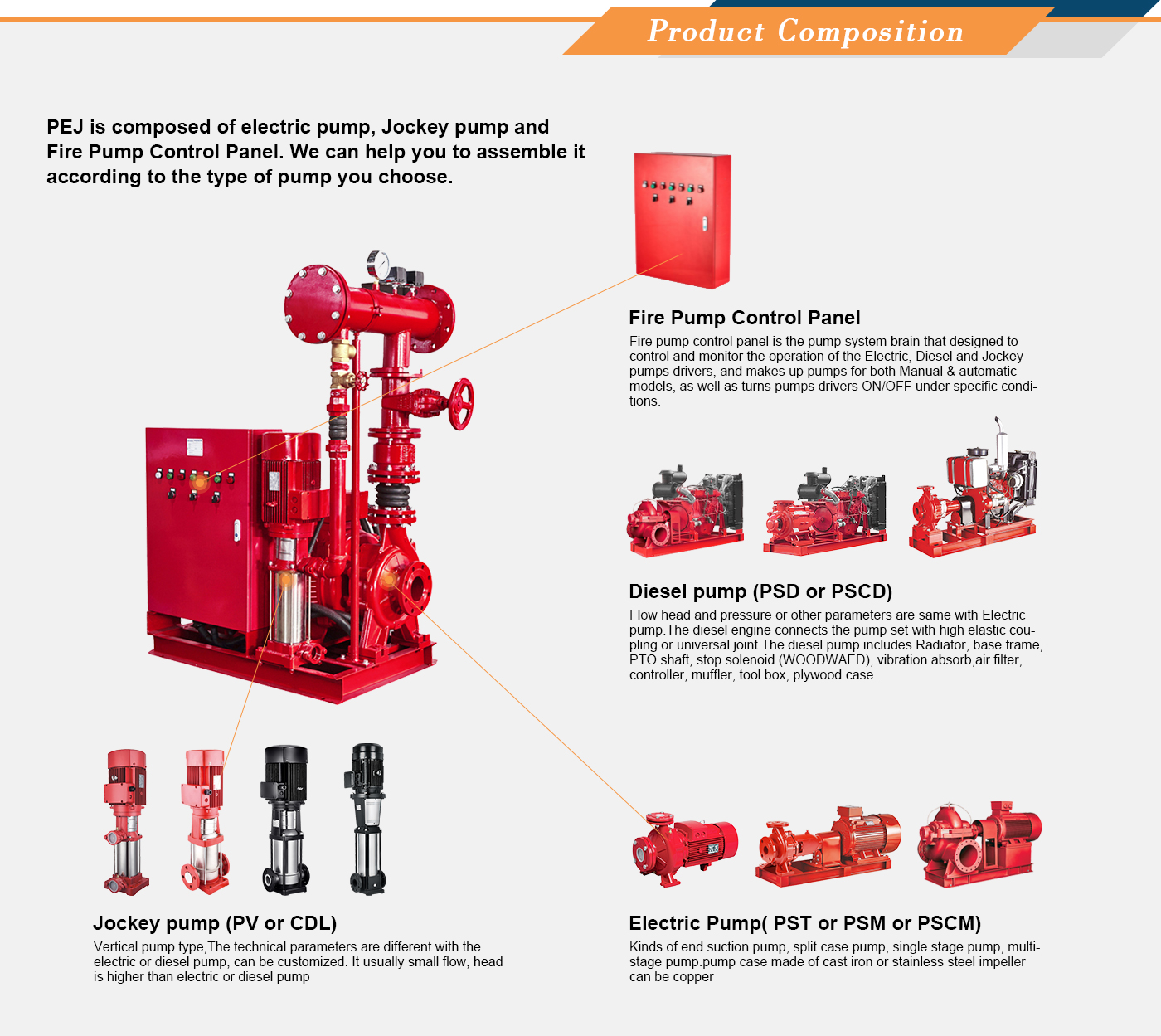

Automatic electric pump unit: electric water pump, jockey pump, steel structure base, (water heater), battery, connecting wires, gate valve,check valve, flexible joints, automatic control panel.

Product Details

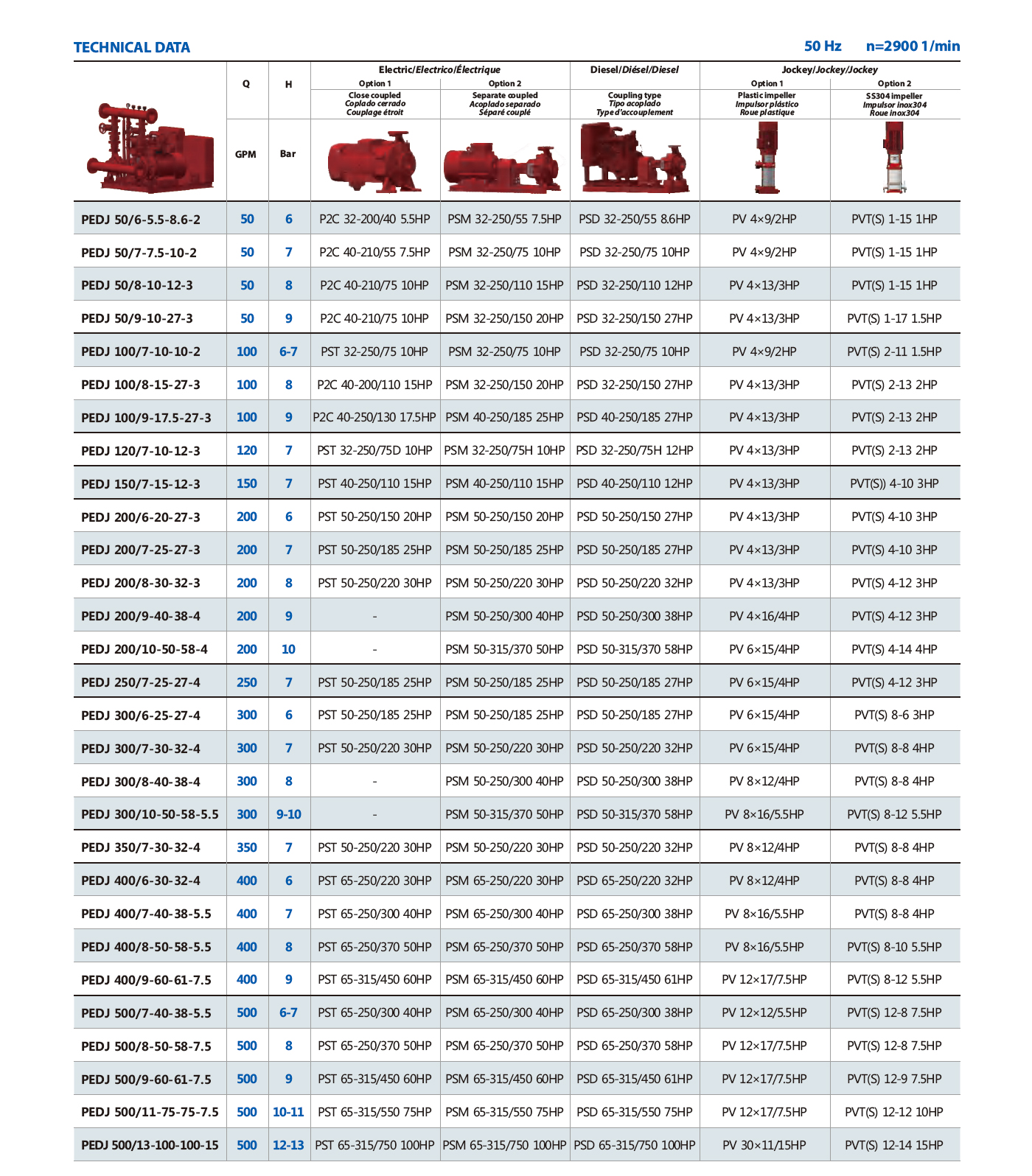

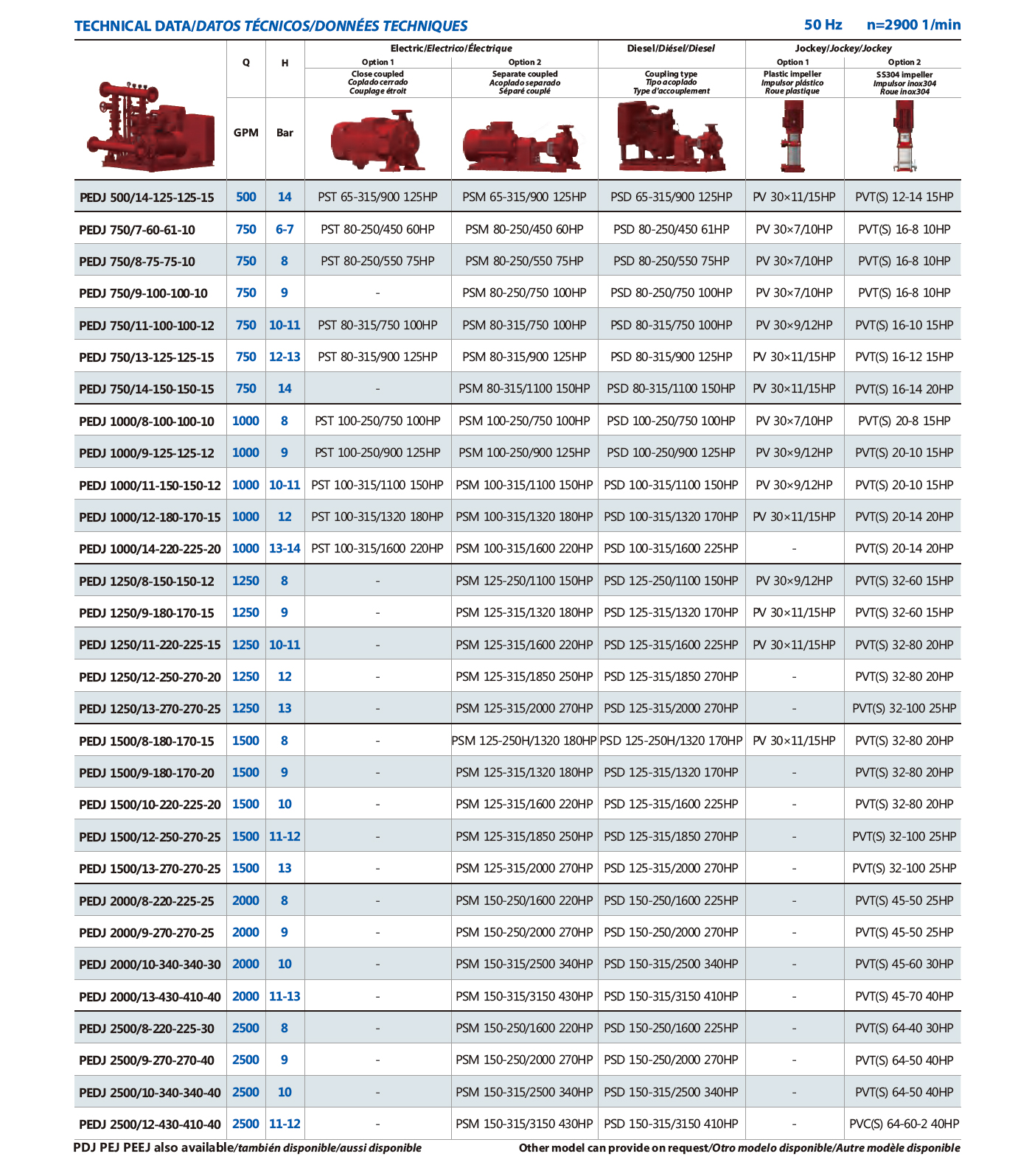

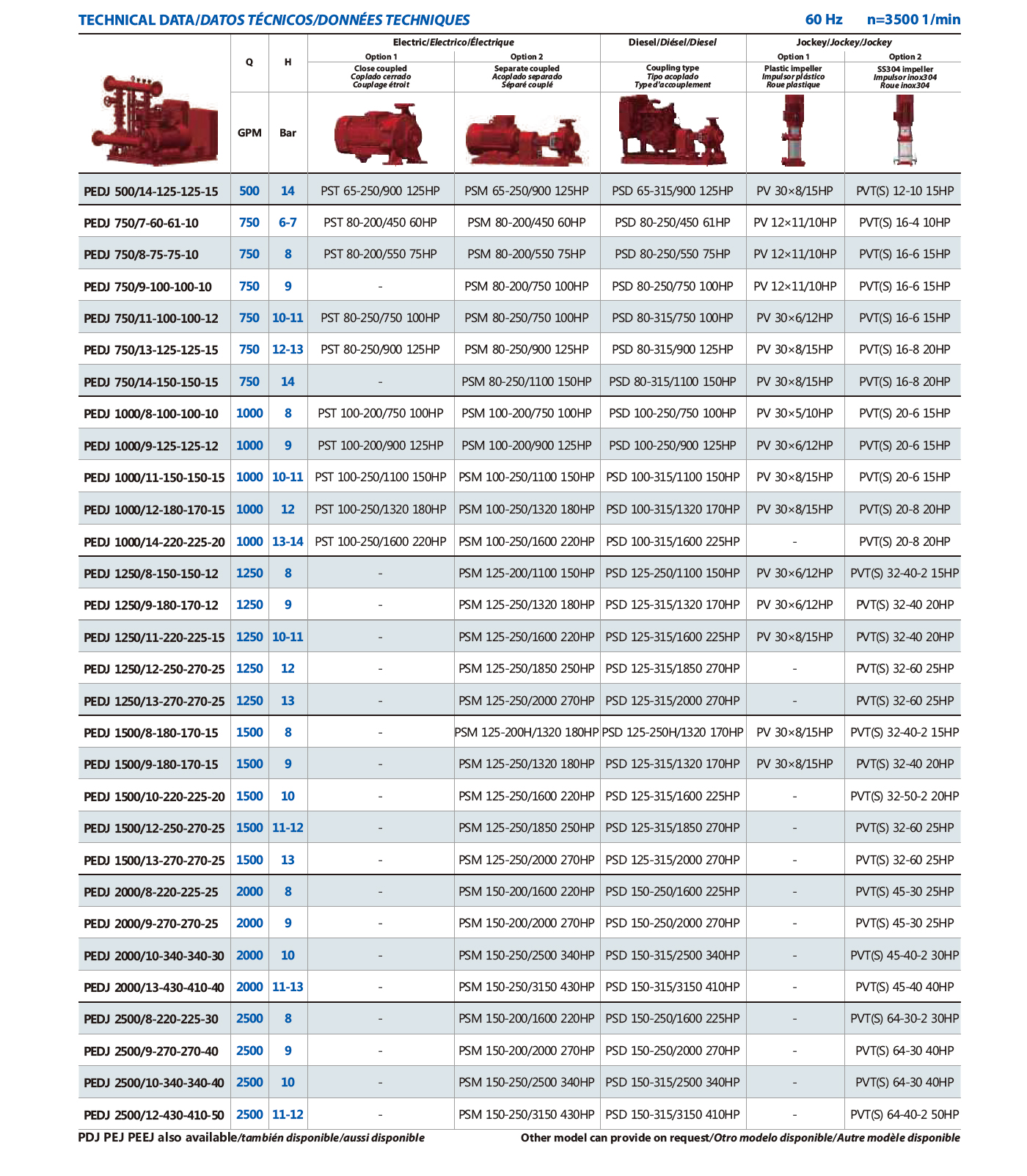

50Hz product parameter

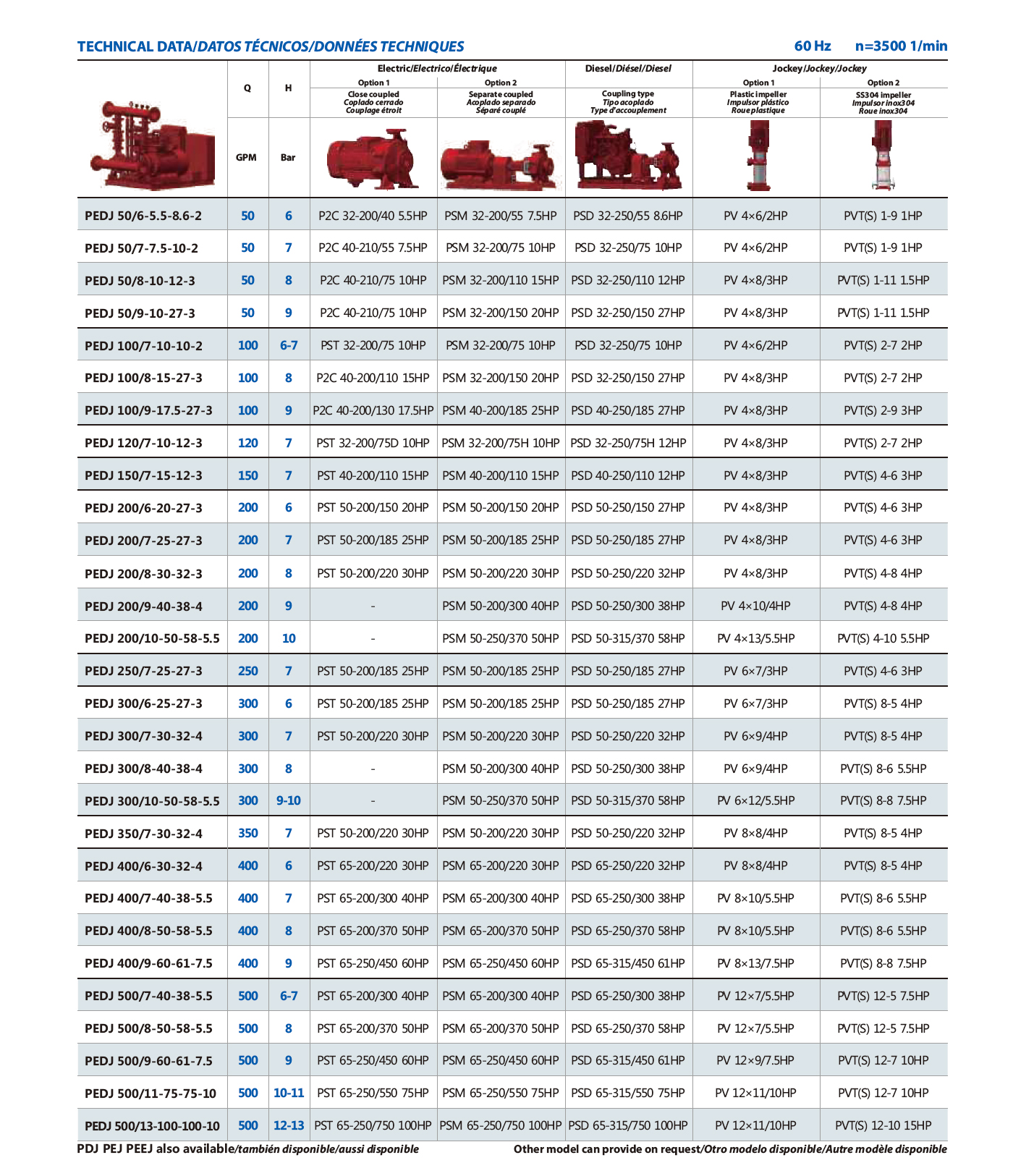

60Hz product parameter
Videos
Q&A

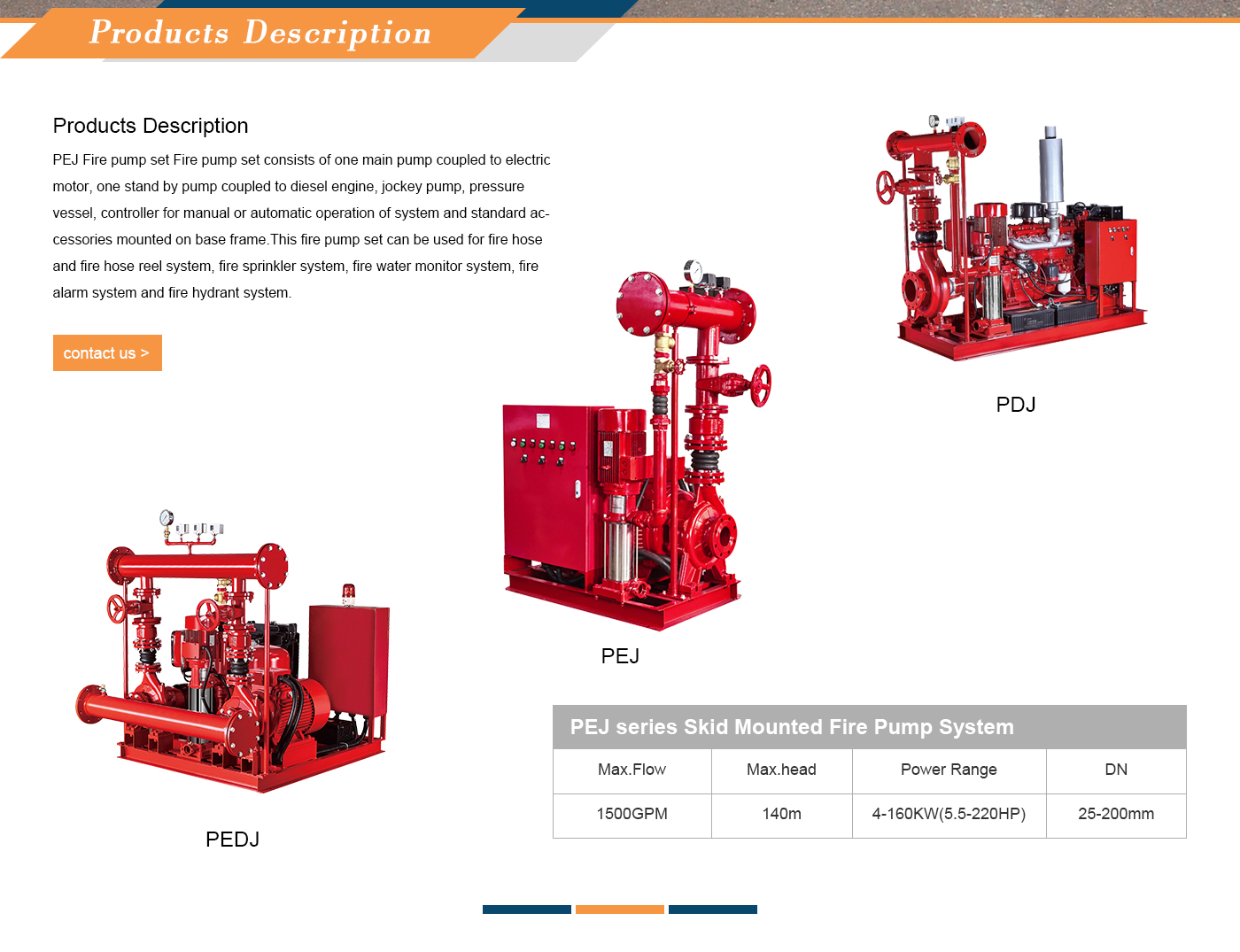

PEJ Fire pump set Fire pump set consists of one main pump coupled to electric motor, one stand by pump coupled to diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of system and standard accessories mounted on base frame.This fire pump set can be used for fire hose and fire hose reel system, fire sprinkler system, fire water monitor system, fire alarm system and fire hydrant system.

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced EJ Electric Jockey Fire Pump With Pressure Tank and Control Panel suppliers and wholesale EJ Electric Jockey Fire Pump With Pressure Tank and Control Panel manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
