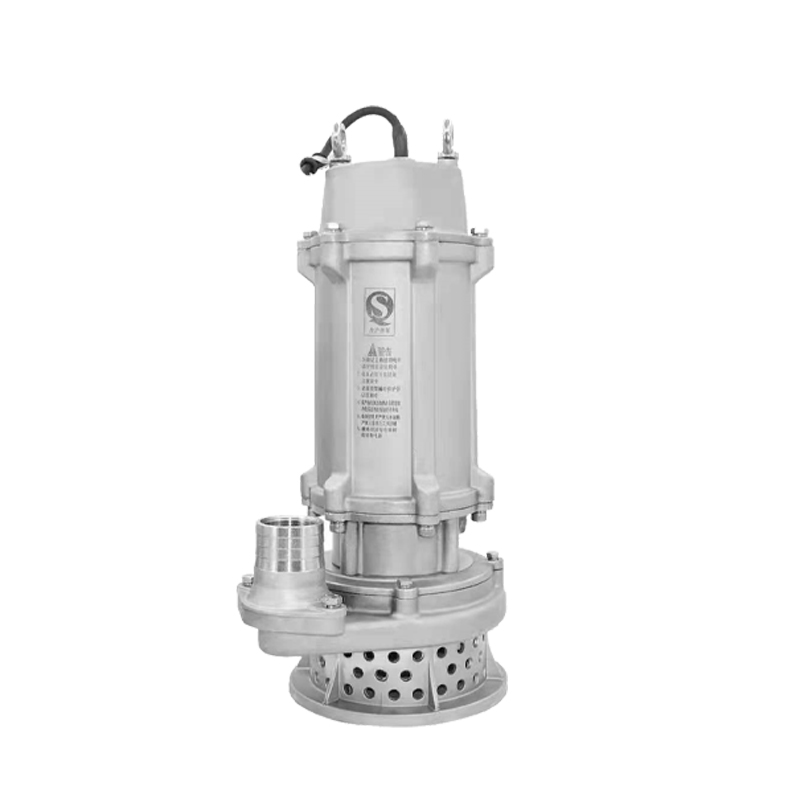

Clean Water Electric submersible water pump
Add to My Favorite List

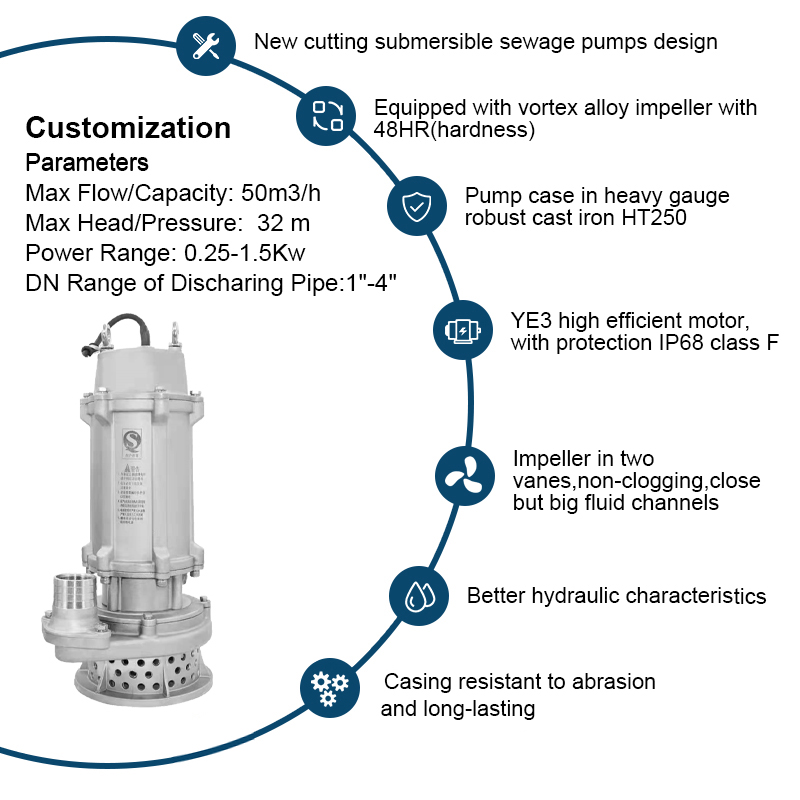

- DN Range of Discharing Pipe:1"-4"
- Max Flow/Capacity: 50m3/h
- Max Head/Pressure: 32 m
- Power Range: 0.25-1.5Kw
- The shaft of electric pump is plated with hard chromium, which effectively improves the abrasion resistance and corrosion resistance of the shaft, and is conducive to the maintenance and disassembly of the impeller.
- The motor is equipped with thermal protector, which can automatically disconnect the power supply to protect the motor in case of phase loss, overload and motor overheating.
- Due to its small size and light weight, this series of electric pumps are especially suitable for underground pumping, farmland irrigation, garden irrigation and domestic water supply in rural areas. It can also be used to remove industrial water, water supply and drainage for construction and aquaculture.
- The pump could delivery water or liquid that physical and chemical similar to water.Liquid temperature shall not higher than 35 ºC.And the max diameter of particle is 5 mm.
- Product Details

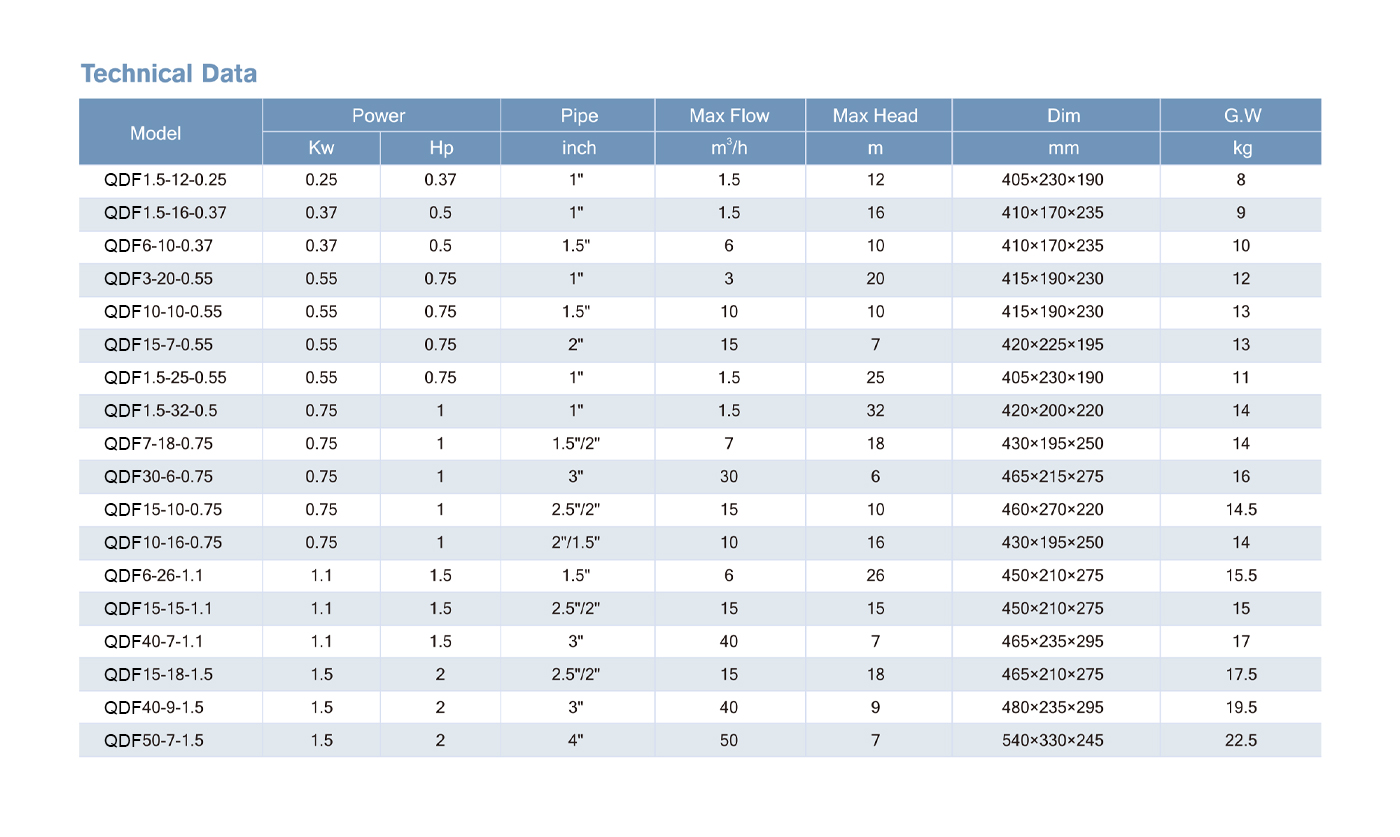

- 50Hz product parameter
- 60Hz product parameter
WQF series submersible pump consist of pump, seal and motor, ,and equipmented with protection apparatus.It is designed for clean water, widely used for drawing water from well, farm irrigation, garden, building construction, breeding industry, and daily life. Moreover, it has small volume and light weight, more easy to use.
