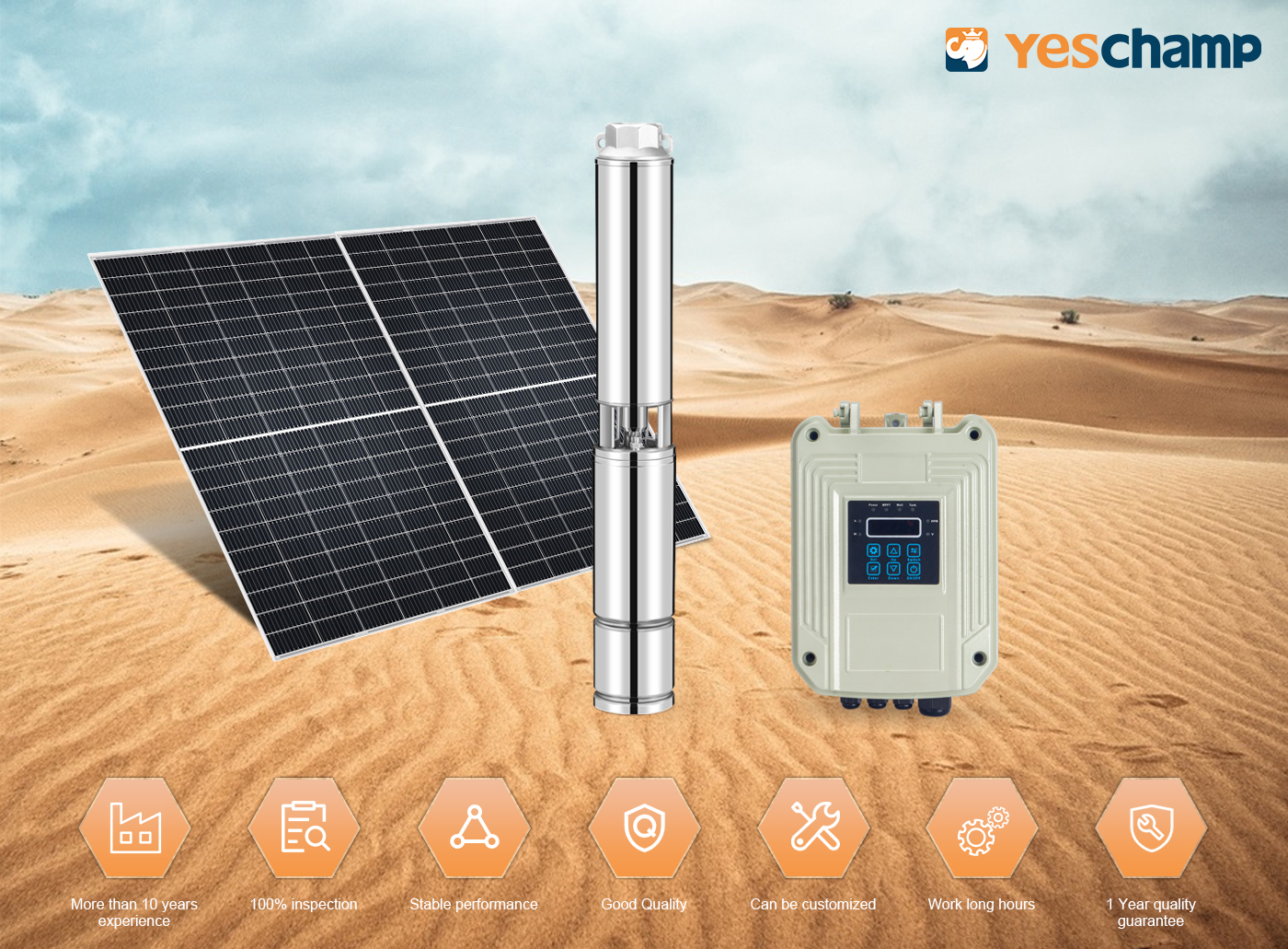

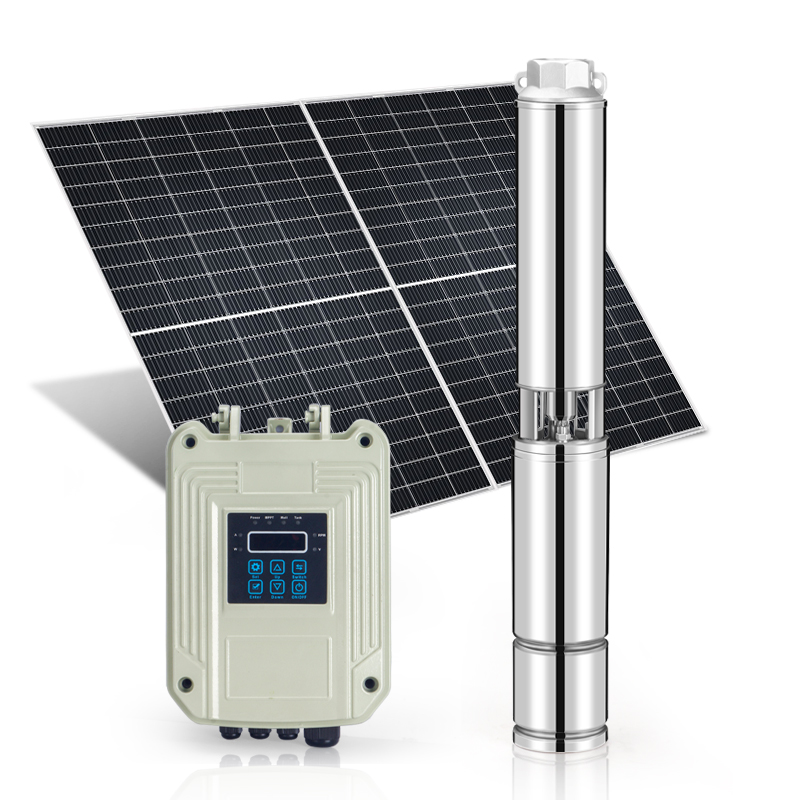

YCPS series DC deep well solar pump with plastic impeller

Borehole Pump

DN Range of Pump : 75mm/100mm (3"/4")
DN Range of Discharing Port: 25-50 mm (1"-2")
Flow Capacity Range: 0-18 m3/h
Head/Pressure Range: 0-145 m
Power Range: 300-1720w

Chat Now Inquiry Now Add to My Favorite List Download Catalog

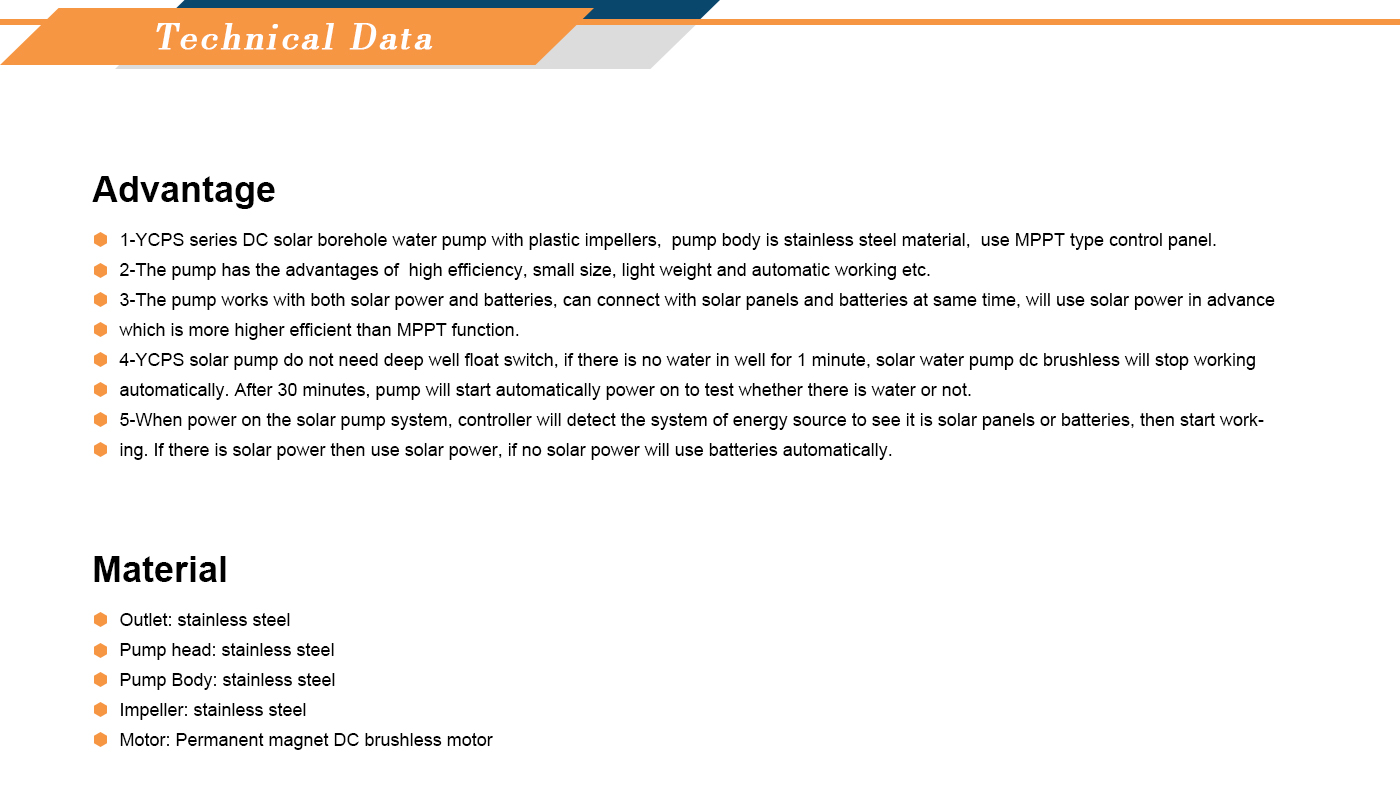

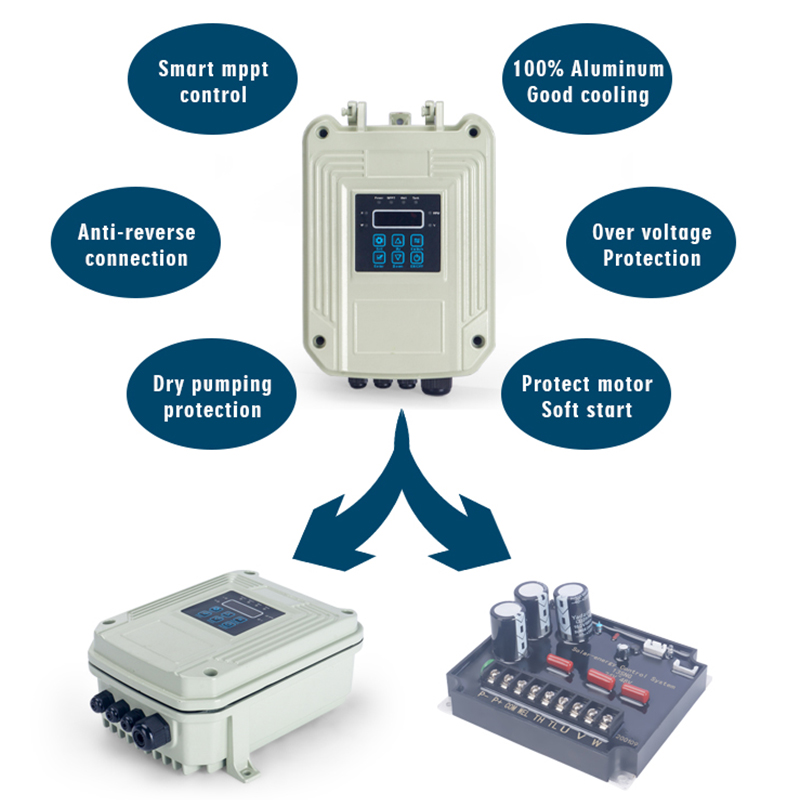

YCPS series DC solar borehole water pump with plastic impellers, pump body is stainless steel material, use MPPT type control panel.
The pump has the advantages of high efficiency, small size, light weight and automatic working etc.
The pump works with both solar power and batteries, can connect with solar panels and batteries at same time, will use solar power in advance which is more higher efficient than MPPT function.
YCPS solar pump do not need deep well float switch, if there is no water in well for 1 minute, solar water pump dc brushless will stop working automatically. After 30 minutes, pump will start automatically power on to test whether there is water or not.
When power on the solar pump system, controller will detect the system of energy source to see it is solar panels or batteries, then start working. If there is solar power then use solar power, if no solar power will use batteries automatically.

Product Details

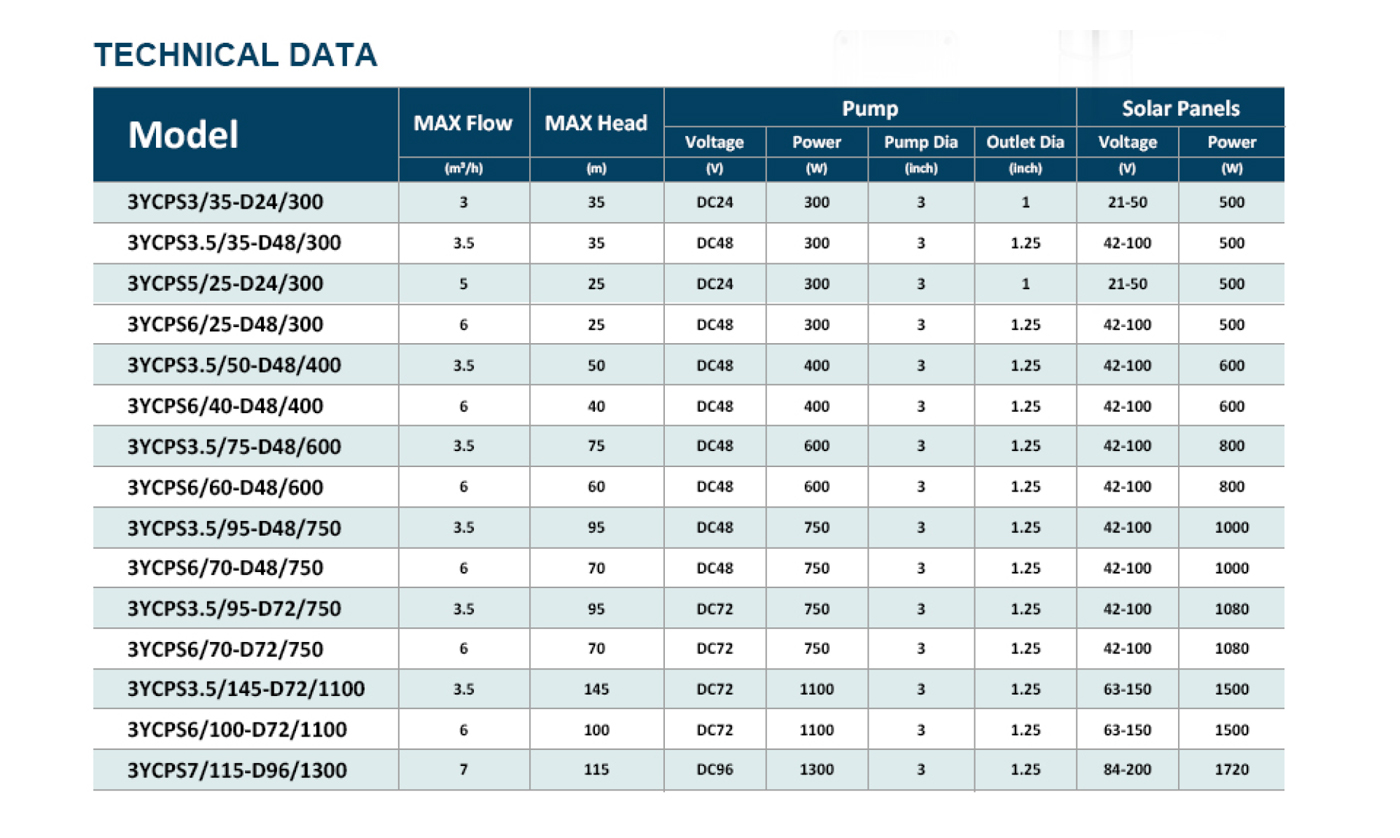

50Hz product parameter
60Hz product parameter
Videos
Q&A

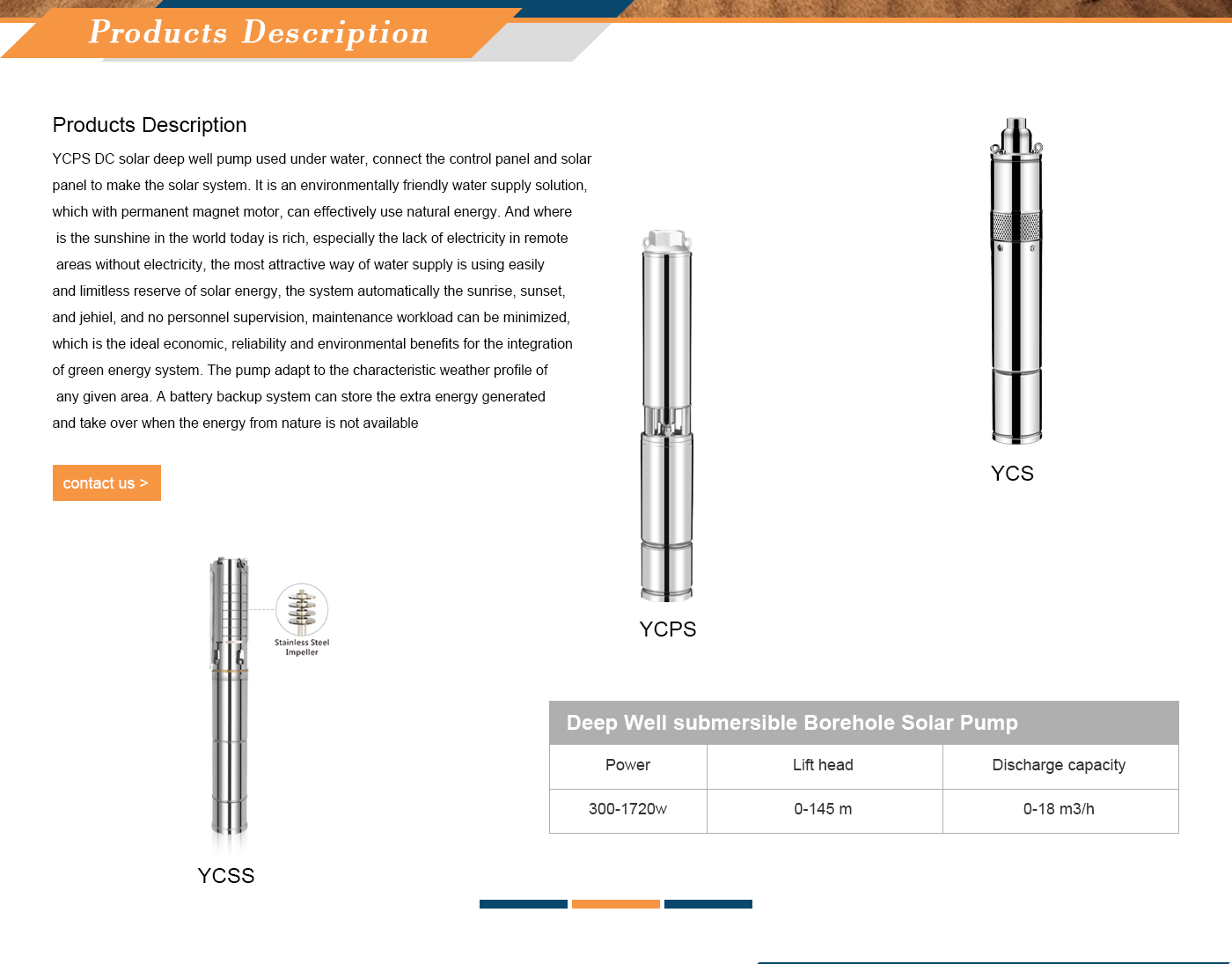

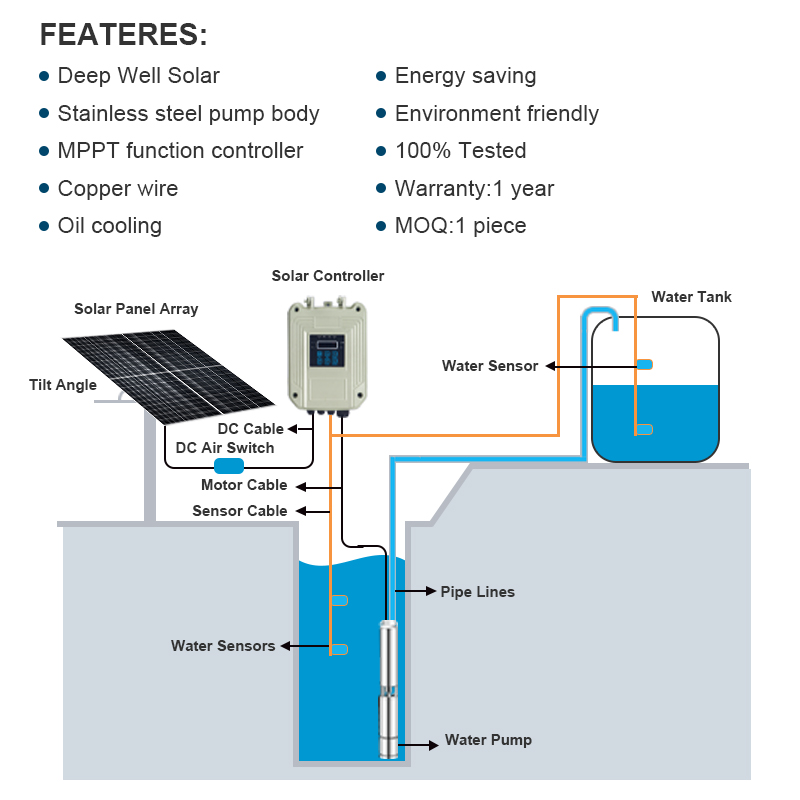

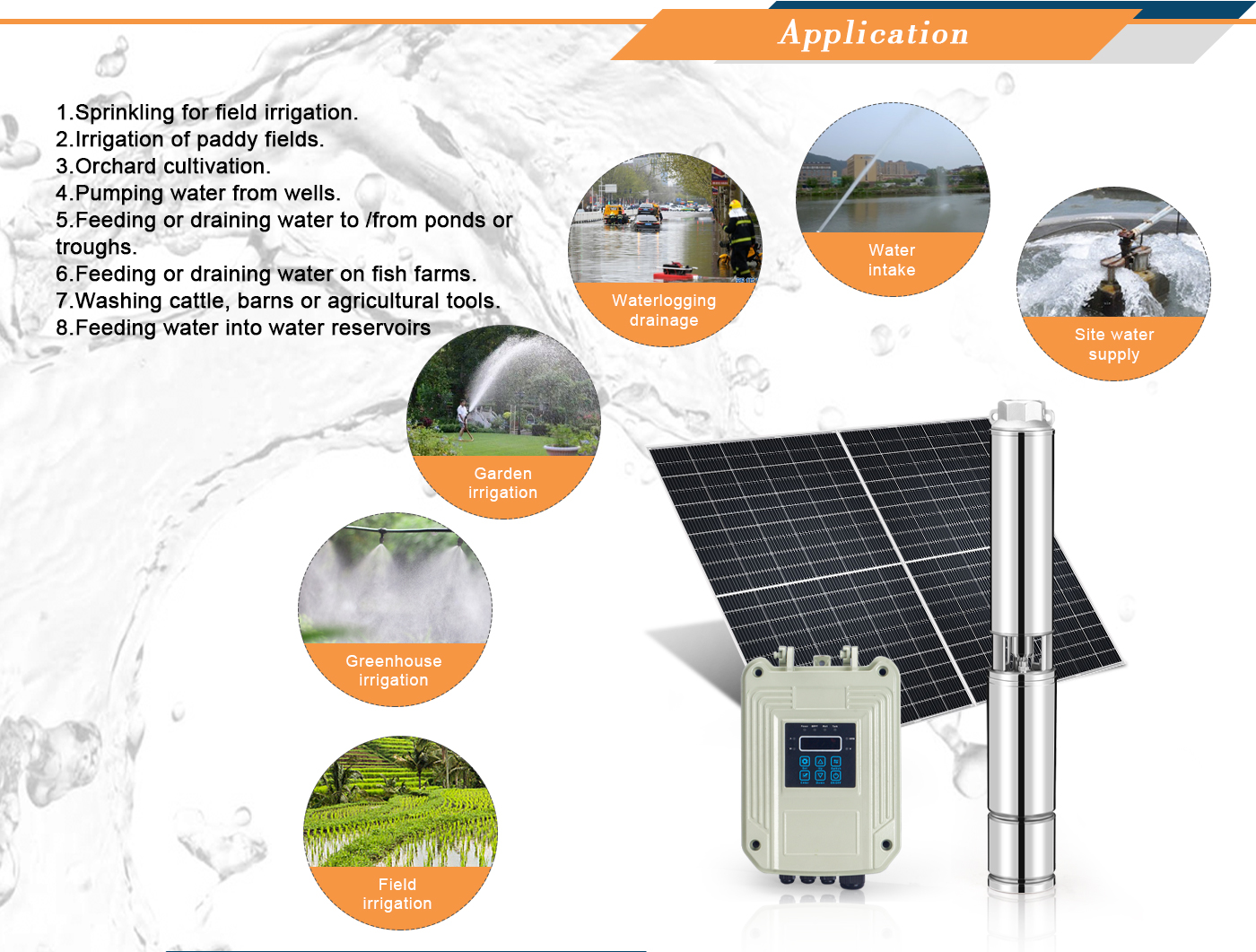

YCPS DC solar deep well pump used under water, connect the control panel and solar panel to make the solar system. It is an environmentally friendly water supply solution, which with permanent magnet motor, can effectively use natural energy. And where is the sunshine in the world today is rich, especially the lack of electricity in remote areas without electricity, the most attractive way of water supply is using easily and limitless reserve of solar energy, the system automatically the sunrise, sunset, and jehiel, and no personnel supervision, maintenance workload can be minimized, which is the ideal economic, reliability and environmental benefits for the integration of green energy system. The pump adapt to the characteristic weather profile of any given area. A battery backup system can store the extra energy generated and take over when the energy from nature is not available

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced YCPS series DC deep well solar pump with plastic impeller suppliers and wholesale YCPS series DC deep well solar pump with plastic impeller manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
