PV series high pressure vertical multistage booster pump

Multistage pump

DN Range of Suction Pipe: 25-65 mm (1"-2.5")
DN Range of Discharing Pipe: 25-65 mm (1"-2.5")
Flow Capacity Range: 0-48 m3/h
Head/Pressure Range: 0-176 m
Power Range: 1.1-11 Kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

PV series vertical multistage pump is direct coupled with YE3 high efficient motor, which is IP55 protection, class F insulation and 2pole speed.
PV series pump use PPO high temperature resistant impeller, which can keep the performance and deduce the pump cost.
The suction and discharge port of PV series pump are G20 thread, with same diameter, cast iron material
PV series booster pump can component the water supply system to transfer water to high buildings, hotels, hospital, also can used as jockey pump in Fire Fighting Systems to keep the pressure

Product Details
50Hz product parameter

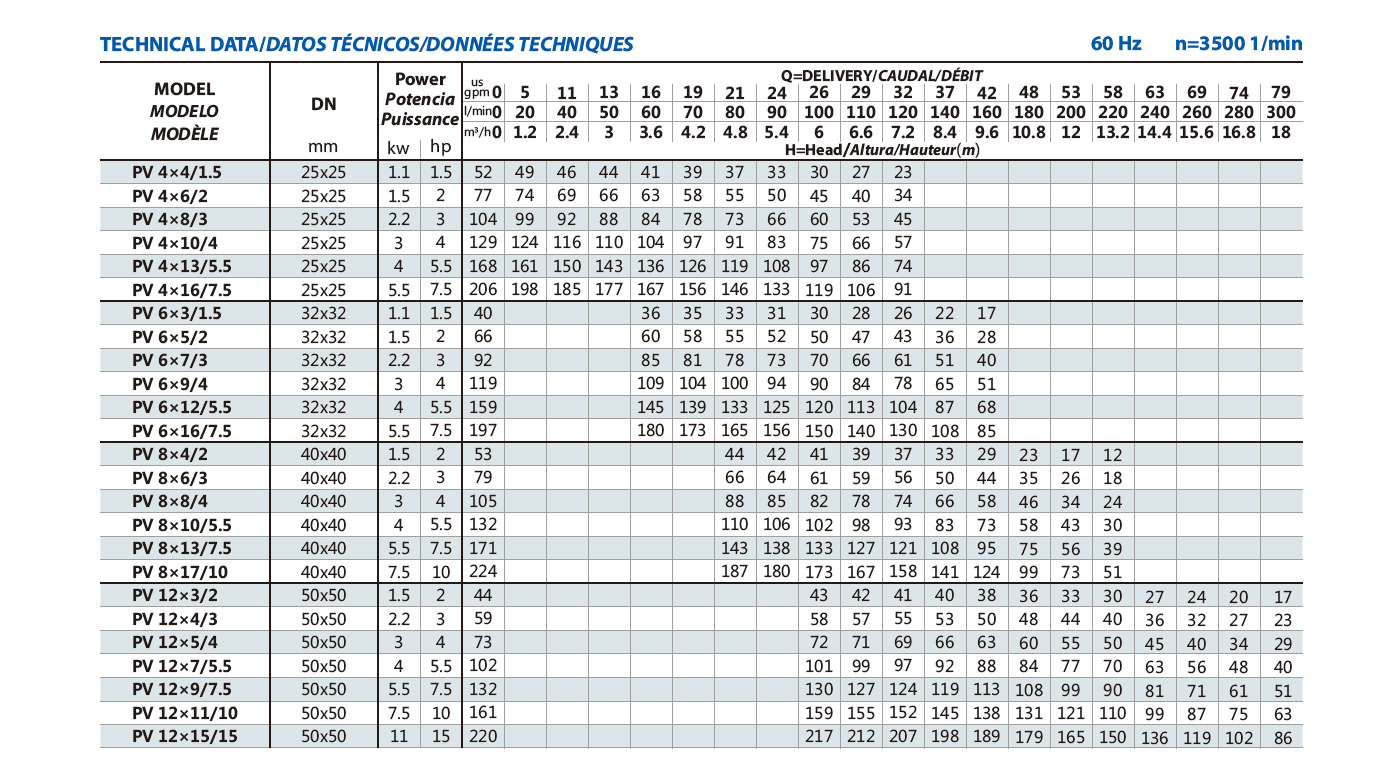

60Hz product parameter
Videos
Q&A

PV series high pressure vertical multistge booster pump is available with a PPO impeller and a heavy-duty cast iron base and motor bracket. It offers a wide range of options and designs due to the combination of durable and innovative construction methods. It is used for multiple applications in the water market, like high building water supply, irrigation, agriculture, fire fighting system etc.

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced PV series high pressure vertical multistage booster pump suppliers and wholesale PV series high pressure vertical multistage booster pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
