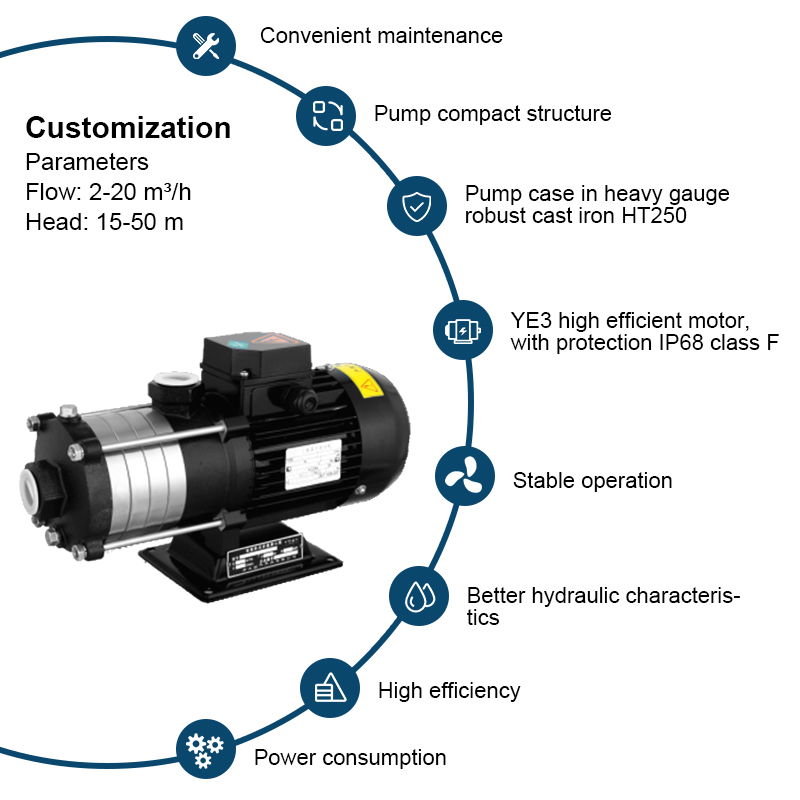

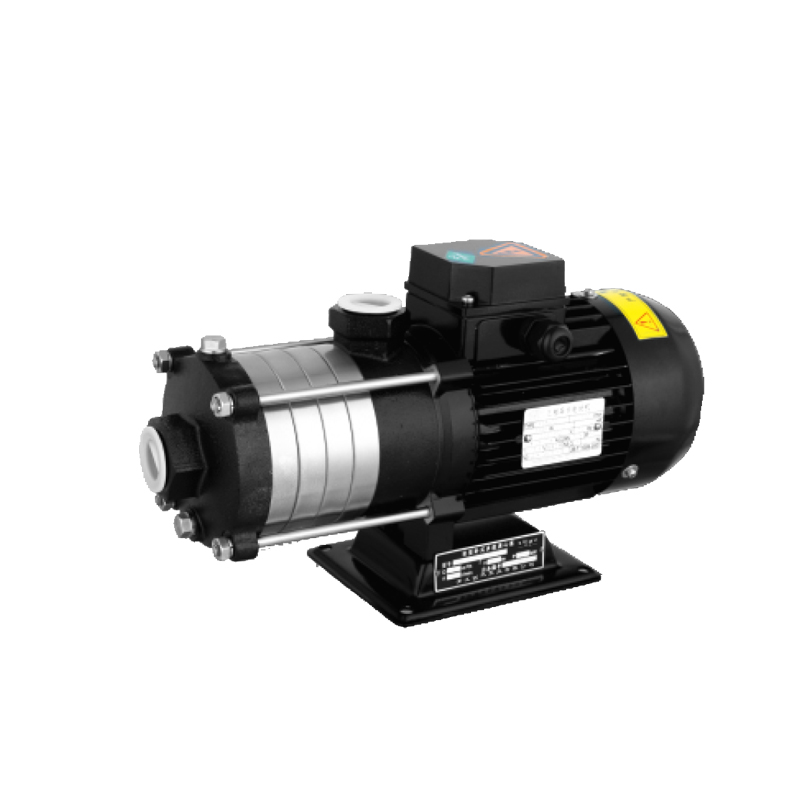

CHLF light type stainless steel horizontal centrifugal multistage high pressure water pump
- Flow:2-20m3/h
- Head:15-50m
- Power Range:0.37-4KW (0.5-5.5HP)
Chat Now
Inquiry Now
Add to My Favorite List
Download Catalog
- All of its flow passage parts adopt high-quality stainless steel plates with stamping and welding so that it’s applicable for mildly corrosive media.
- The product adopts excellent hydraulic model and advanced manufacturing process, so it has such advantages as wide application scope, high efficiency, energy saving and reliable quality.
- Used for water and Clean Liquid circulation in heating, ventilation and air conditioning systems, and for pressure boosting in industrial applications.
- CHLF is flow passage components stainless steel 304 or 316.
- *Air-conditioning system
*Cooling system
*Industrial cleaning
*Water treatment(Water purification)
*Aquiculture
*Fertilizing/metering system
*Environmental application
*Other special application
- Product Details

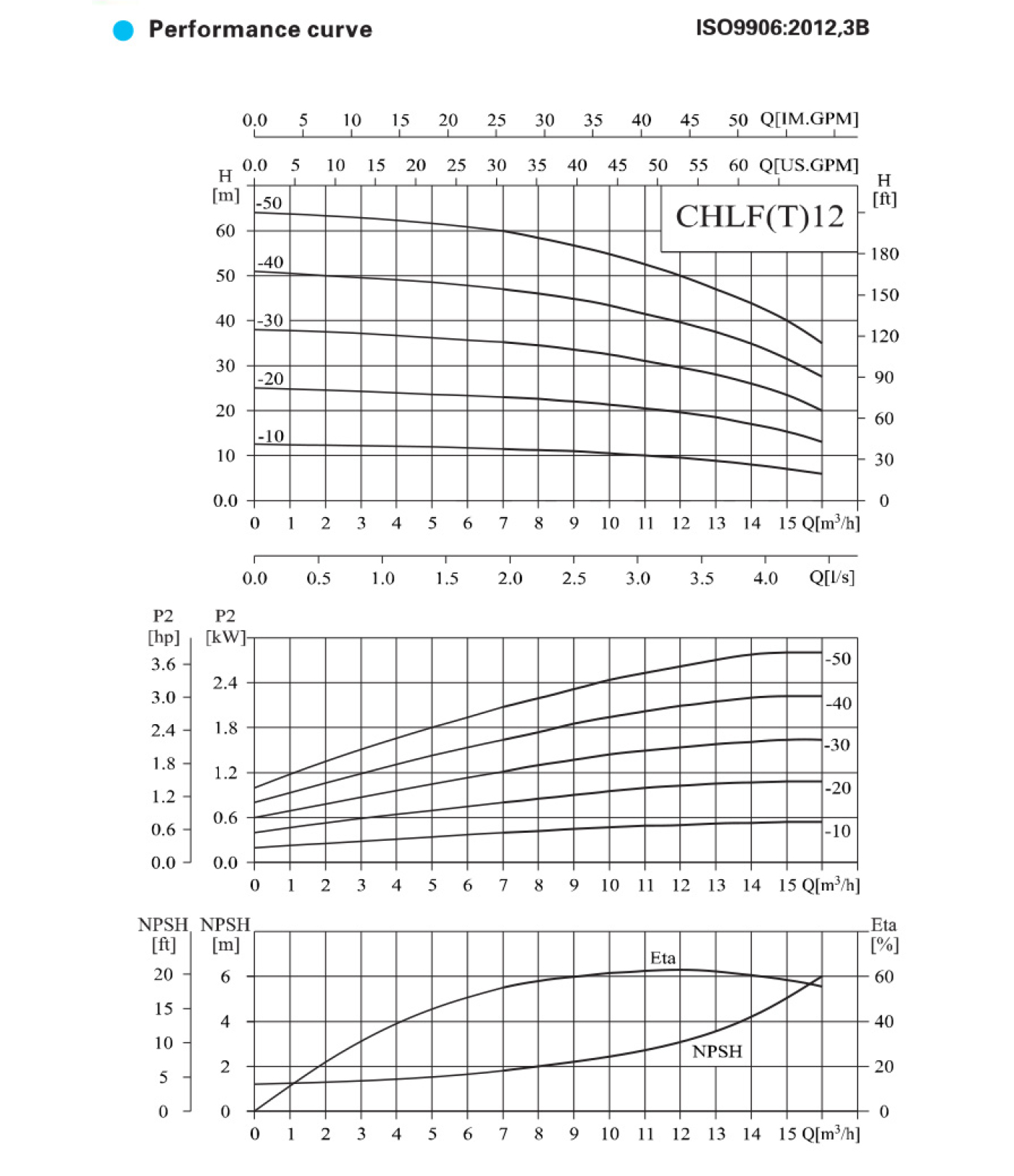

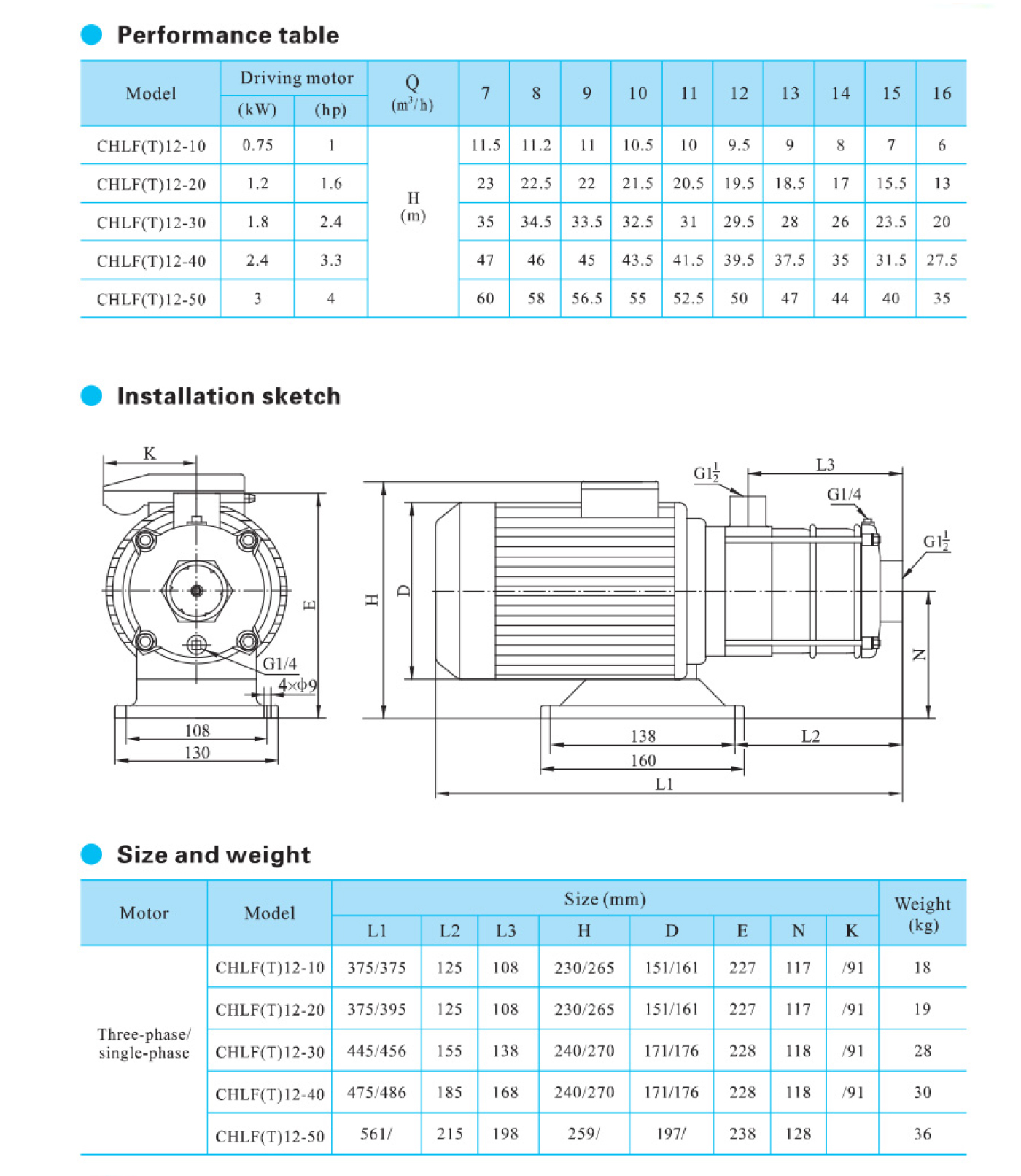

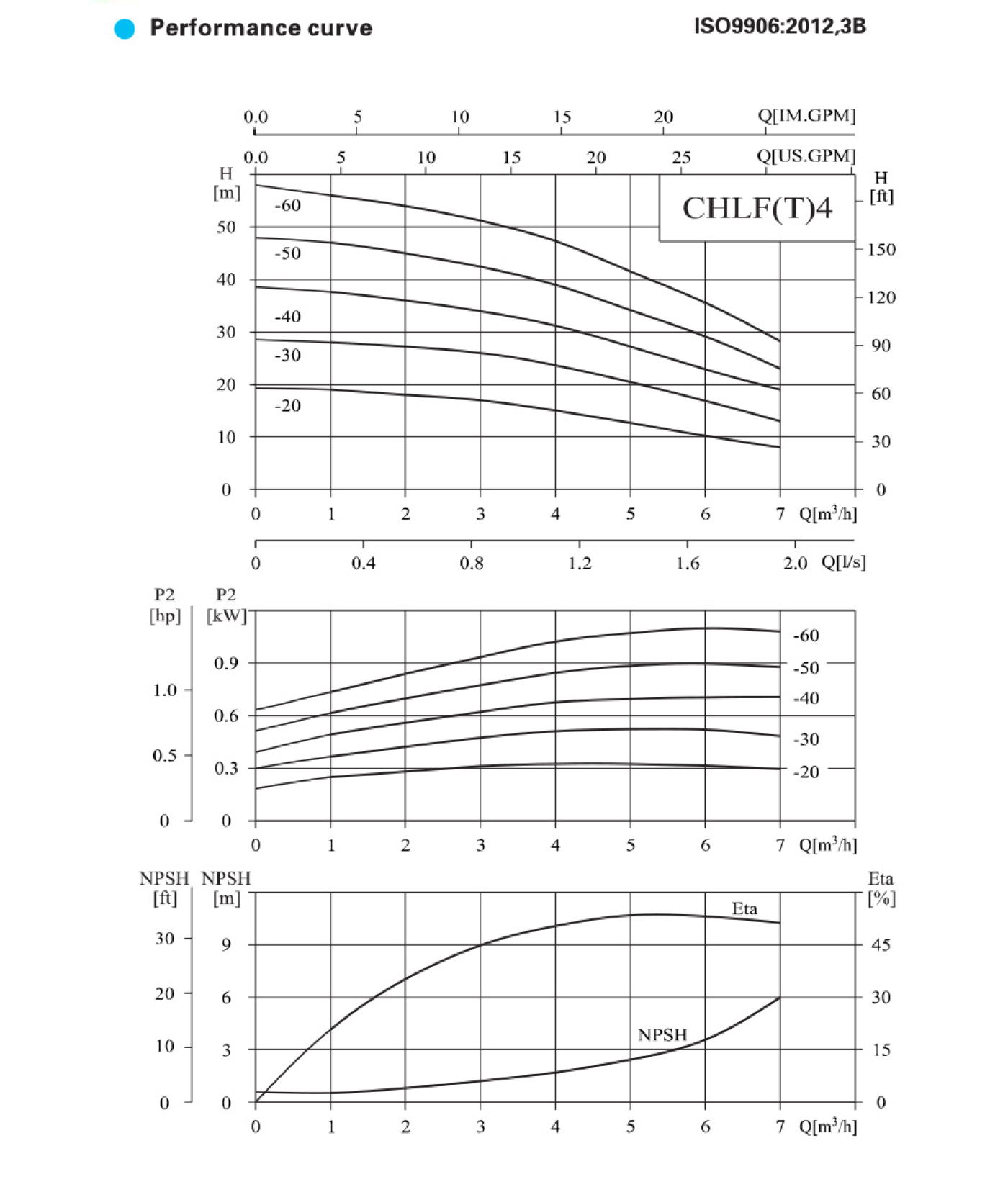

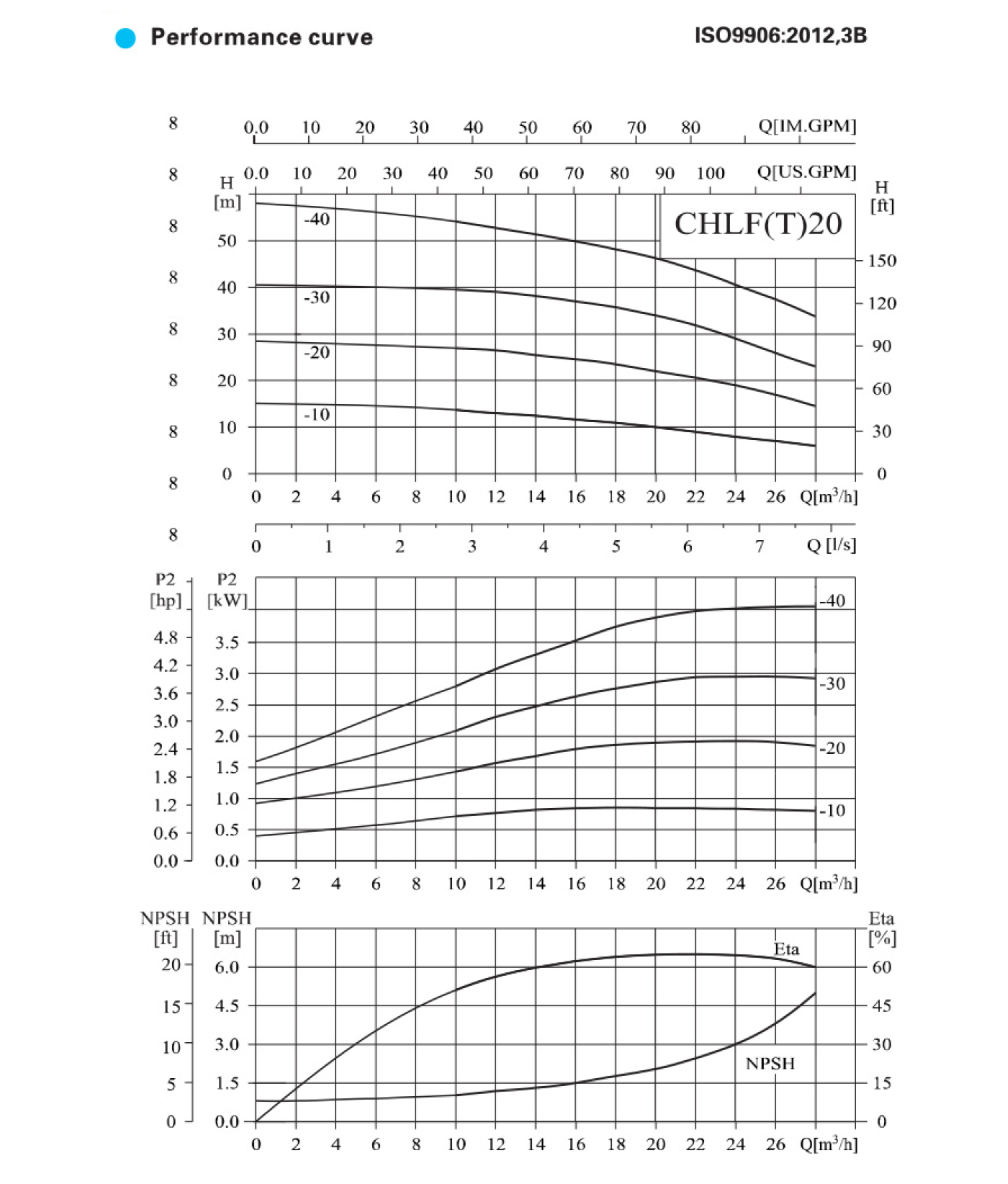

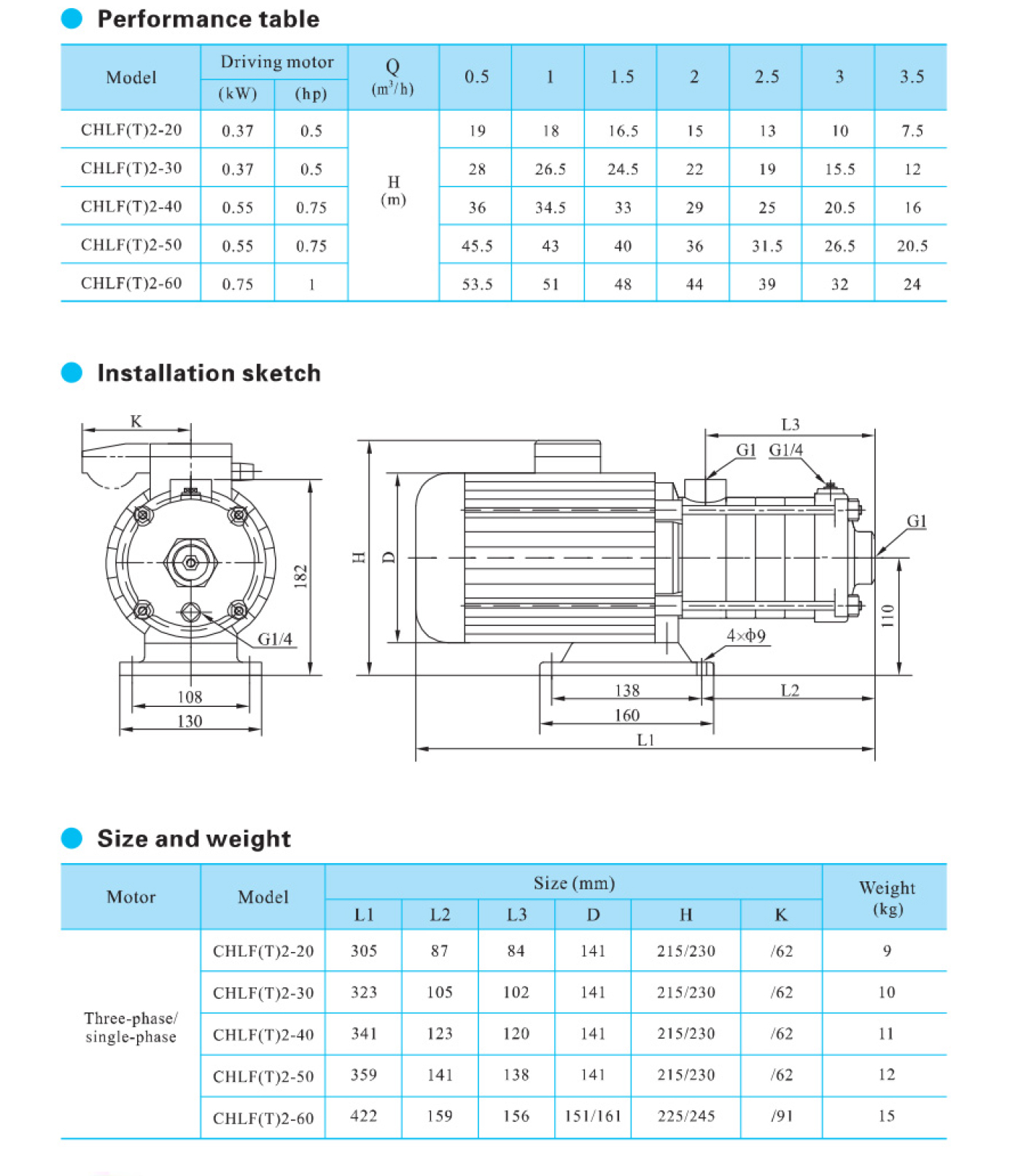

- 50Hz product parameter

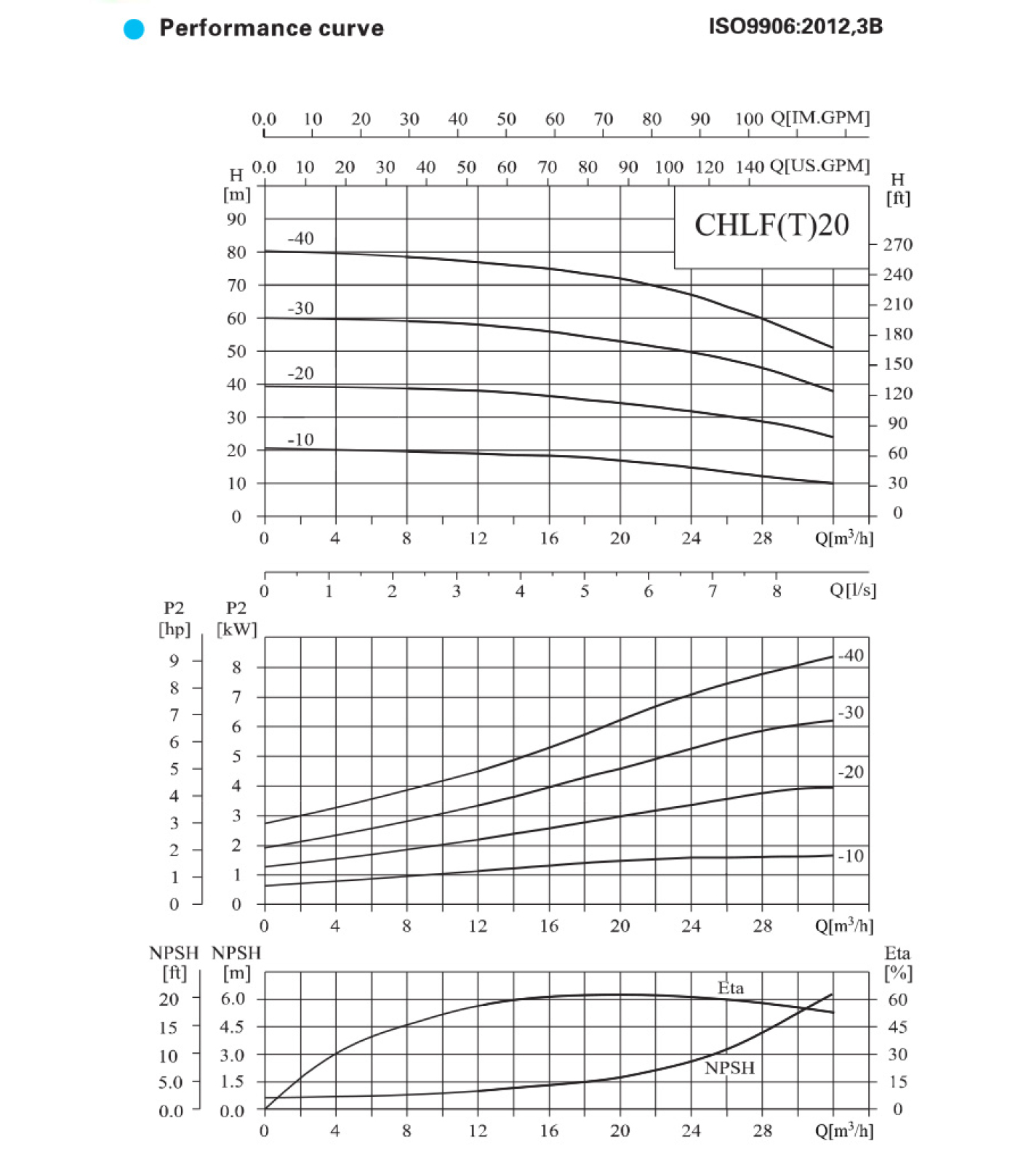

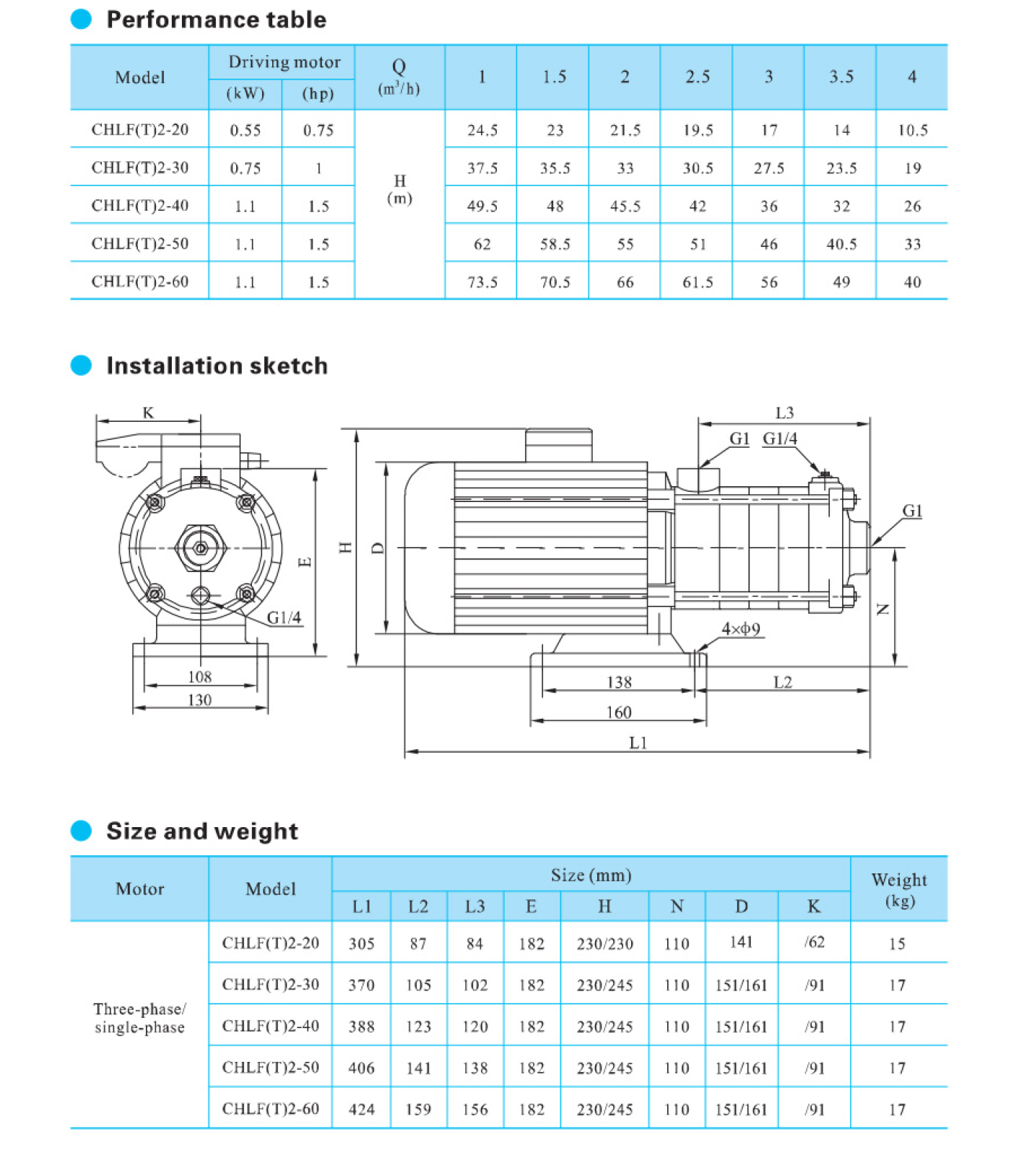

- 60Hz product parameter
- Videos
- Q&A

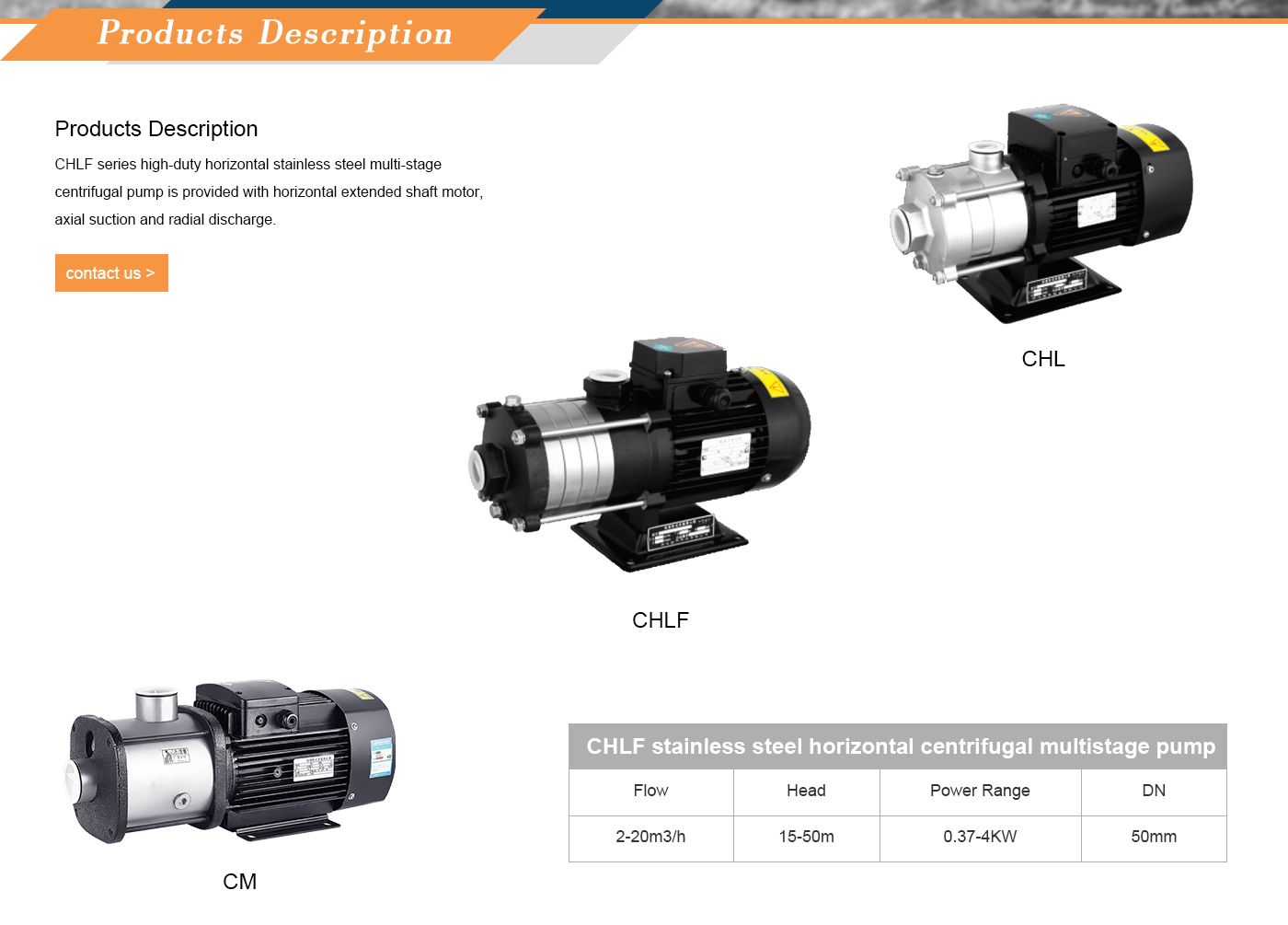

CHLF series high-duty horizontal stainless steel multi-stage centrifugal pump is provided with horizontal extended shaft motor, axial suction and radial discharge.
