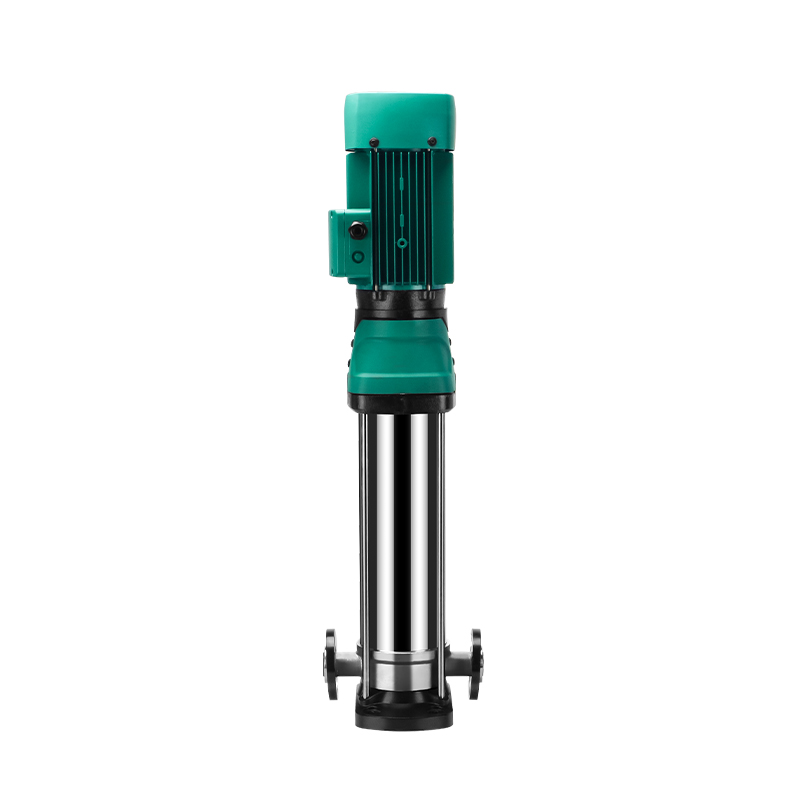

CDMF High efficient Light Vertical Stainless Steel Multistage Centrifugal Pump

• DN Suction size: 25-150 mm (1"-6")
• DN Discharge size: 25-150 mm (1"-6")
• Flow Capacity Range: 0.5-240m3/h
• Head/Pressure Range: 4-305m
• Power Range: 0.37-110kw

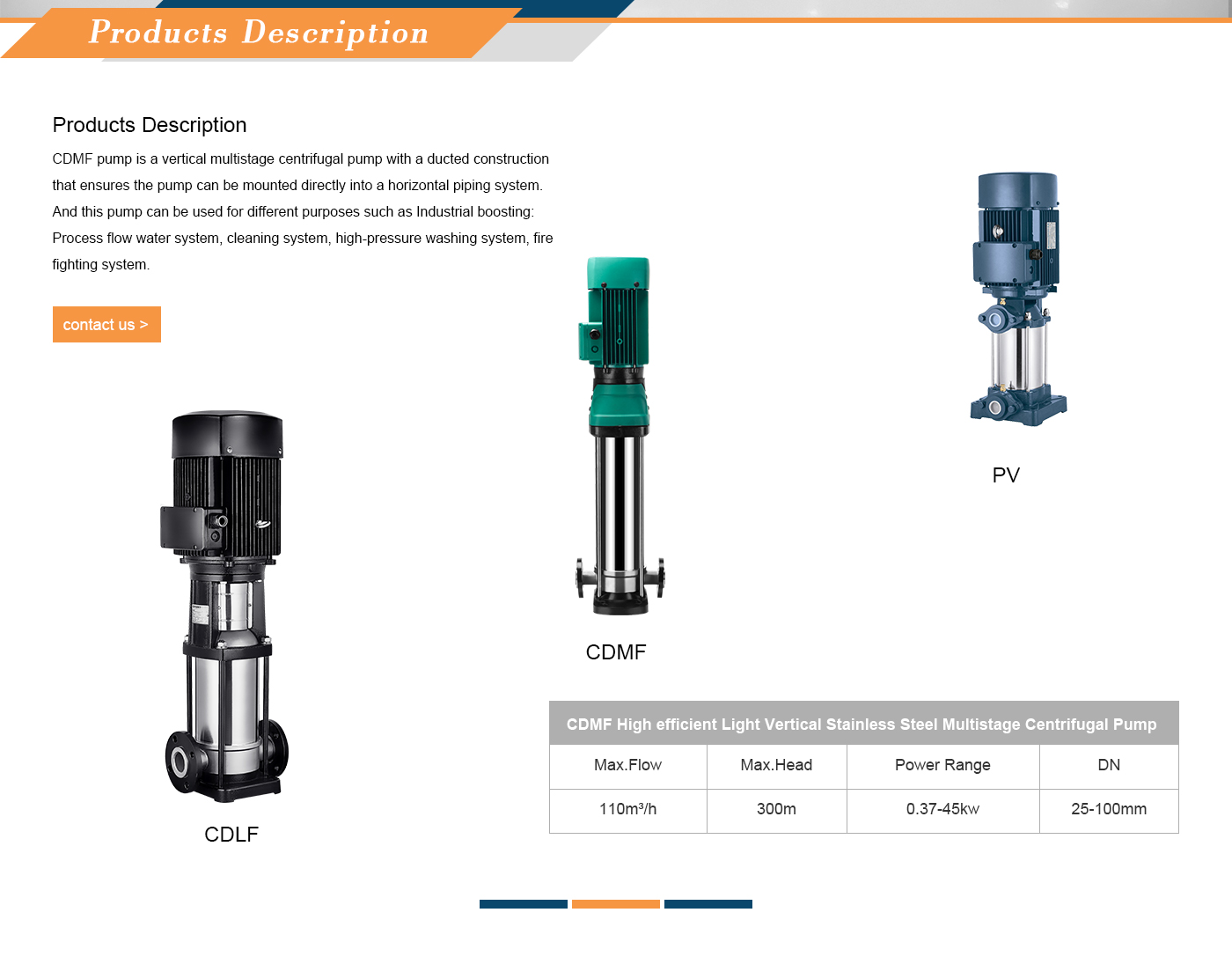

CDMF pump is a vertical multistage centrifugal pump with a ducted construction that ensures the pump can be mounted directly into a horizontal piping system. And this pump can be used for different purposes such as Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system.

• CDMF is suitable for light corrosive liquid and a variety of applications from the pumping of potable water to the pumping of industrial liquids. Applied for liquids of different temperature, different rated flow, different pressure range.
• The inside impeller, casing and other main components are all stainless stee.
• The pump body has the advantages of stamping pump, standard impeller, small flow and high head. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.
• This simple pump structure, simple installation and convenient maintenance.
• And 100% copper coil is used to ensure the service life of the motor.For extensive application, which can be widely used in life, industry, agriculture and other fields.
• The use medium is clear water, clean, non-corrosive, non-explosive water and physical and chemical liquids.
