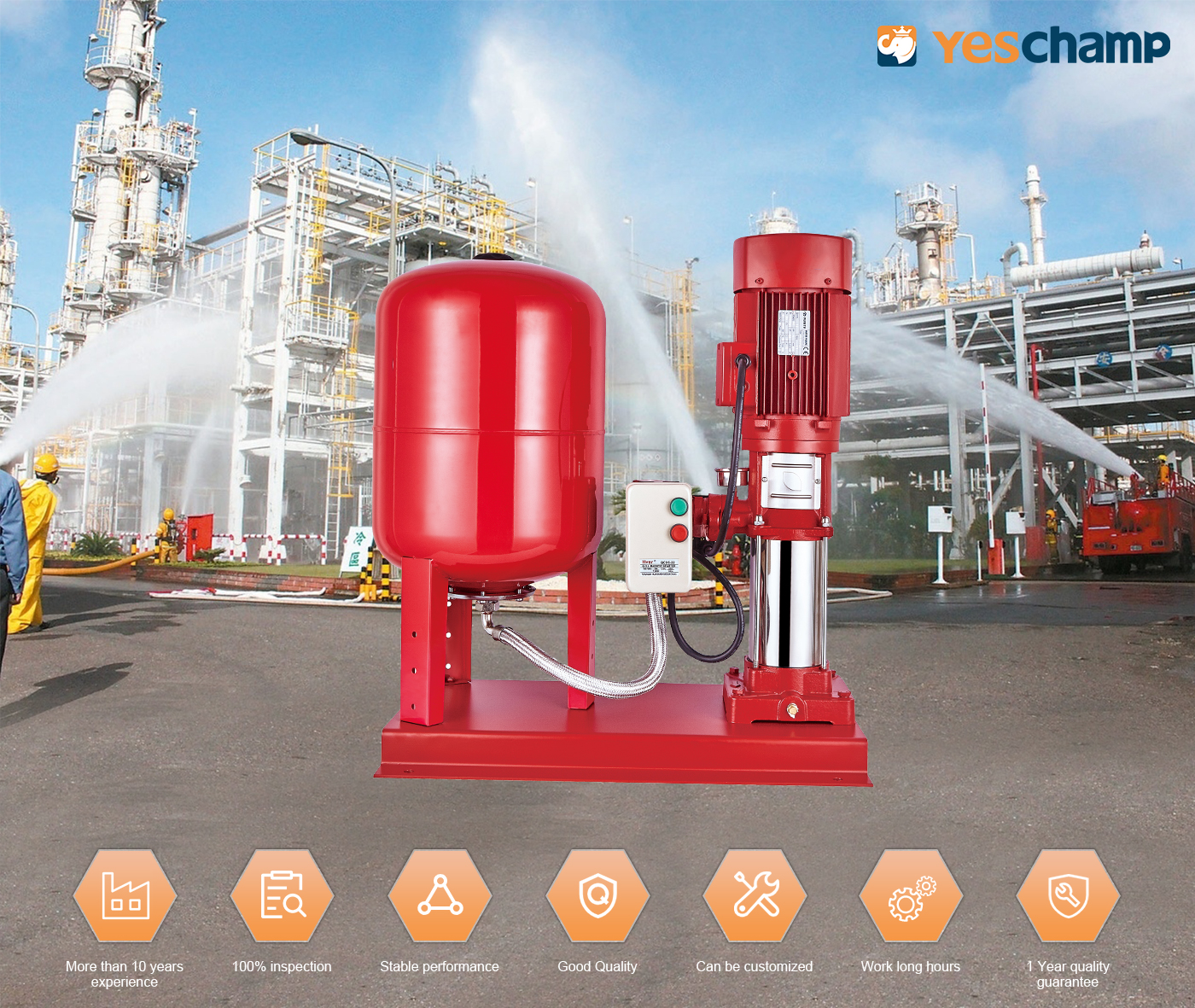

PVK system with jockey pump and pressure tank

Fire Pump and System

DN Range of Suction Pipe: 25-65 mm (1"-2.5")
DN Range of Discharing Pipe: 25-65 mm (1"-2.5")
Flow Capacity Range: 25-150 GPM
Head/Pressure Range: 0-163 m
Power Range: 2.2-11 Kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

PVK is the new jockey +tank system design.
PVF series pump with the advantage of high pressure, usually used as jockey pump in fire fighting system to keep the fire system pressurized during non-fire conditions and prevent unnecessary cycling of the main fire pump, which offers a technically advanced design to meet the hydraulic demand of any fire suppression system

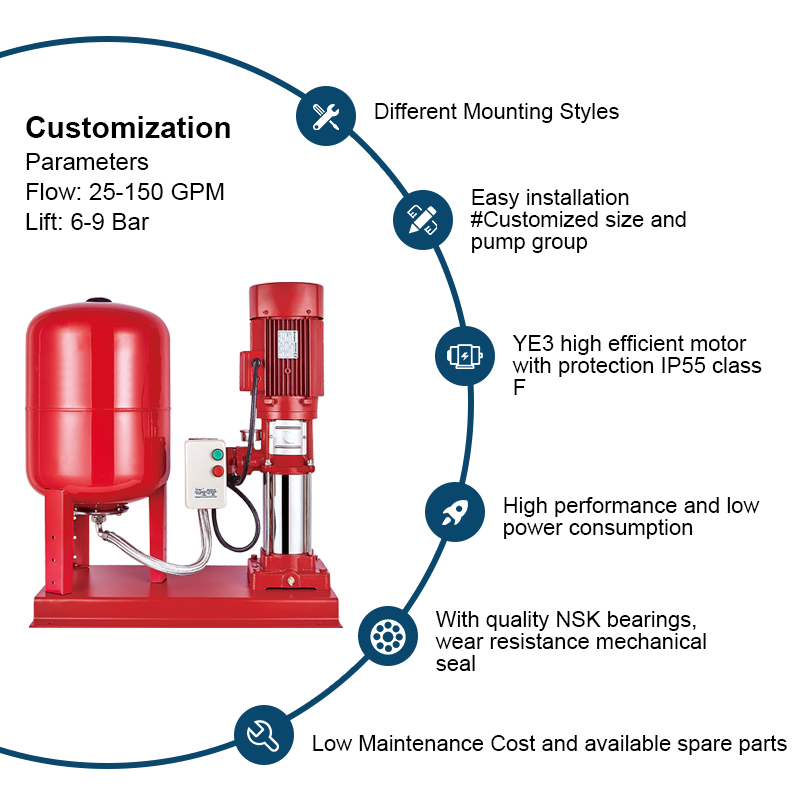

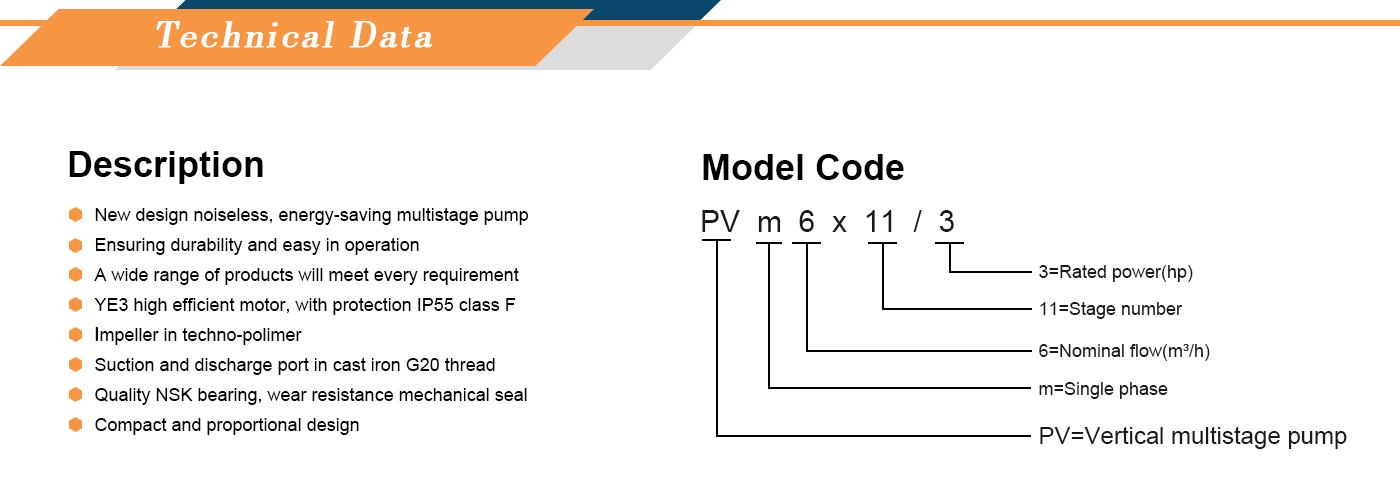

PVF series vertical multistage pump is direct coupled with YE3 high efficient motor, which is IP55 protection, class F insulation and 2pole speed.
PVF series pump use PPO high temperature resistant impeller, which can keep the performance and deduce the pump cost. The suction and discharge port of PVF series pump are G20 thread, with same diameter, cast iron material
The pressure tank's capacity is changed according to the system pressure.

Product Details

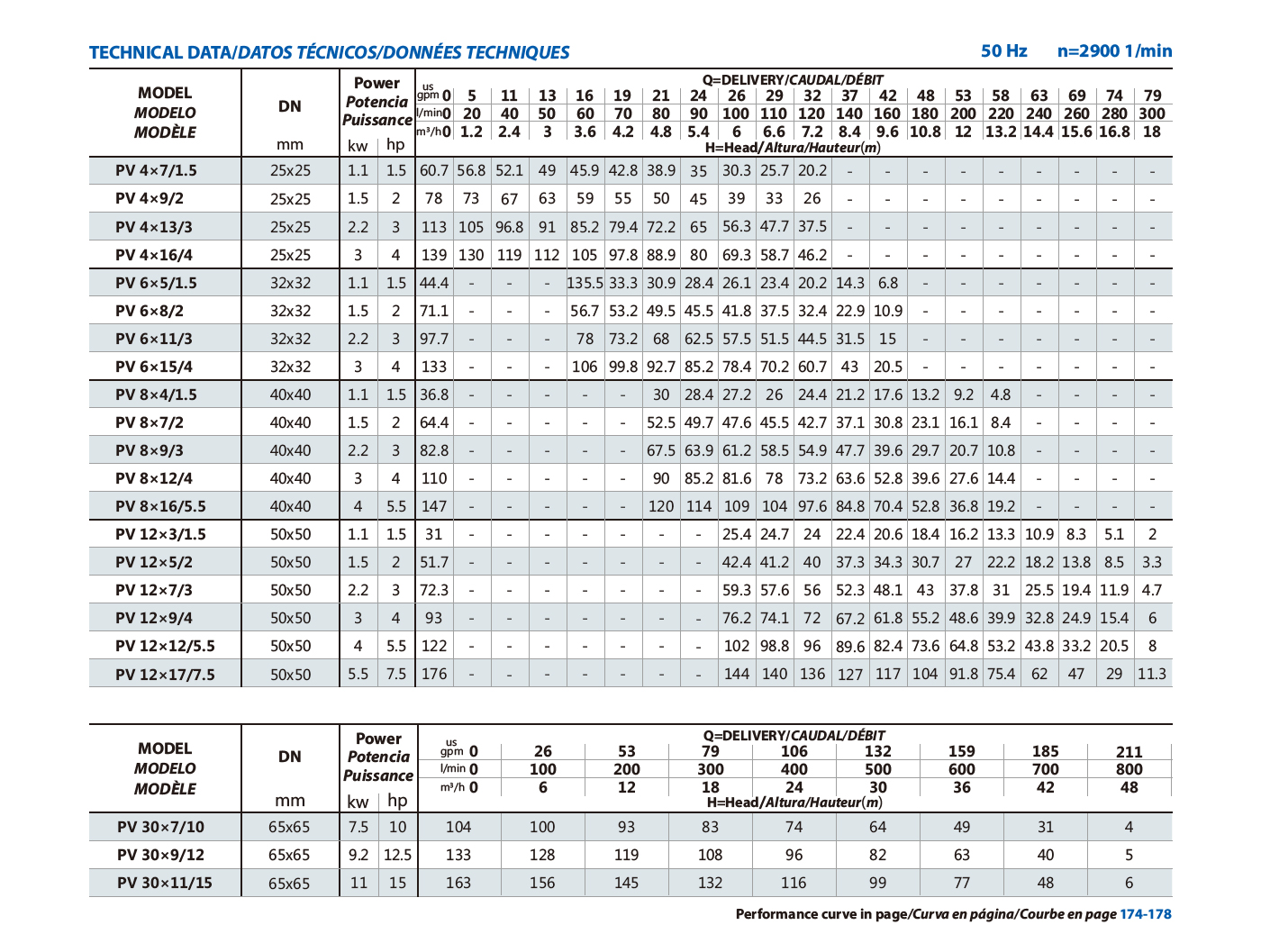

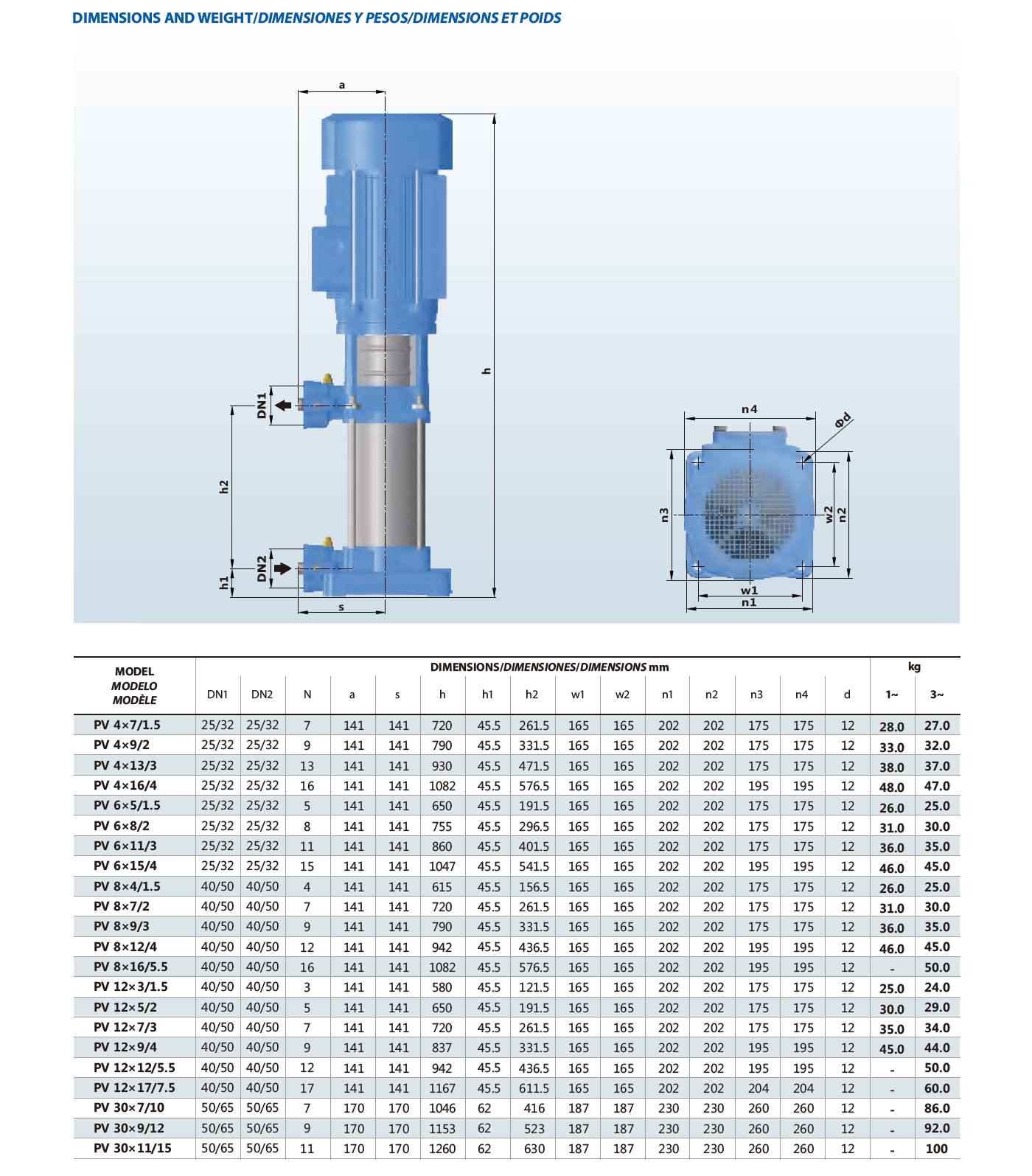

50Hz product parameter

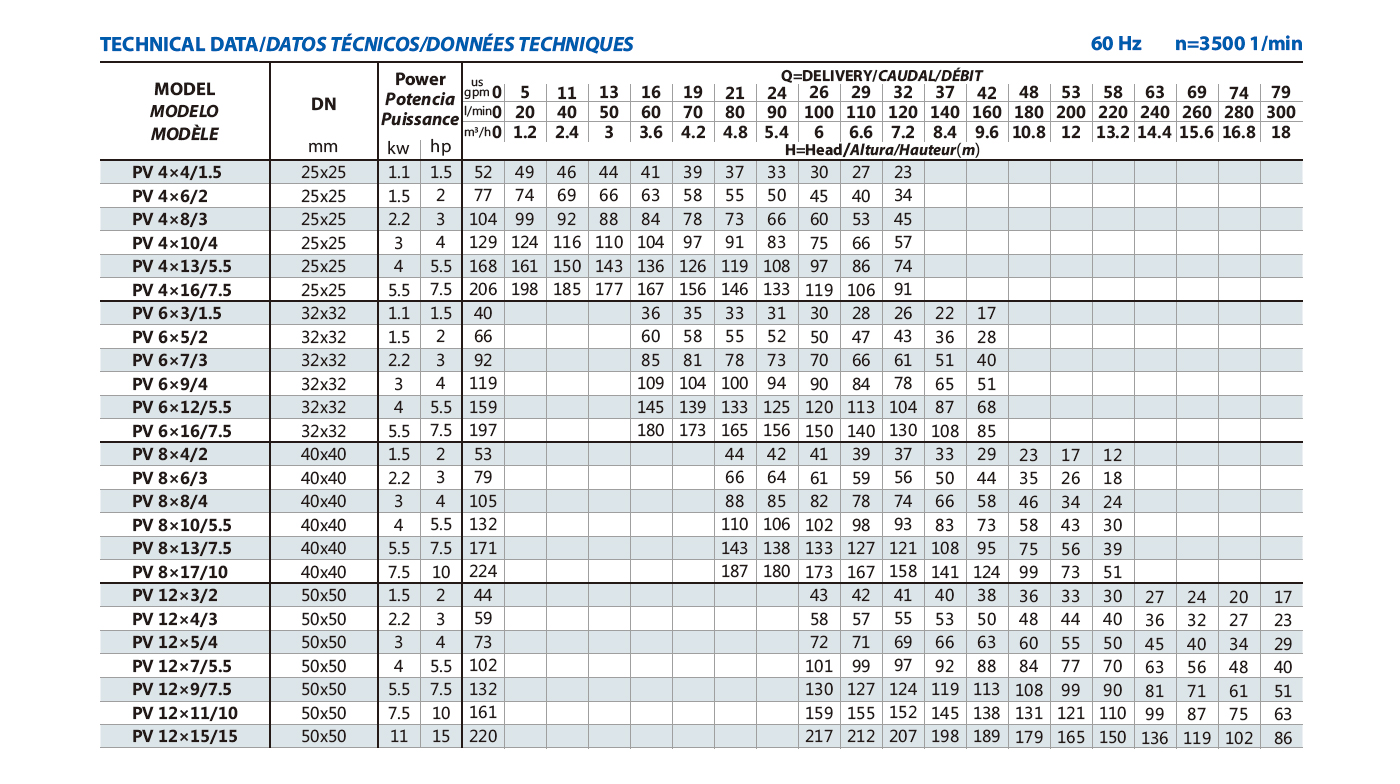

60Hz product parameter
Videos
Q&A

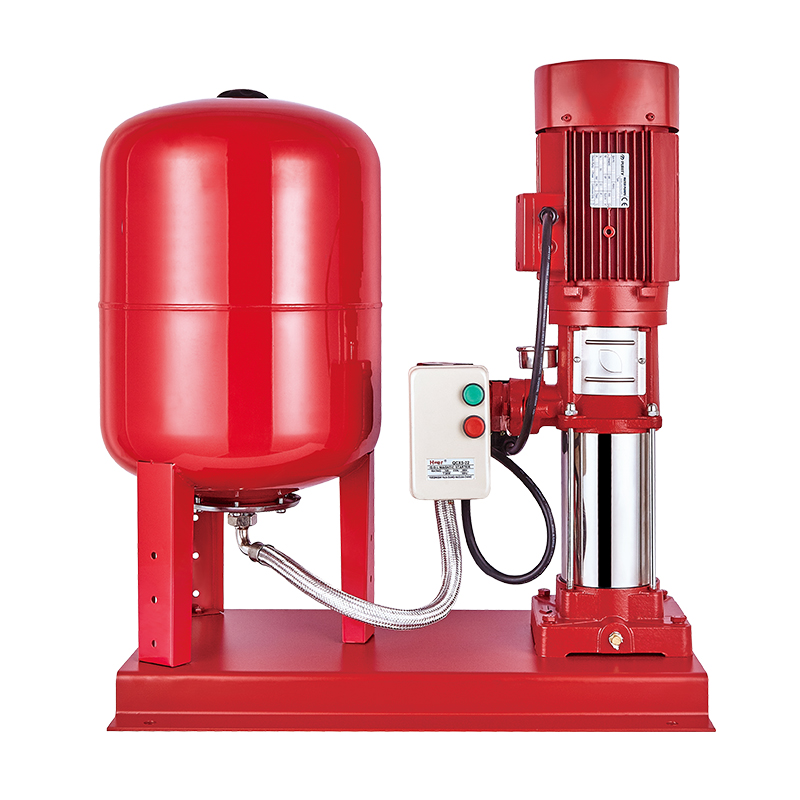

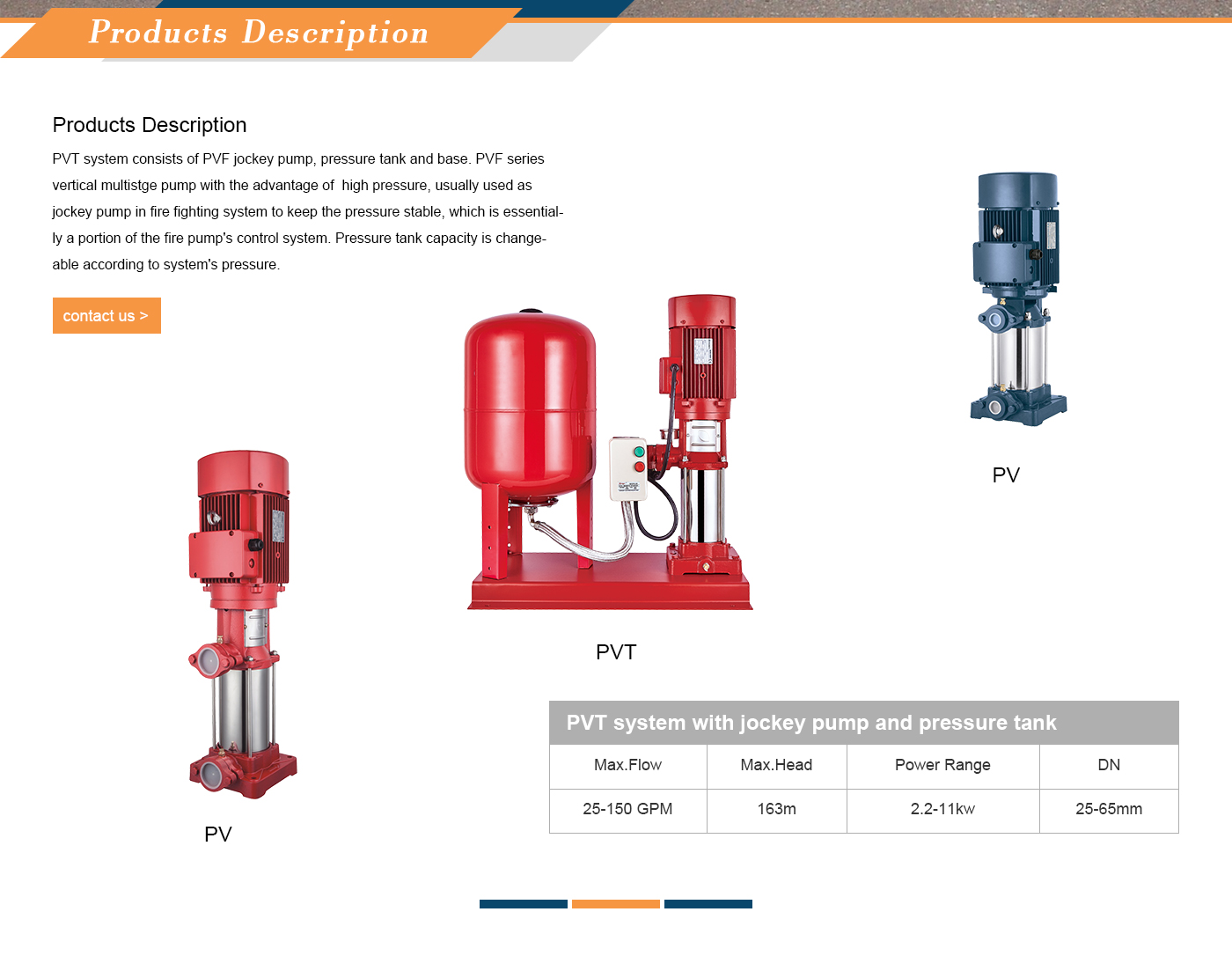

PVK system consists of PVF jockey pump, pressure tank and base. PVF series vertical multistge pump with the advantage of high pressure, usually used as jockey pump in fire fighting system to keep the pressure stable, which is essentially a portion of the fire pump's control system. Pressure tank capacity is changeable according to system's pressure.
