This product is suitable for conveying clean water without abrasive particles and liquids that are non-corrosive to the pump body material. With its compact structure,
reliable operation, and easy operation, it is particularly suitable for household applications, including but not limited to: use with small pressure systems to achieve
water supply, garden and small land irrigation, water tank pumping, and other conveying conditions where gas-liquid mixtures may exist. The product is equipped with
a flapper check valve as standard, and it is recommended to be installed in a closed environment.

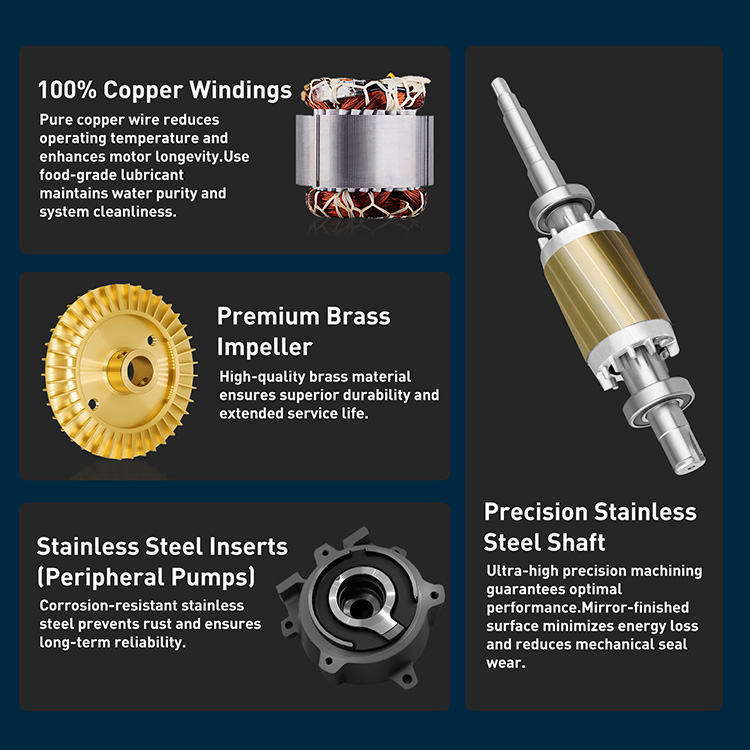

Material :
*Pump body:Cast iron,with brass/AlSl304 SS insert (if request).
*Pump cover: Cast iron (electrophoresis),with AlSl304SS insert
*Motor housing: Aluminum
*Impeller: Brass
*Motor shaft: Carbon steel,AlS| 304 SS if request.
*Mechanical seal: Ceramic/Graphite
Motor :
*Two-pole induction motor(n=2850 r.p.m)
*Insulation Class F
*ProtectionlP44
*Continuous service S1
*Thermal protector
*Single-phase 220V/50Hz,60Hz if request
Operating conditions:
*Liquid temperature up to 60°C
*Ambient temperature up to 40℃
*Total suction lift up to 9m




Applications:
1. Combined with small booster equipment to form a water supply system
2. Irrigation of courtyards and small farmlands
3. Pumping operations in water tanks
4. Other transportation scenarios where gas-liquid mixing may exis


Yeschamp is a professional manufacturer and supplier of quality pumps and engines export to more than 60 countries with competitive price.
Our main products are centrifugal pumps, fire pumps and system, industrial pumps, domestic pumps,sewage pumps,solar pumps,
irragation pumps, motors and engines for pumps. We also designed and customer-built a wide range of fire pumps sets.
Yeschamp has over 200 employees, 20 engineers, 50 technicians, 10 after-sale service workers, and 20 salesmen which can provide
our customers with one-stop full service.
Yeschamp has experienced sales team, professional technician and after-sale service team which can provide our customers with one-stop
full service.Yeschamp also has hundreds of cooperative factories and thousands of goods that can provide our clients with multiple choices,
comparable prices,good service and best quality.
Yeschamp sales staff can provide 24 Hours One-stop Service from quotation, order fulfillment to inspection, certification,freight, etc.

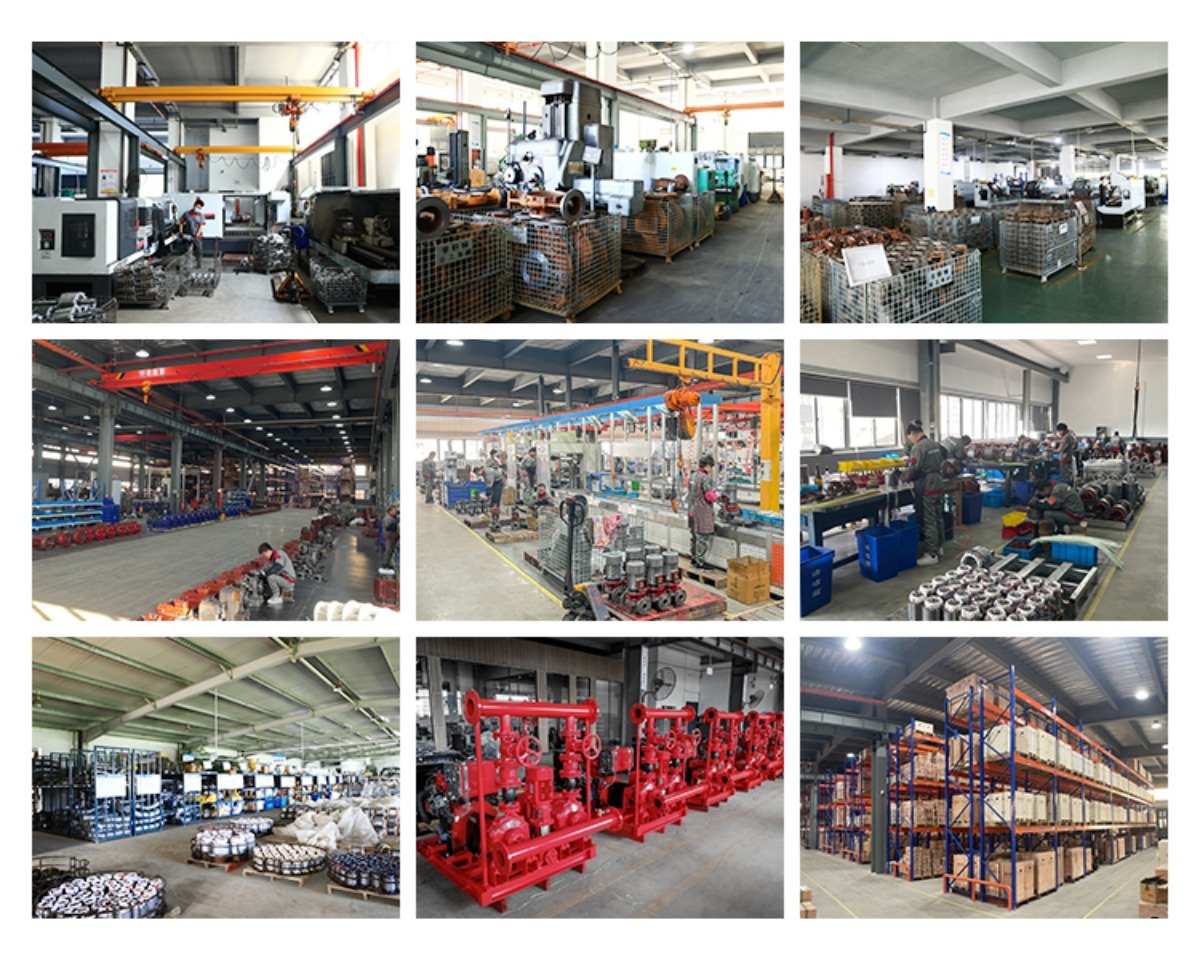

Yeschamp also has experienced QC and QA staff which ensure strict quality control and inspection. We have the latest technology
