High Precision Hydraulic Diaphragm Metering Pump

Industrial Pump

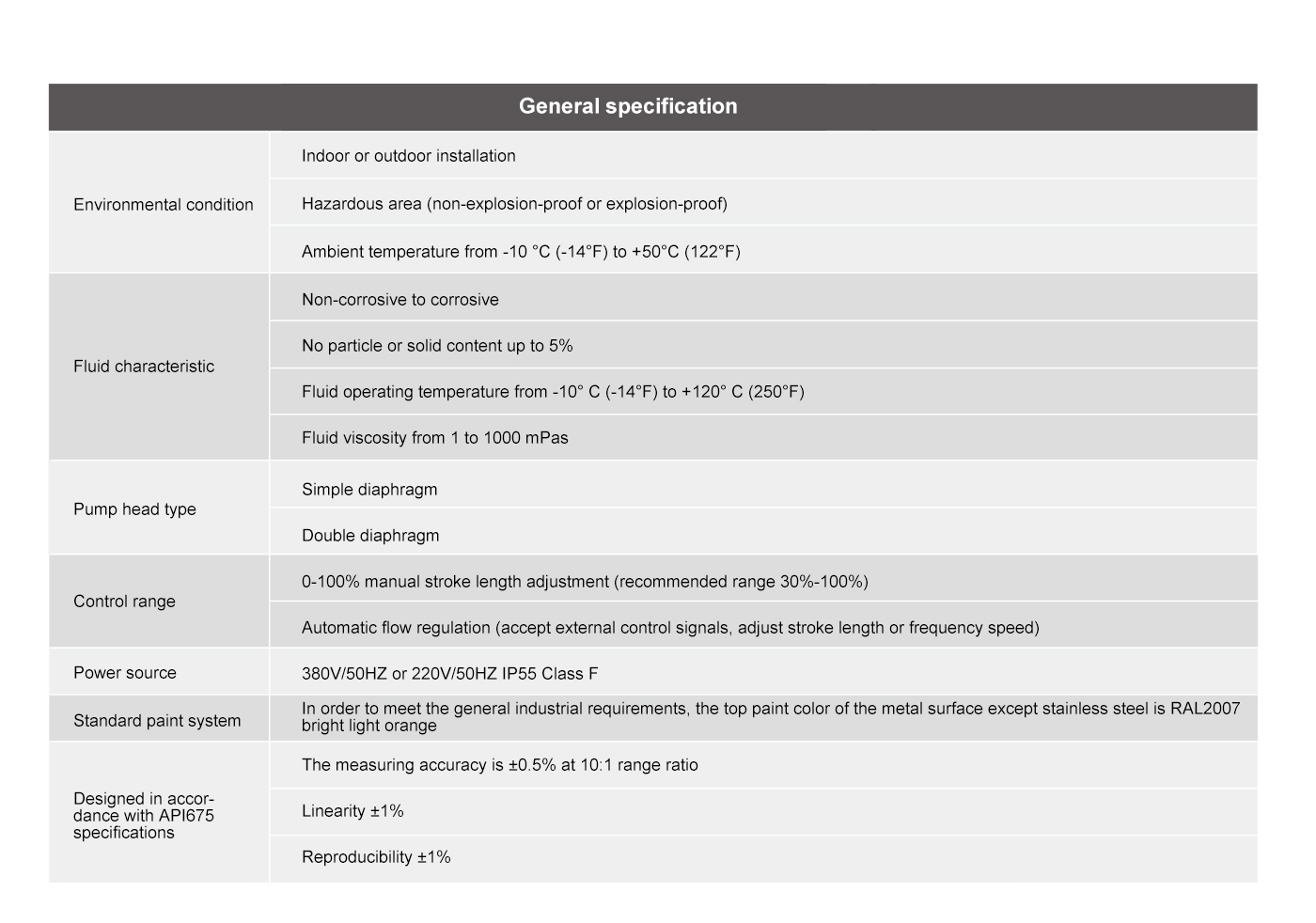

Non-corrosive to corrosive

No particle or solid content up to 5%

Fluid operating temperature from -10° C (-14°F) to +120° C (250°F)

Fluid viscosity from 1 to 1000 mPas

Chat Now Inquiry Now Add to My Favorite List Download Catalog

Product Details
50Hz product parameter
60Hz product parameter
Videos
Q&A

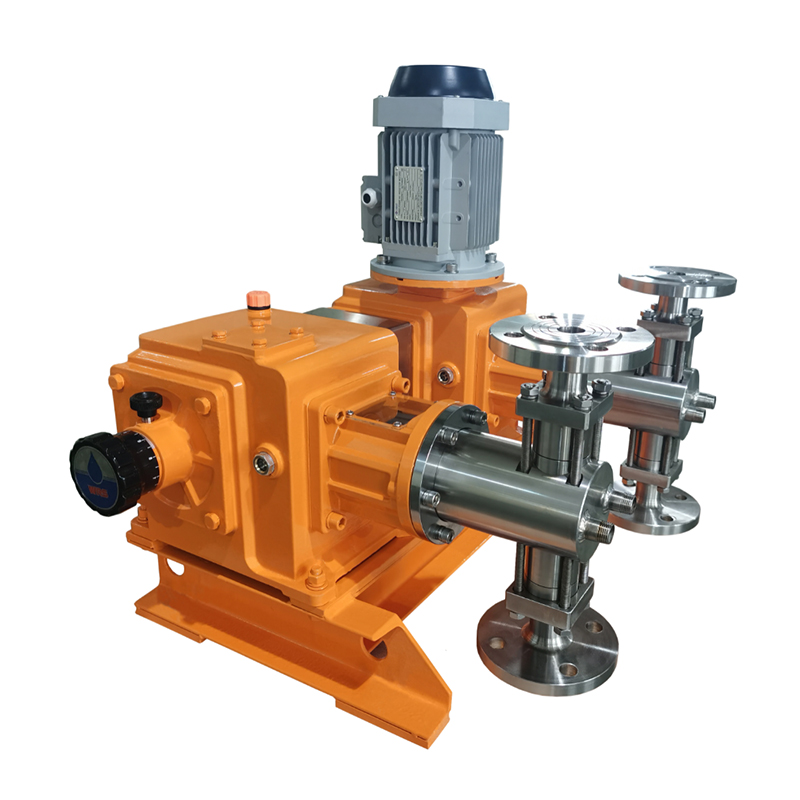

High Precision Hydraulic Diaphragm Metering Pump

TECHNICAL DESCRIPTION:

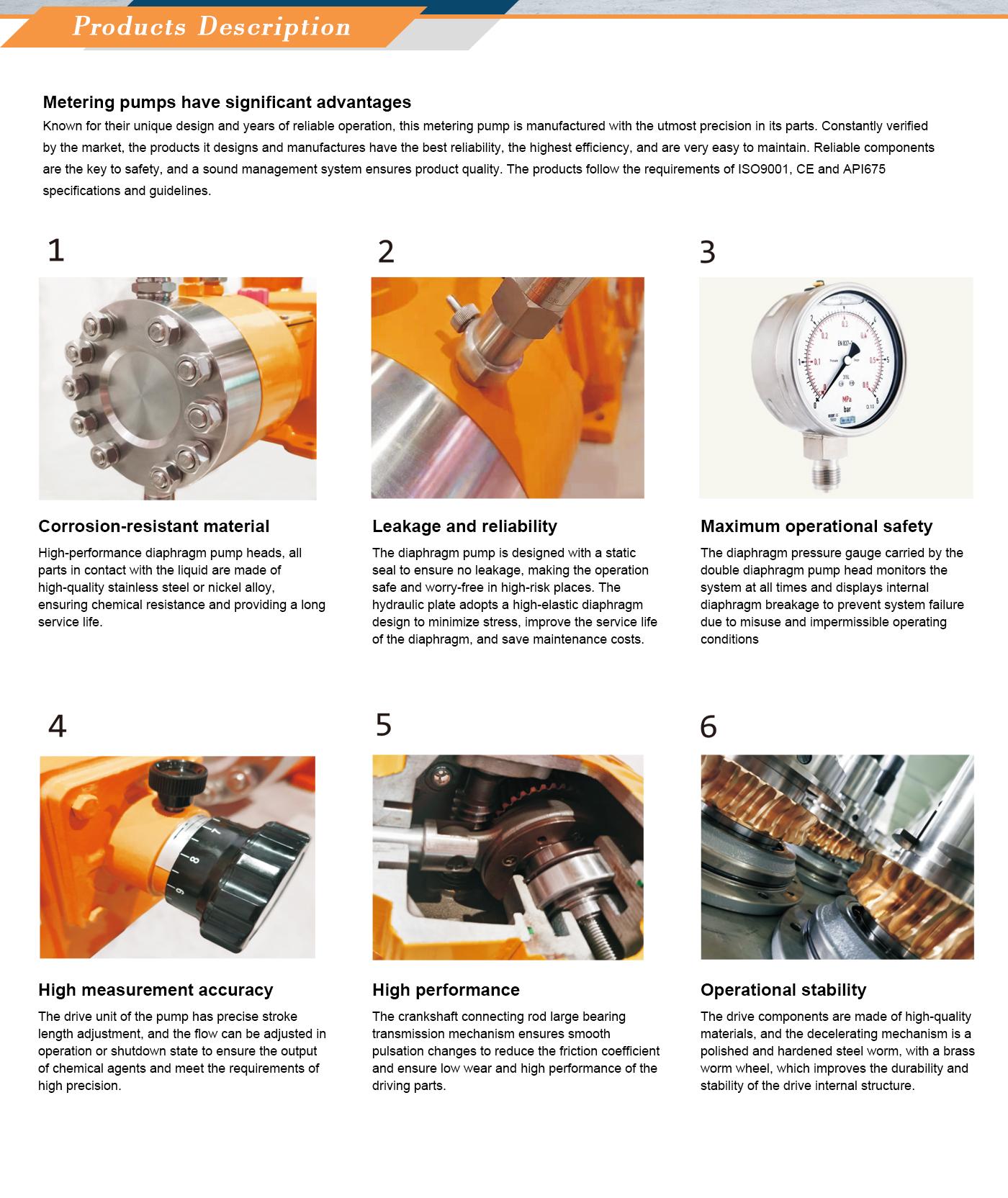

The pump cavity of this metering pump is designed with a piston, which reciprocates with a certain stroke to push a certain volume of hydraulic oil to act on thediaphragm, and the liquid is sucked and discharged through the inlet and outlet check valves to complete continuous delivery and precise delivery. add.In addition, the whole series of pumps can realize double-diaphragm rupture alarm design, combined with built-in fault detection, superior leak-proof performanceand realize double protection against flammable, explosive, highly toxic and other valuable liquids. At the same time, a single motor can drive a single head or amulti-head combination configuration, which is convenient for the efficient integration of the customer's liquid dosing system, and a variety of pump head materialsand pipeline accessories can be selected for different media that meet the needs of different working conditions.

Application：
Water treatment: dosing of various water treatment agents
Oil and gas field exploitation: wellhead injection of chemicals, such as methanol injection, corrosion inhibitor, inhibitor, etc
Natural gas processing: natural gas odorization, such as injection of mercaptan, THT, etc
Chemical industry: adding bromine, acid and organic solvent
Refining: Oil product improvement, such as adding additives, catalysts, point reduction agents, etc
Power: boiler anti-corrosion, anti-scale, such as phosphate, coagulant, scale inhibitor, oxygen removal agent, etc
Papermaking: such as pulp coloring, adding pigments, etc
Food: such as colorants, preservatives, spices, etc

Installation and operating conditions:
Dangerous areas:Explosion-proof zone 1 IIC T4 (special solutions available on request)
Ambient temperature range:-10 to +50 (special solutions available upon request)
Fluid temperature range:-10 to +120 (special solutions available upon request)

Other options: Flange connection Motor selection for high-risk or special areas Variable frequency motor Electric stroke adjustment Can be configured with multiple pump heads Supporting pipe accessories

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced High Precision Hydraulic Diaphragm Metering Pump suppliers and wholesale High Precision Hydraulic Diaphragm Metering Pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
