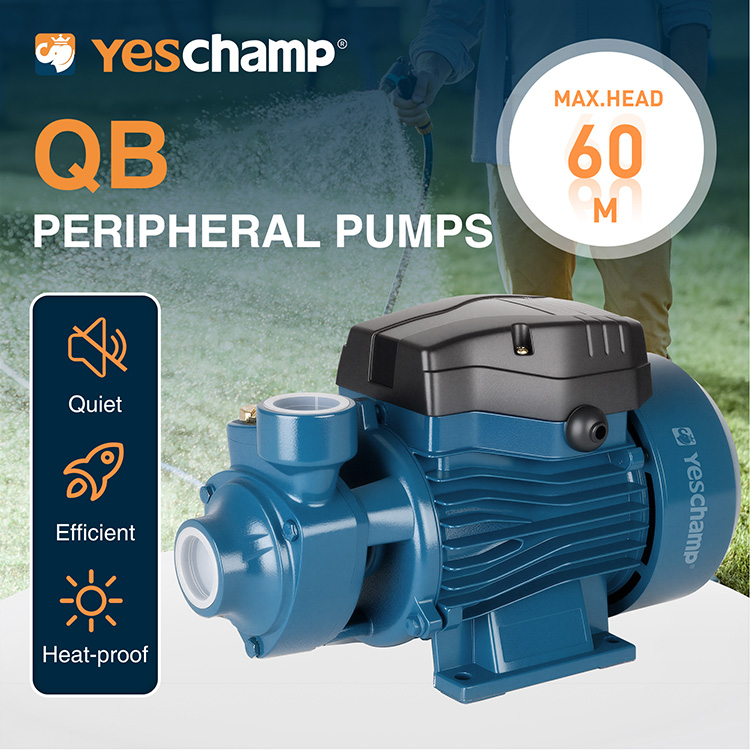

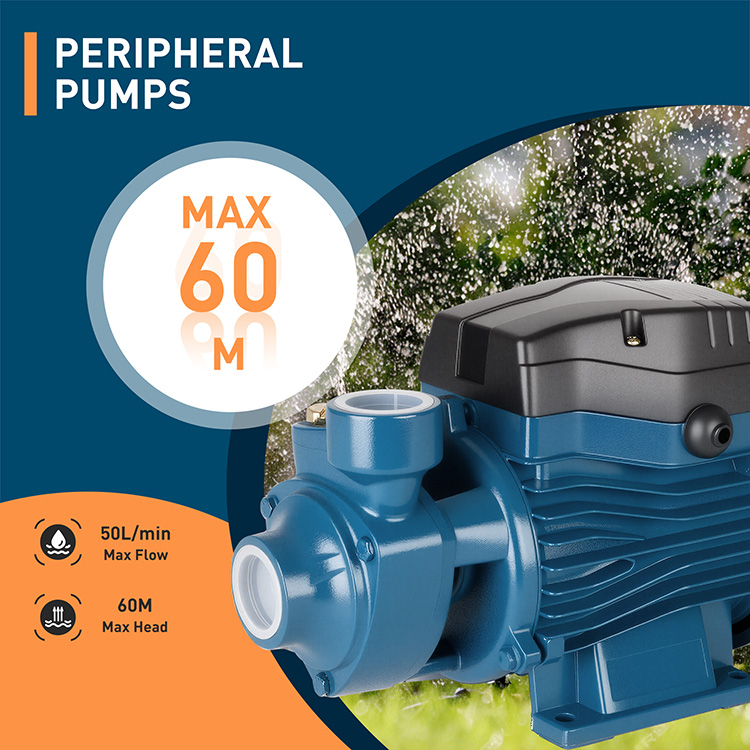

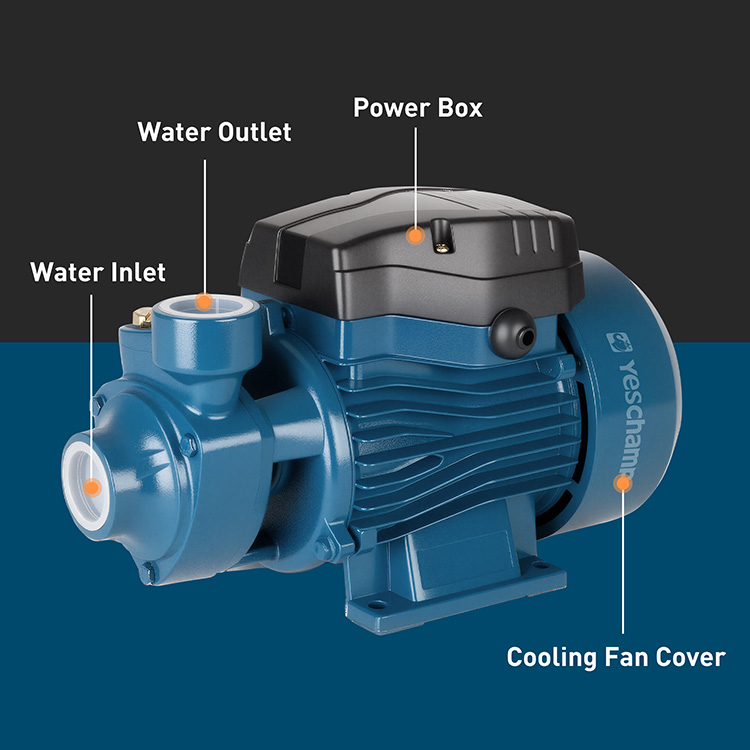

1hp Home Use Vortex Copper Wire and Brass Impeller Cleaning Water Pump

Domestic Pump

QB is with peripheral impeller containing numerous radial blades in its edge. Water is threw outwards by centrifugal motion caused by the impeller. Then the water rotates with the imeller,generate high pressure.These pumps have a compact size and are very ecomoical,they have various appearances and motor shells to the different operating requirements DN Range of Suction port: 50-400 mm (2"-16")
DN Range of Discharing port: 32-350 mm (1.5"-14")
Flow Capacity Range: 4-840 m3/h
Head/Pressure Range: 19-680 m
Power Range: 1.5-370 Kw

Chat Now Inquiry Now Add to My Favorite List Download Catalog

Product Details
50Hz product parameter
60Hz product parameter
Videos
Q&A

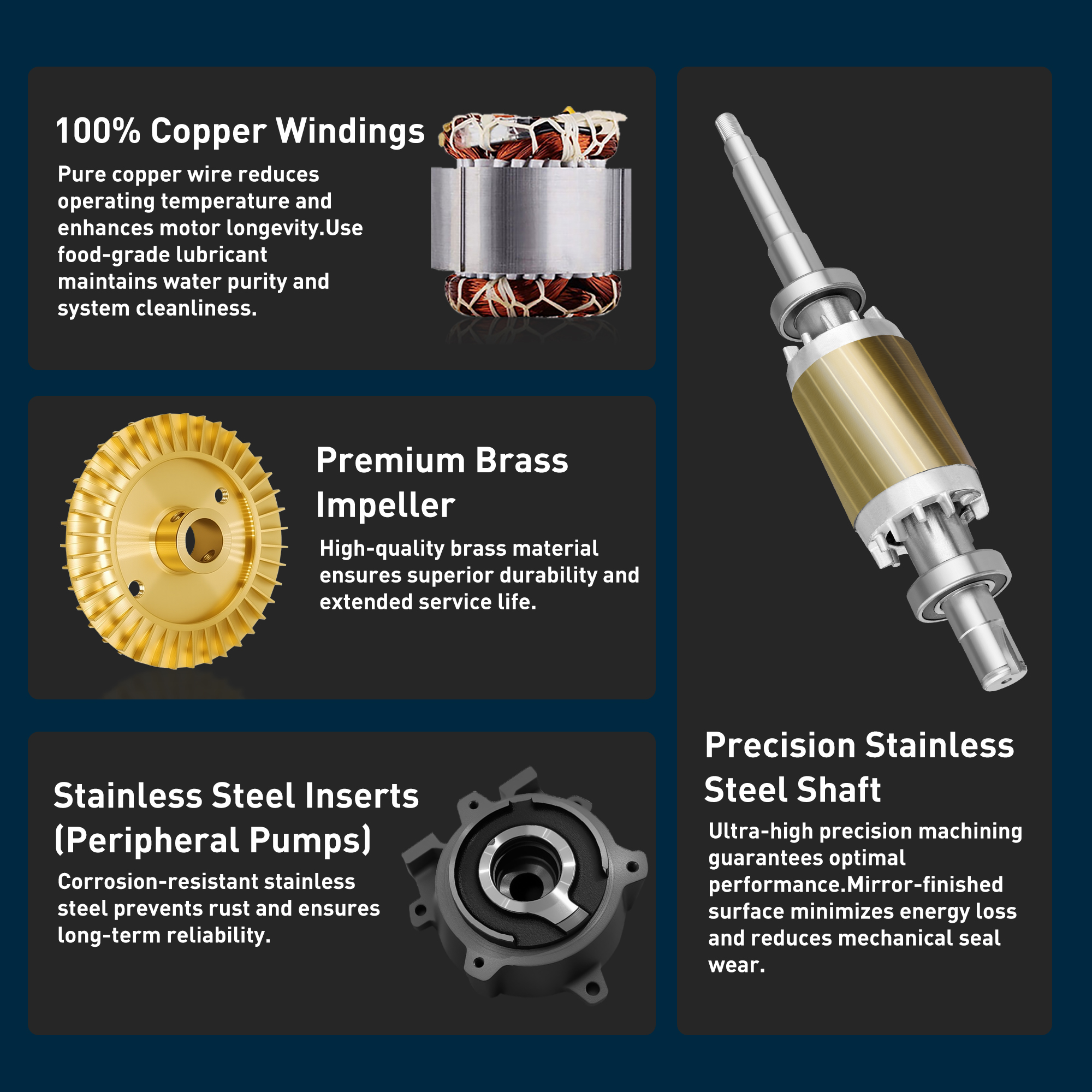

Material ： Motor :
Pump body:Cast iron,with brass/AlSl304 SS insert if request. *Two-pole induction motor(n=2850 r.p.m)
Pump support: Cast iron,with brass/AlSl304 SS insert if request. * Insulation Class F
Motor housing: Aluminum *ProtectionlP44
Impeller: Brass *Continuous service S1
Motor shaft: Carbon steel,AlS| 304 SS if request. *Thermal protector
Mechanical seal: Ceramic/Graphite *Single-phase 220V/50Hz,60Hz if request

Operating conditions:
Liquid temperature up to 60°C
Ambient temperature up to 40℃
Total suction lift up to 9m

Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials

from which the pump is made.They are easy to use and are economical,they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.The pump should be installed in an enclosed environment,

or at least sheltered from inclement weather.

Yeschamp is a professional manufacturer and supplier of quality pumps and engines export to more than 60 countries with competitive price.

Our main products are centrifugal pumps, fire pumps and system, industrial pumps, domestic pumps,sewage pumps,solar pumps,irragation pumps,

motors and engines for pumps. We also designed and customer-built a wide range of fire pumps sets.

Yeschamp has over 200 employees, 20 engineers, 50 technicians, 10 after-sale service workers, and 20 salesmen which can provide our customers

 with one-stop full service.

Yeschamp has experienced sales team, professional technician and after-sale service team which can provide our customers with one-stop full

service.Yeschamp also has hundreds of cooperative factories and thousands of goods that can provide our clients with multiple choices,comparable

prices,good service and best quality.

Yeschamp sales staff can provide 24 Hours One-stop Service from quotation, order fulfillment to inspection, certification,freight, etc.

Yeschamp also has experienced QC and QA staff which ensure strict quality control and inspection. We have the latest technology and quality

 products allowing us to give our customers the best service. We also focus on the feedback of all clients to ensure
that equipments supplied are efficiently running and properly used. With the tenet of ‘Innovation, High Quality, Customer Satisfication’, we are

striving for the top-ranking brand of pumps and engines. And we are dedicated to the continual improvement of our customer service, products

and credit. Our target is to solve all the problems from our customers and make the best choice for them.

We have ISO, CE, CCCF, CB certificates, and we are preparing for UL at present. And we can make certificates like PVOC, PCOC, and SONCAP to help our clients with clearance. YesChamp is advanced 1hp Home Use Vortex Copper Wire and Brass Impeller Cleaning Water Pump suppliers and wholesale 1hp Home Use Vortex Copper Wire and Brass Impeller Cleaning Water Pump manufacturers, have been export to more than 60 countries with competitive price. OEM/ODM order? Pls contact us for design details, and we will quote you reasonable prices and make samples for you ASAP. We have R&D team.
